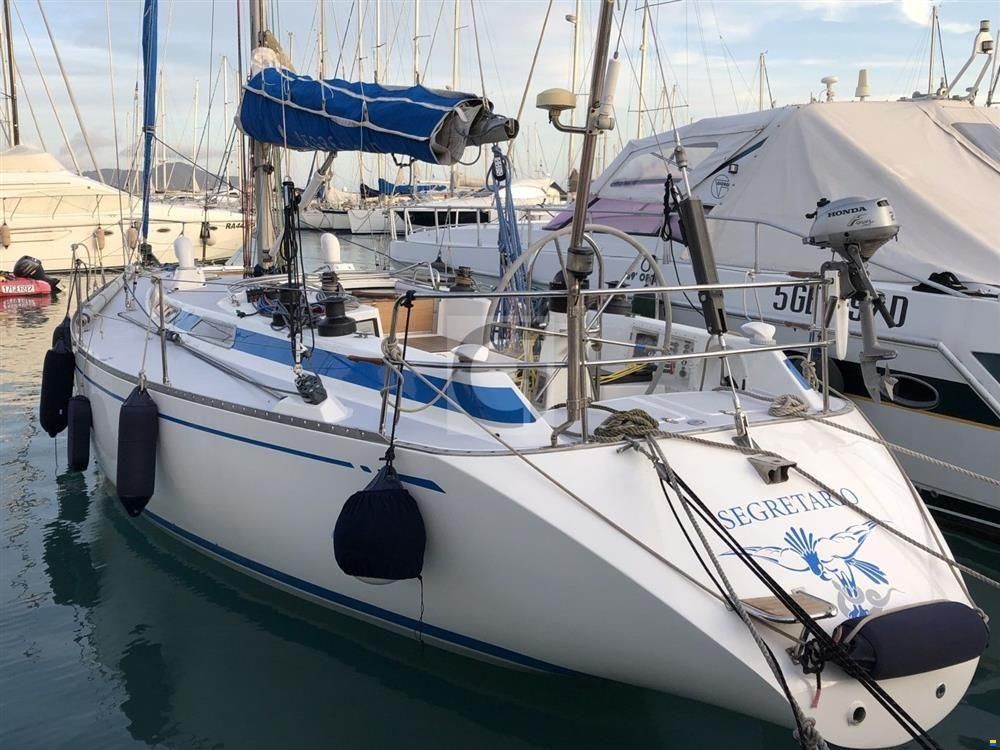

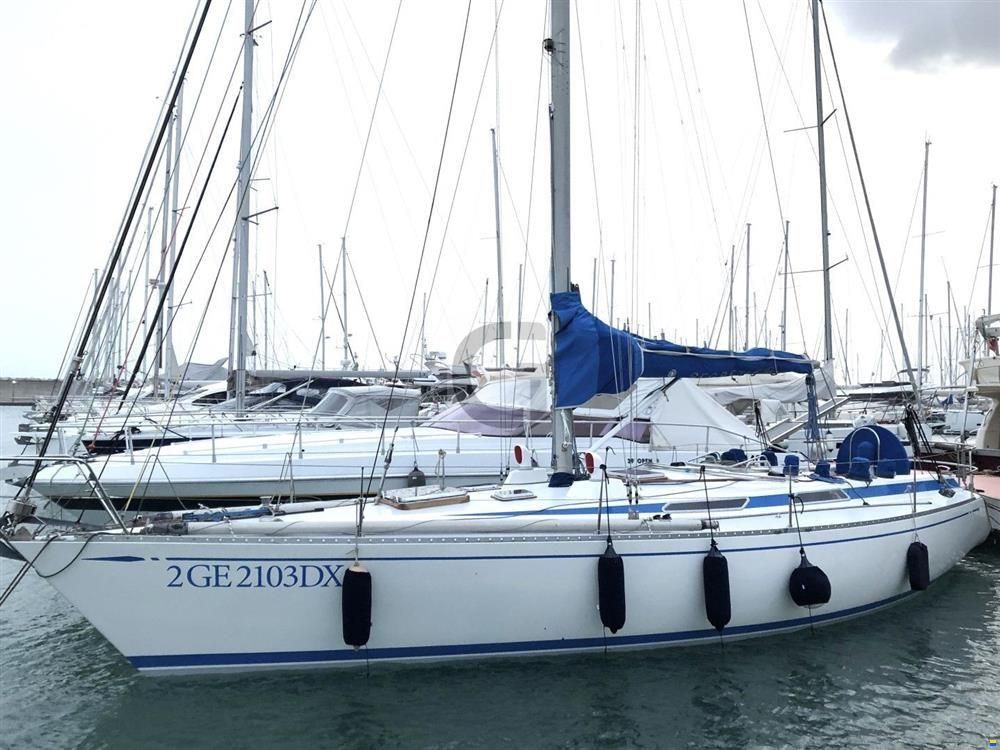

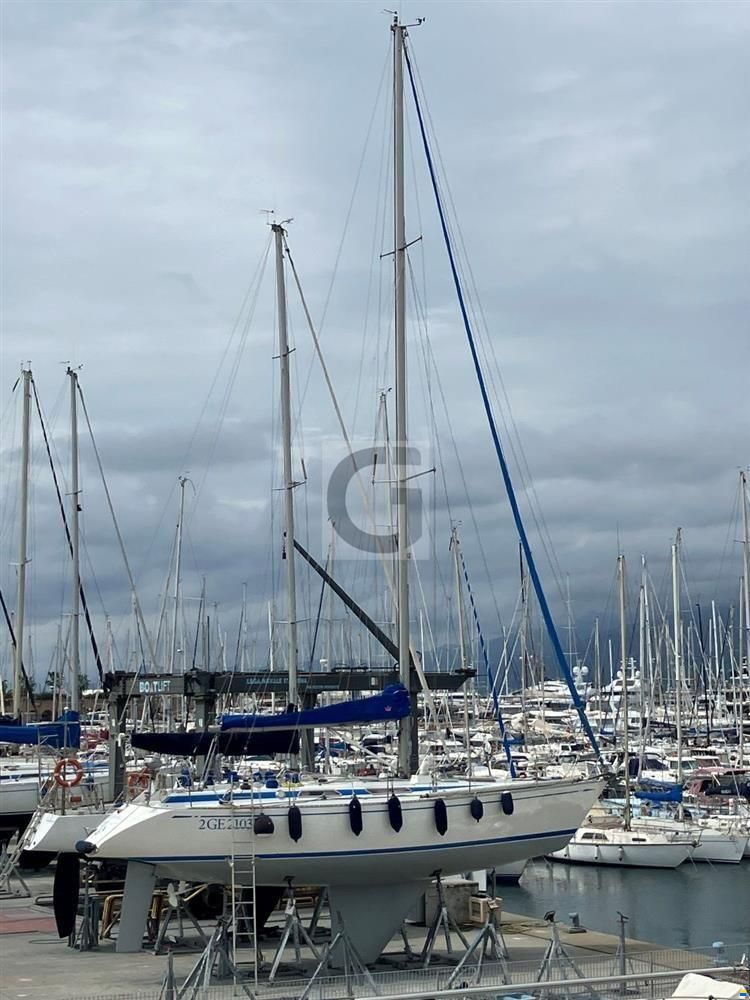

1979 Nautor Swan 39, EUR 90.000,-

1979 Ron Holland-designed Nautor Swan 39 cruising version, in same ownership since 1983 and with substantial recent refit.

FURTHER BROKER’S COMMENTS:

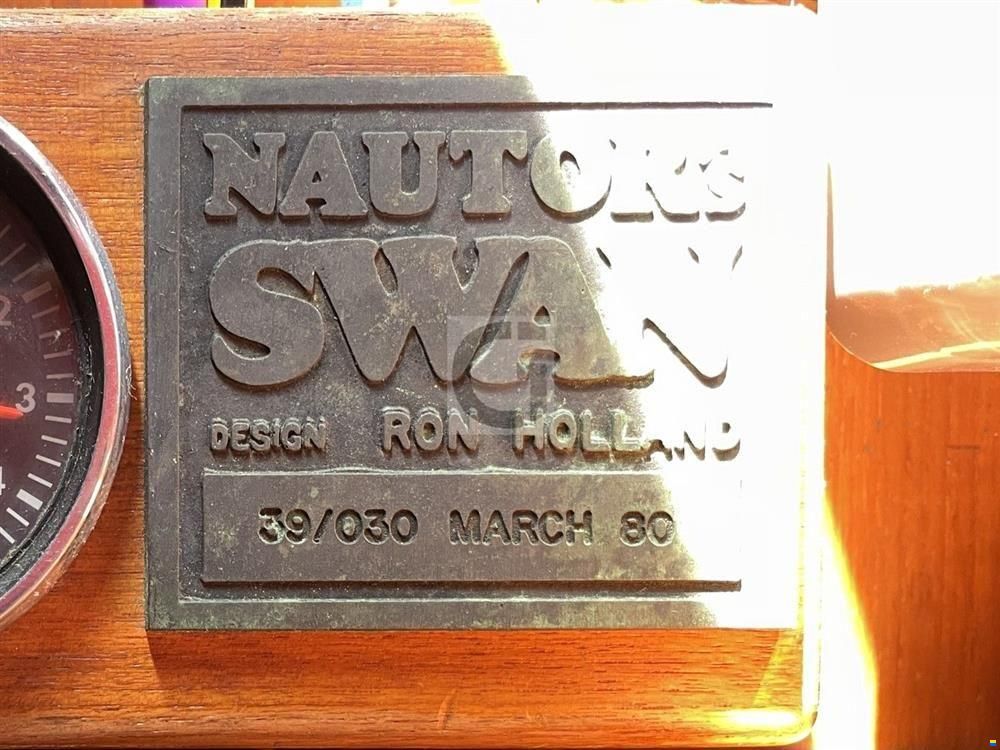

Ron Holland-designed Swan 39, launched in 1979 as hull nr. 30 of the highly successful Swan 39 series constructed by Nautor in Finland. With 12 Swan 39’s delivered as IOR-optimised Swan 39R ‘racing variants’ and a further 21 launched as a more conventional fast cruising variant, SEGRATARIO is one of the last cruising versions to be delivered. Purchased from her original owner by her current owning family in 1983, she has remained a much-cherished part of the family, benefitting from a substantial refit in 2024, costing in excess of her current asking price.

2024 REFIT HIGHLIGHTS:

New hull and deck paint
New 10mm cockpit sole and seats teak

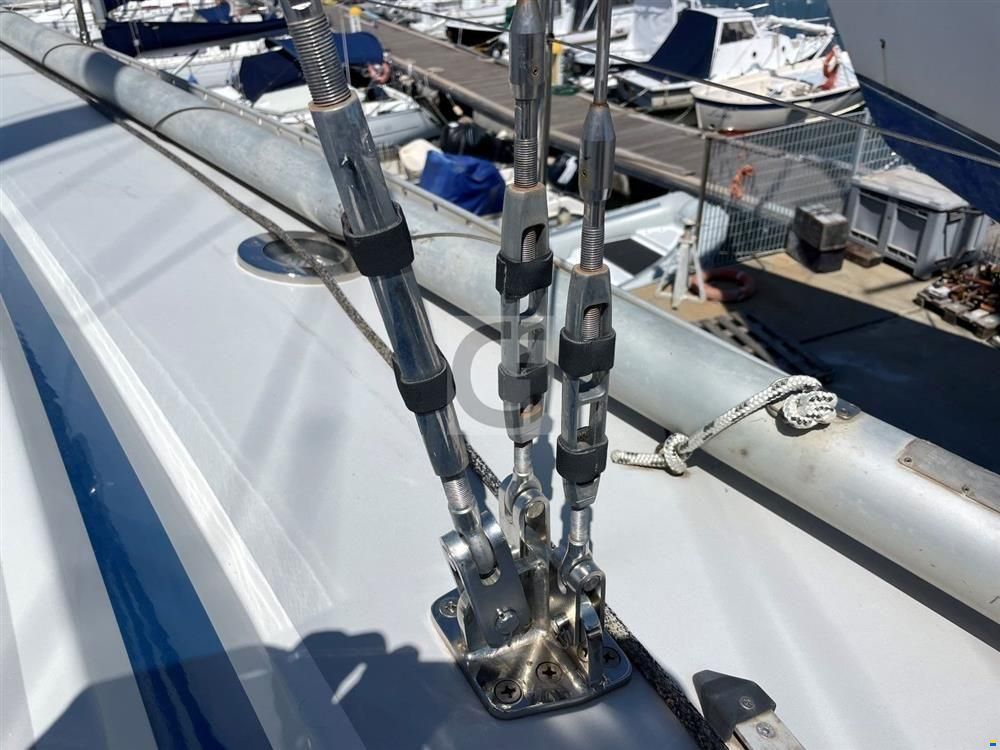

New rod Nitronic 50 standing rigging and new tensioners
New 10mm Dyneema running rigging
4x new plexiglas hull windows
2x new plexiglas hantches windows
Steering columns repainted
New leather cover for the steering wheels
New rudder bearings
New Jabsco manual WC
Winches serviced

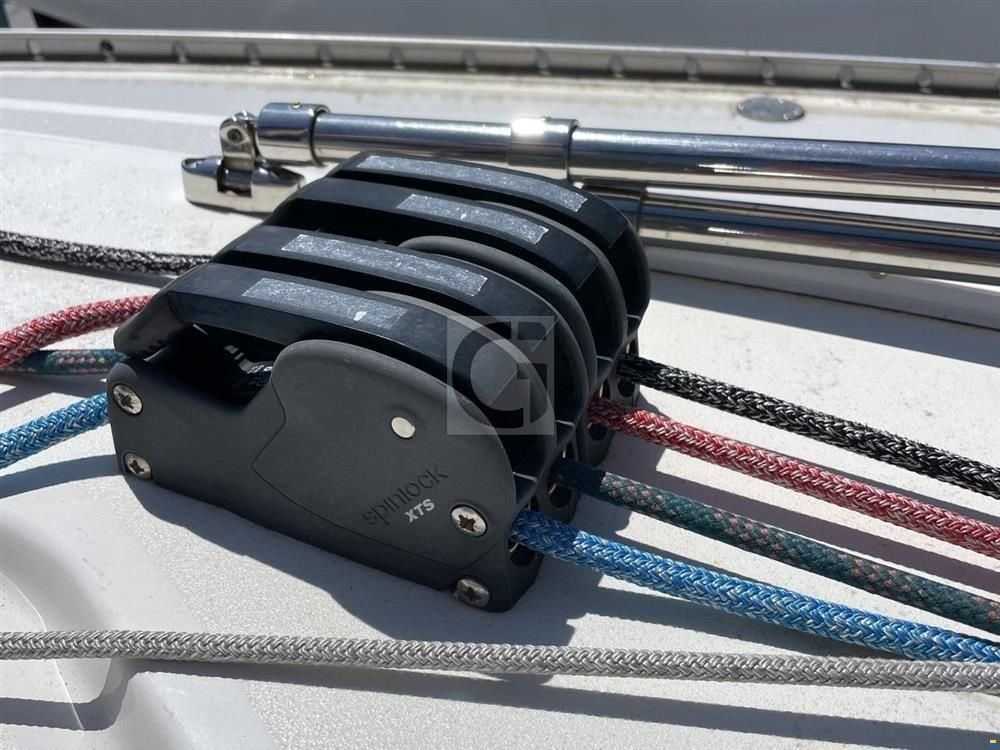

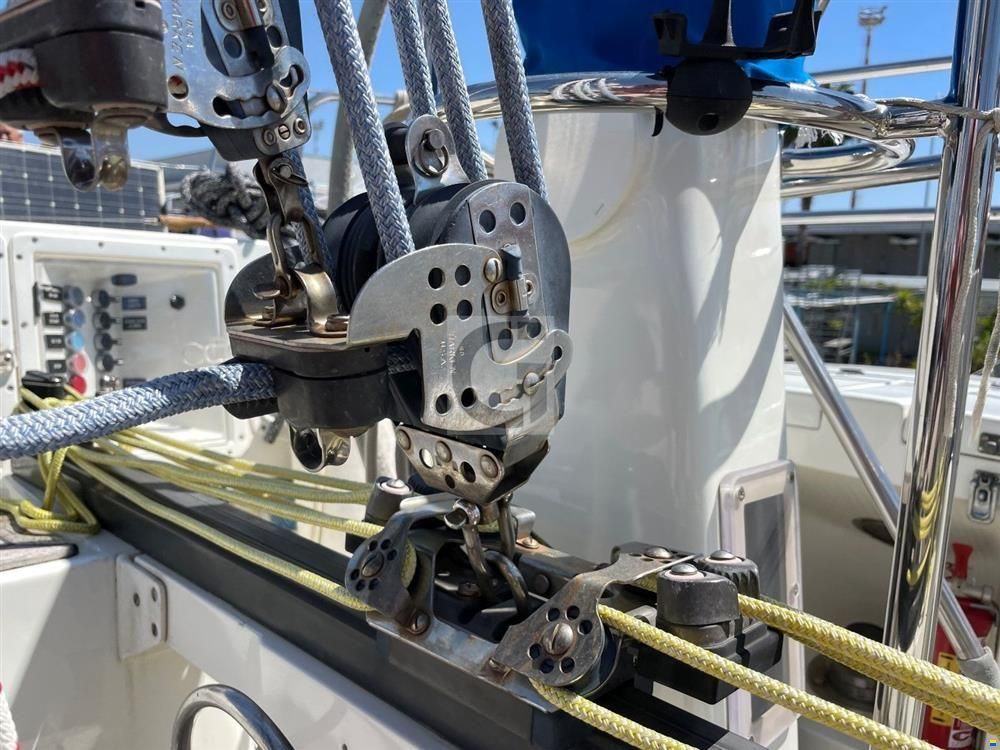

New Spinlock stopper on the coach roof
All new seacocks
All new sea-water pipes replaced including engine exhaust pipe
Backstay serviced
New LED interior lights
Suunto compass serviced
New wind instruments sensor
New LED navigation lights
New VHF antenna
New light wirings

OWNERS’ COMMENTS:

SEGRETARIO was purchased by our father in 1983, it has been part of the family since and has been our trustworthy companion in many regattas and great vacations across the Mediterranean. As our parents passed away years ago, and as we three brothers have grown older, each of us with his own plans and obligations, we now look for a new owner interested in cherishing SEGRETARIO and taking it to new adventures.


SPECIFICATIONS
CONSTRUCTION

RCD Status:
RCD Status: Our understanding is that the yacht is exempt from the essential safety requirements of Directive 94/25EC (Recreational Craft Directive) as she was built and placed into use within the EU prior to 1998.

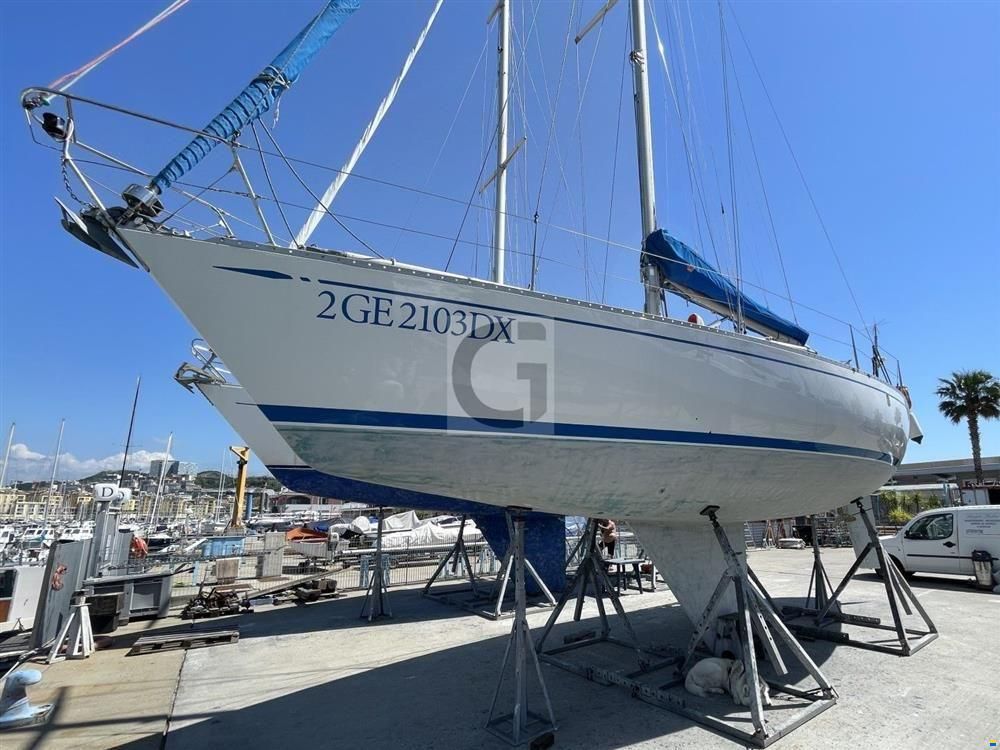

Hull Construction:
GRP laminate hull construction.

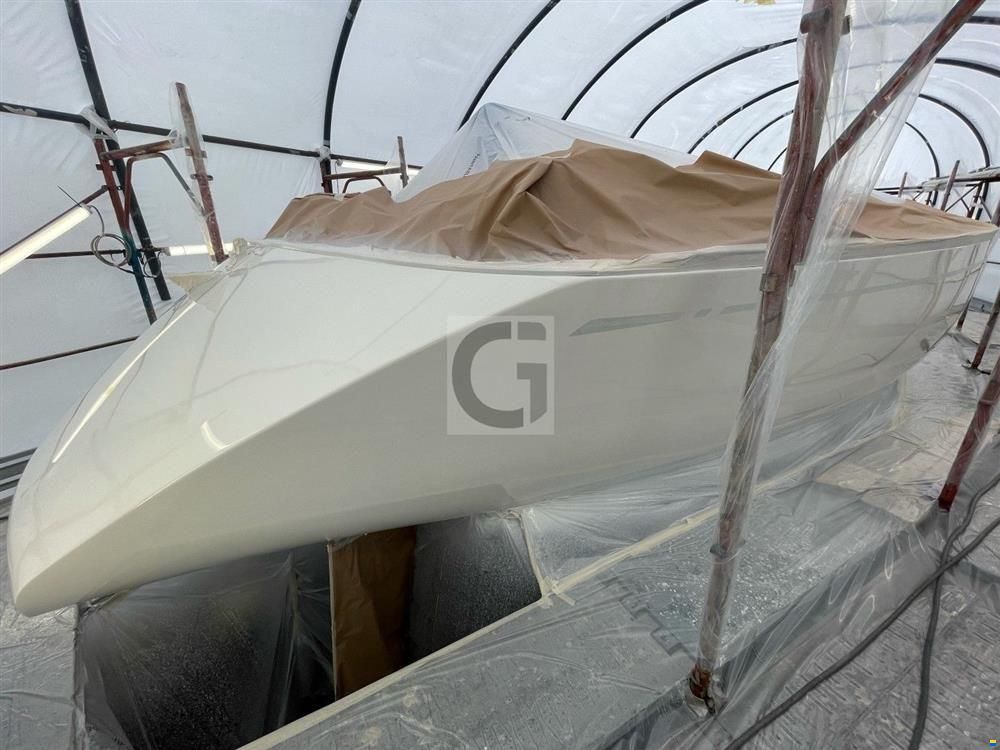

Hull above water line repainted with Stoppani gloss pain cycle - 2024

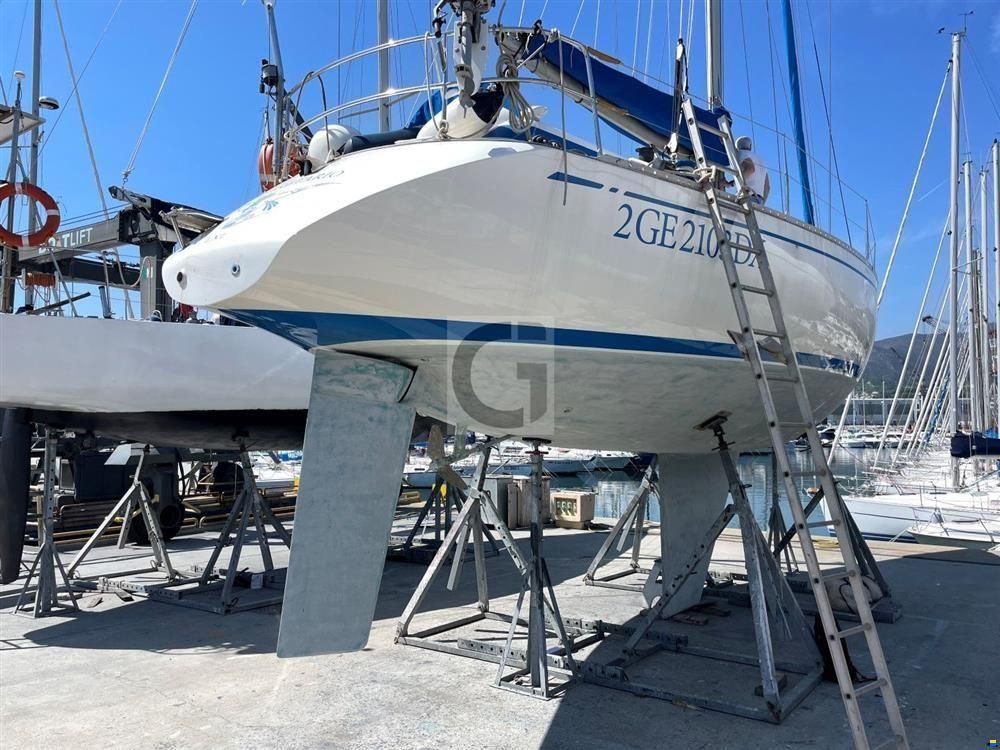

Hull below water line sanded down to original gelcoat, 4 layers of new International Gelshield 200 epoxy base treatment and 3 layers of antifouling – 2024 (subsequently new antifouling on yearly basis)
International YBA 072 antifouling Grey – 2026

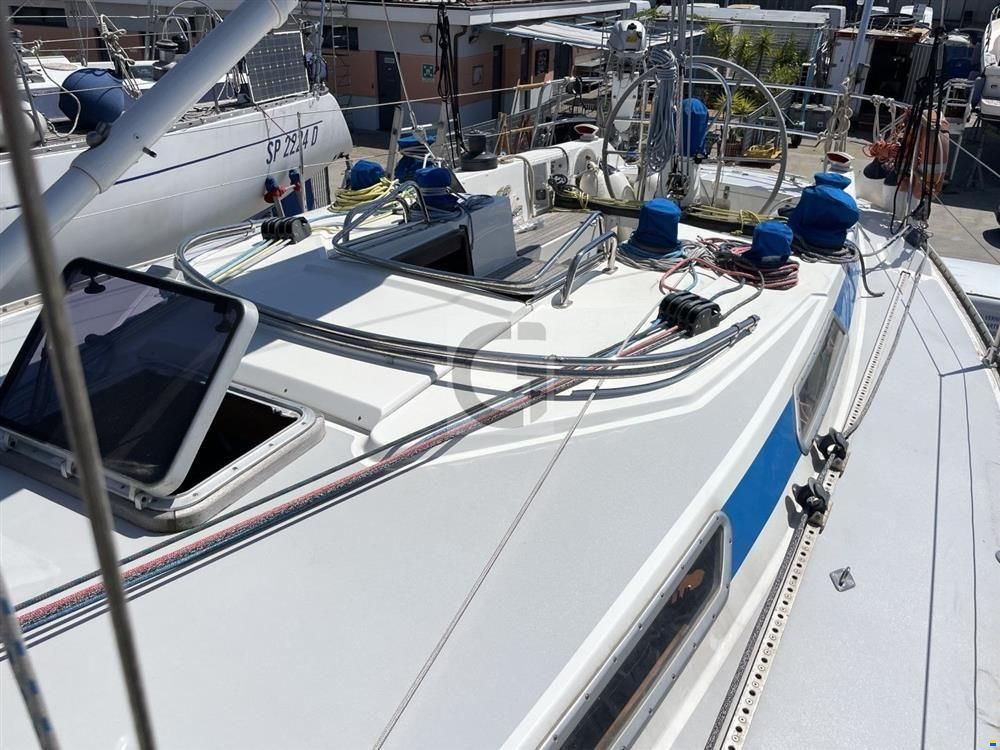

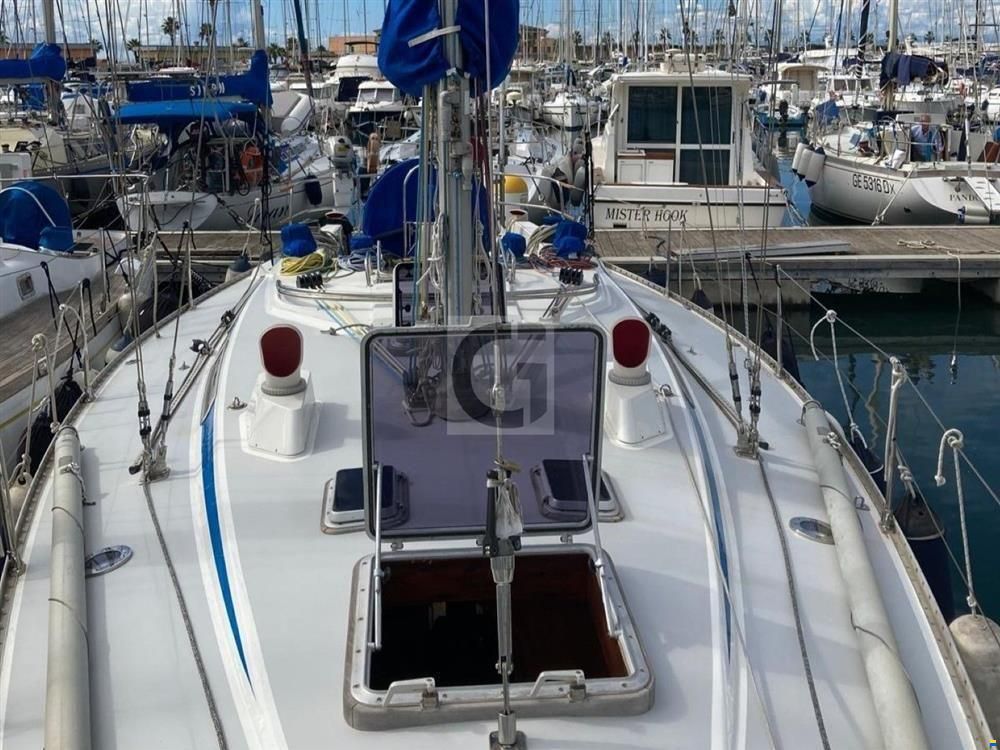

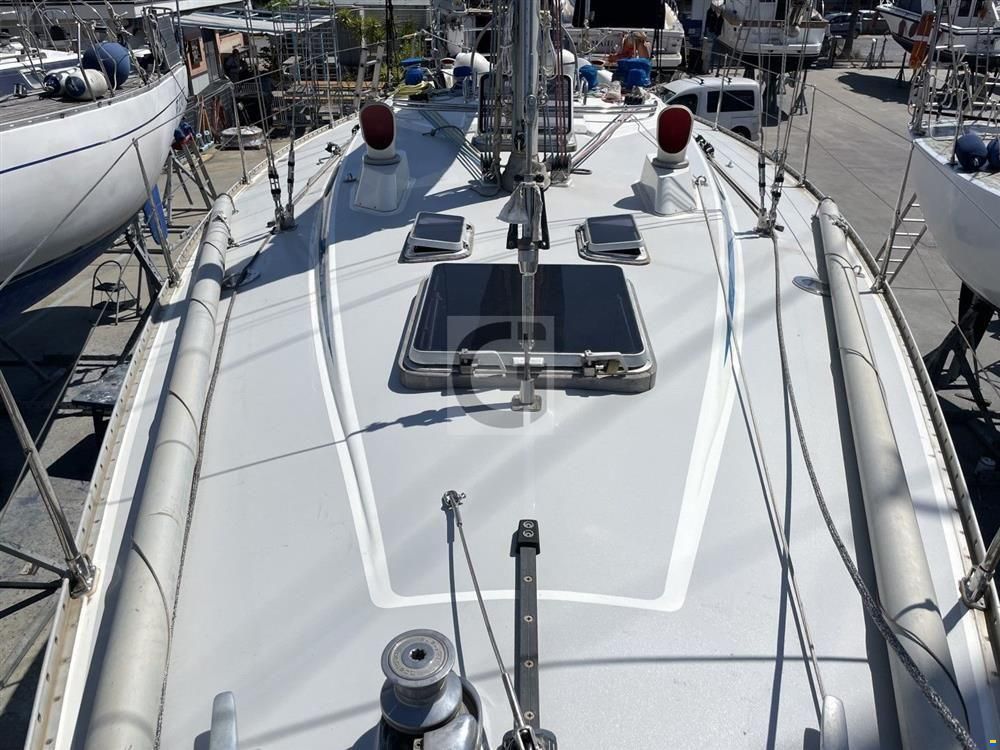

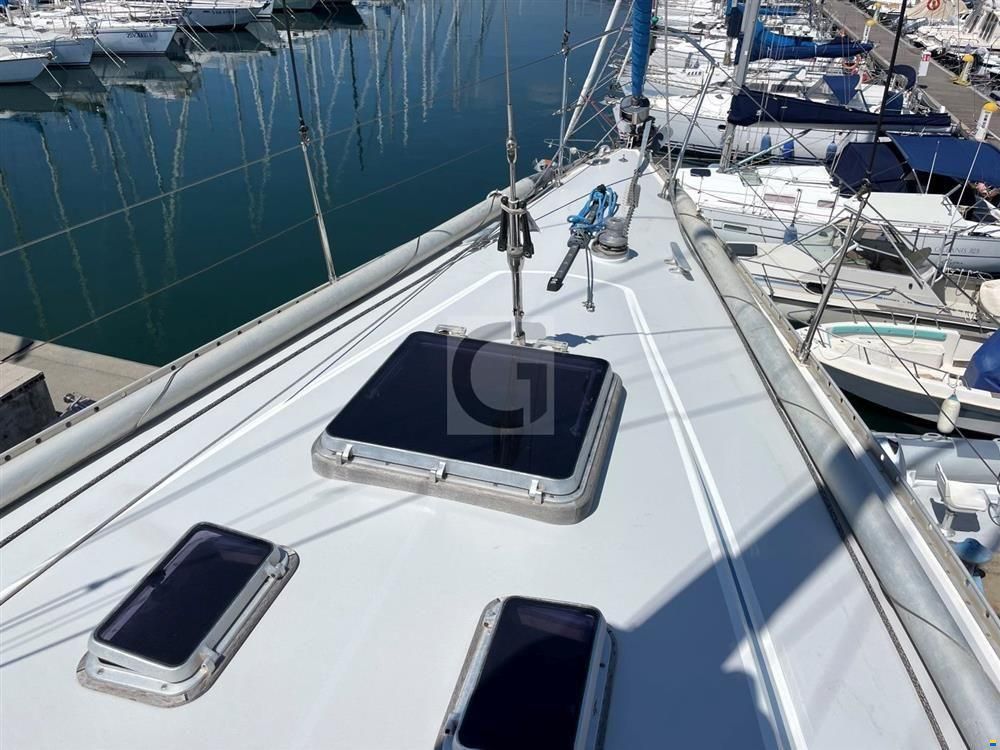

Deck & Superstructure Construction:

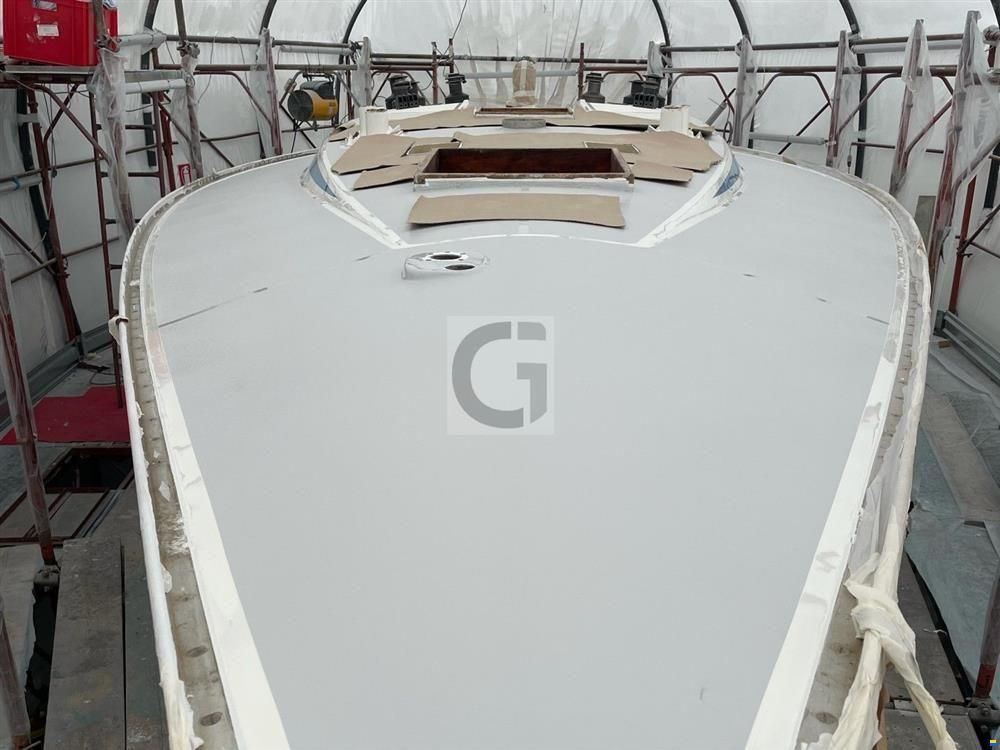

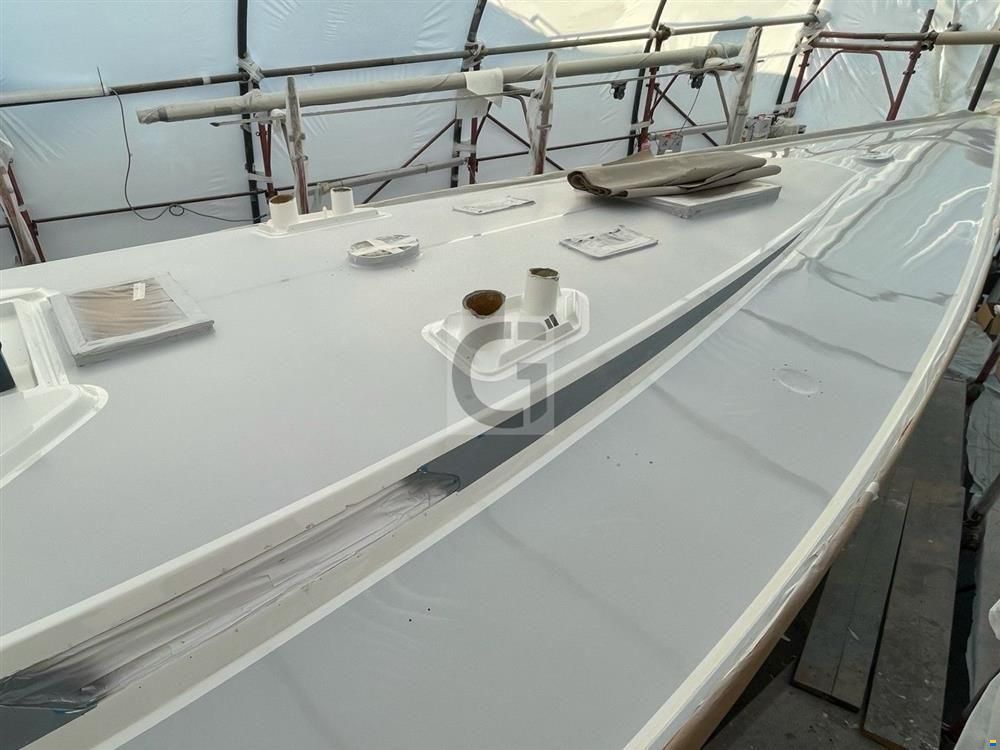

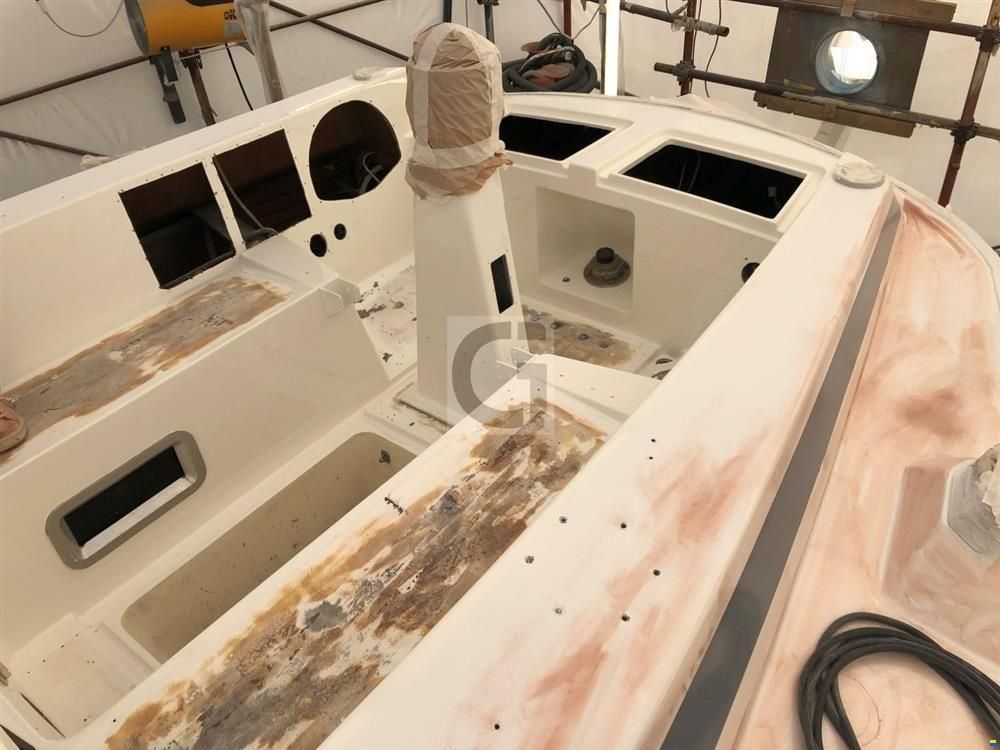

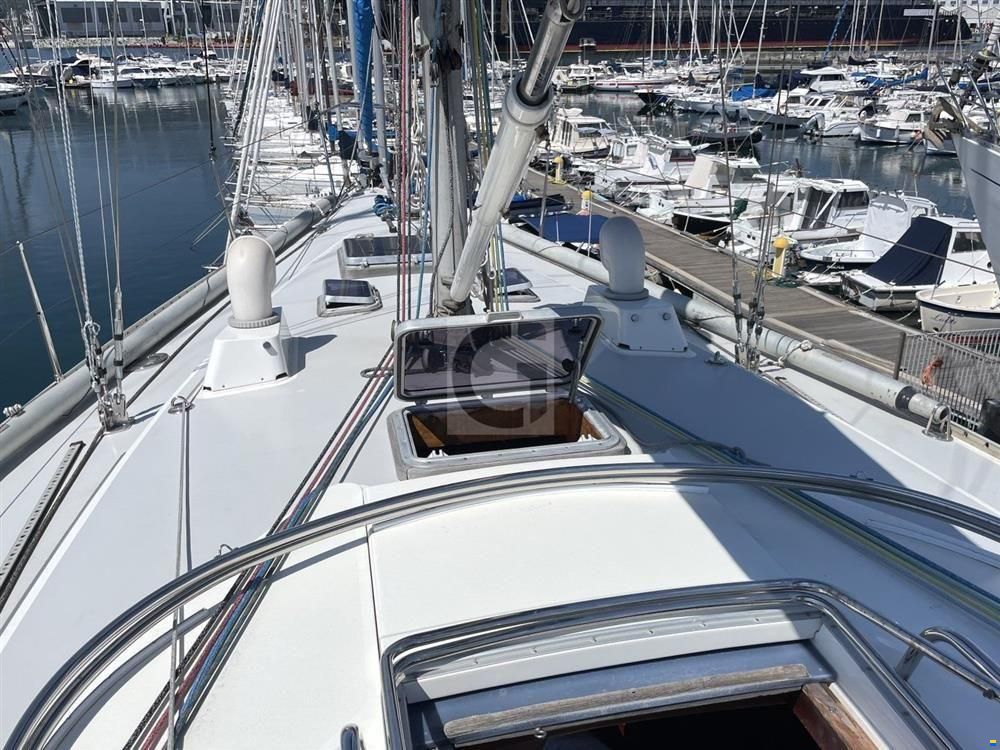

GRP deck with antiskid painted – 2024
“Standard” cruising version hatches.

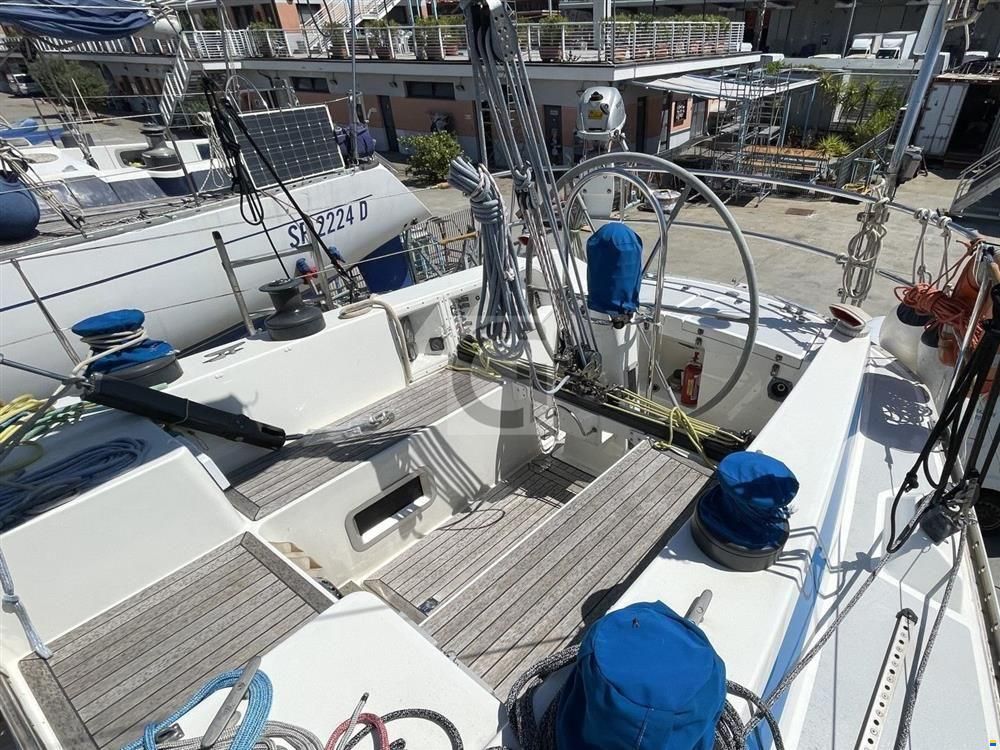

The teak to the cockpit seat bases and sole was replaced – 2024.

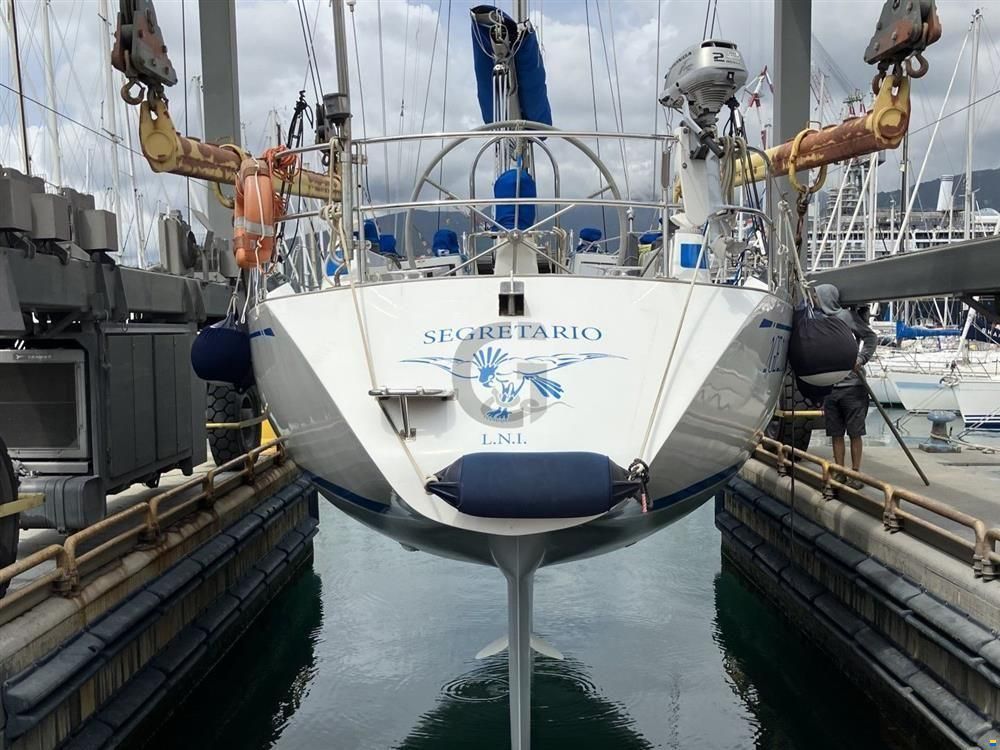

Keel & Rudder:
Fin lead keel
Cast-in keel bolts are of high-tensile stainless steel.
The rudder blade is GRP and supported by a short skeg.

MACHINERY

Engine & gearbox:

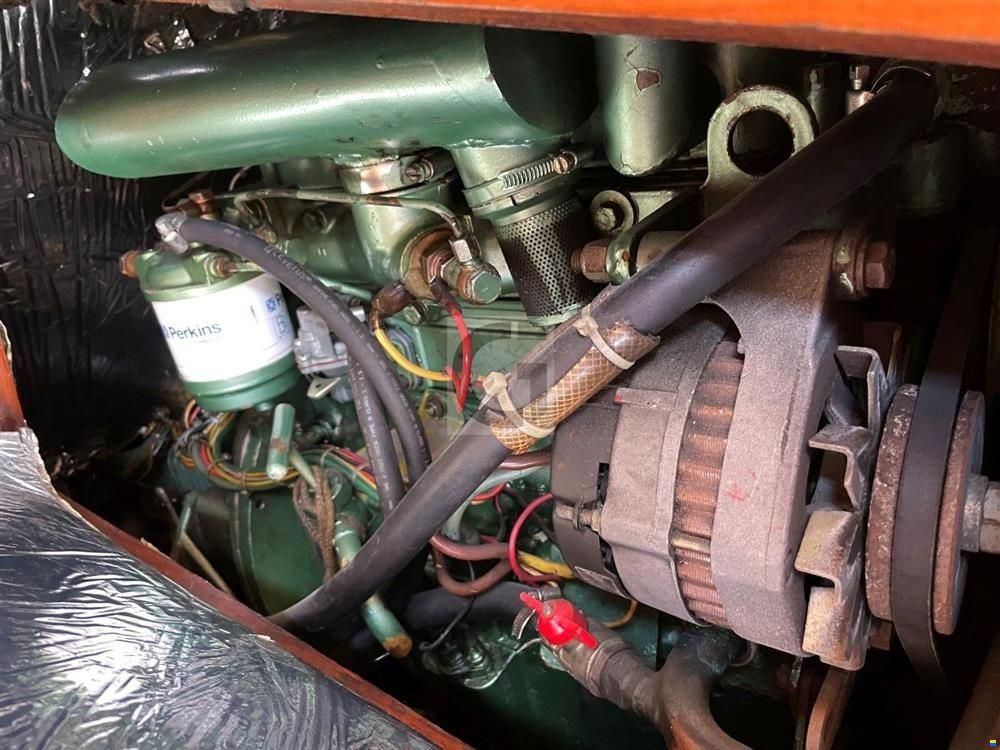

Perkins 4.108, 4 cylinders, naturally aspired diesel engine, producing 37,5 hp
Closed cooling with heat exchanger.
Fresh water-cooled exhaust manifold.

Service & Maintenance:
Engine hours – tbc
Date of last engine service – 2026

Propulsion & Steering:
Shaft drive with stainless steel shaft supported by p-bracket.
Max Prop 3-bladed feathering propeller.

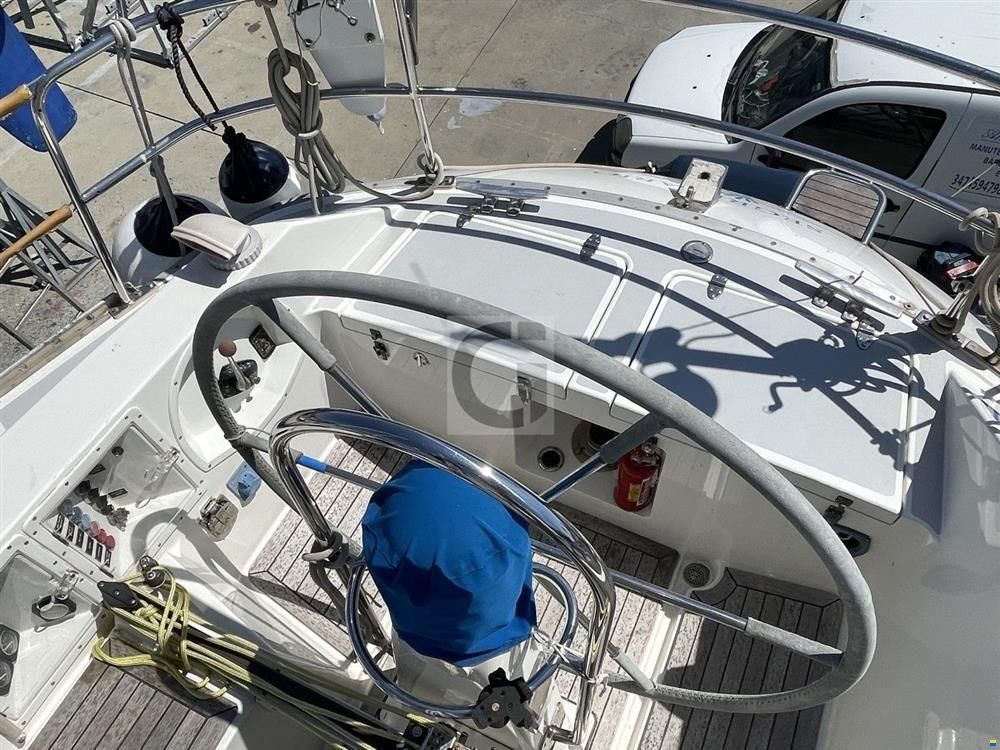

Steering wheel.
Spare 3 blades propeller
Chain driven autopilot actuator

ELECTRIAL SYSTEMS

Voltage systems:
12vDC primary domestic system with 12vDC starting circuit and 220v AC via shorepower

Battery Banks:
1x 12vDC engine battery
1x 12vDC service engine

Charging:
Via Awelco Thor battery charger, the engine mounted alternator, shore power connection.

Alternators:
12vDC engine mounted alternator

PLUMBING & GAS SYSTEMS

Fresh Water:
Cold water tap over the sink in the galley area and the heads.

Bilge Pumps:
2x manual bilge-pumps.
1x electric pump for the heads

TANKAGE

Fuel:
120 litres in one stainless-steel tank.

Fresh Water:
120 litres in a stainless-steel tank.

NAVIGATION & COMMUNICATION EQUIPMENT

In Cockpit:

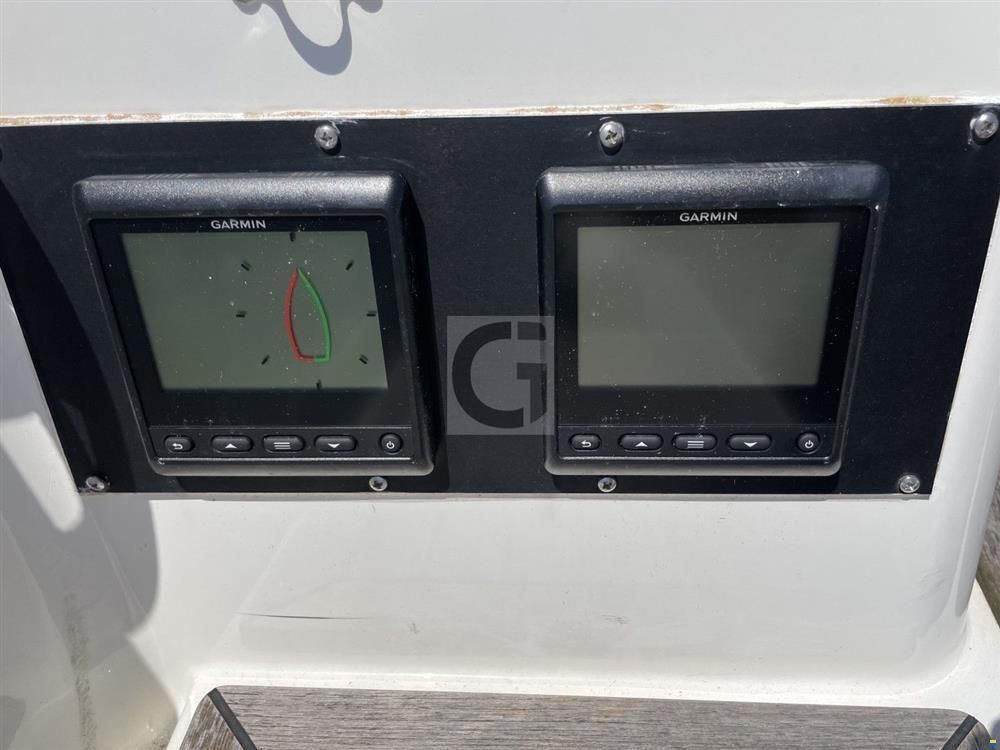

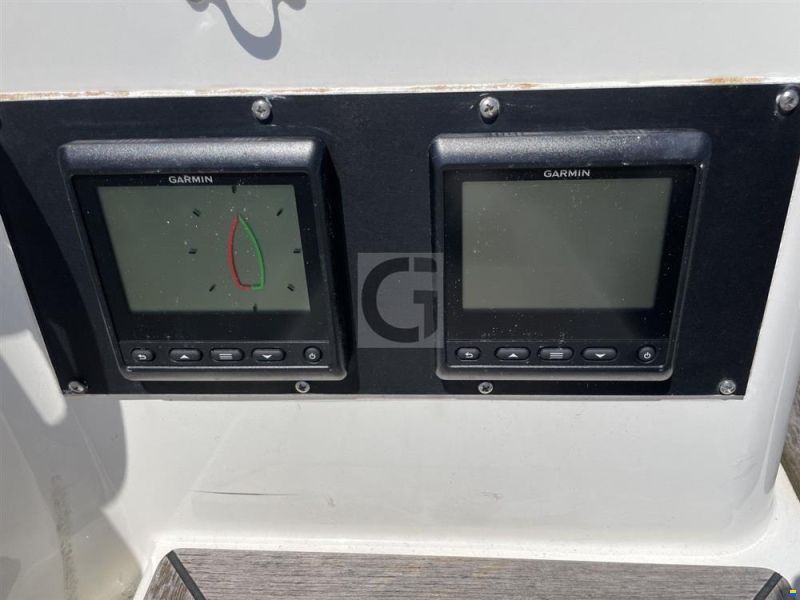

1x Garmin GNX wind display
1x Garmin GNX 20 display
1x Autohelm depth
1x Autohelm speed

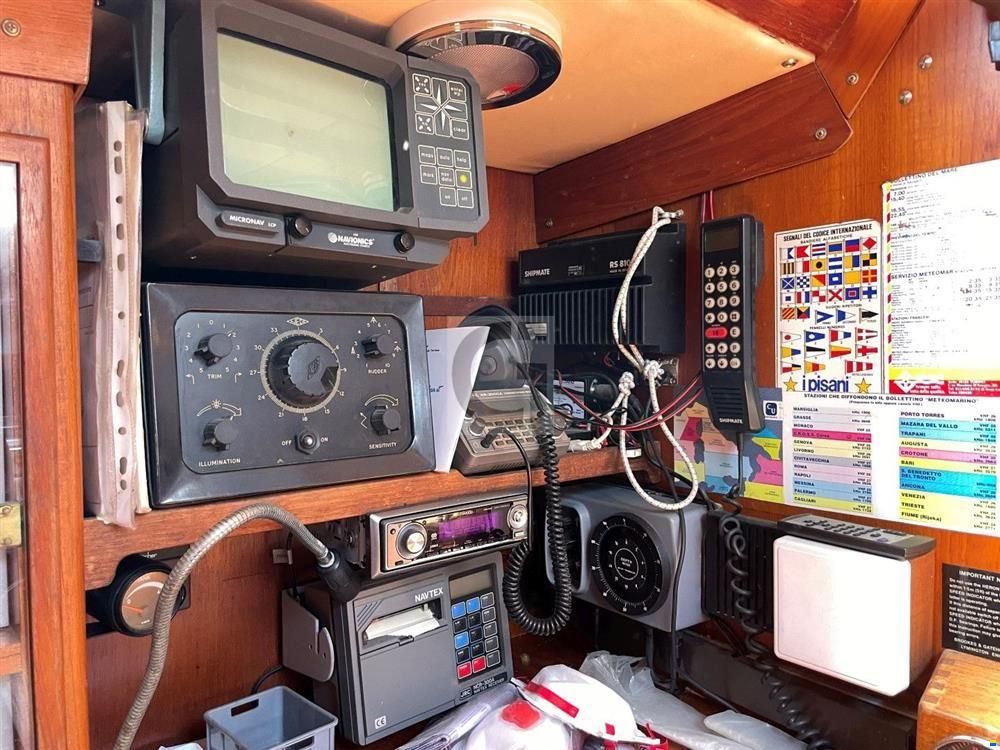

At Chart Table:

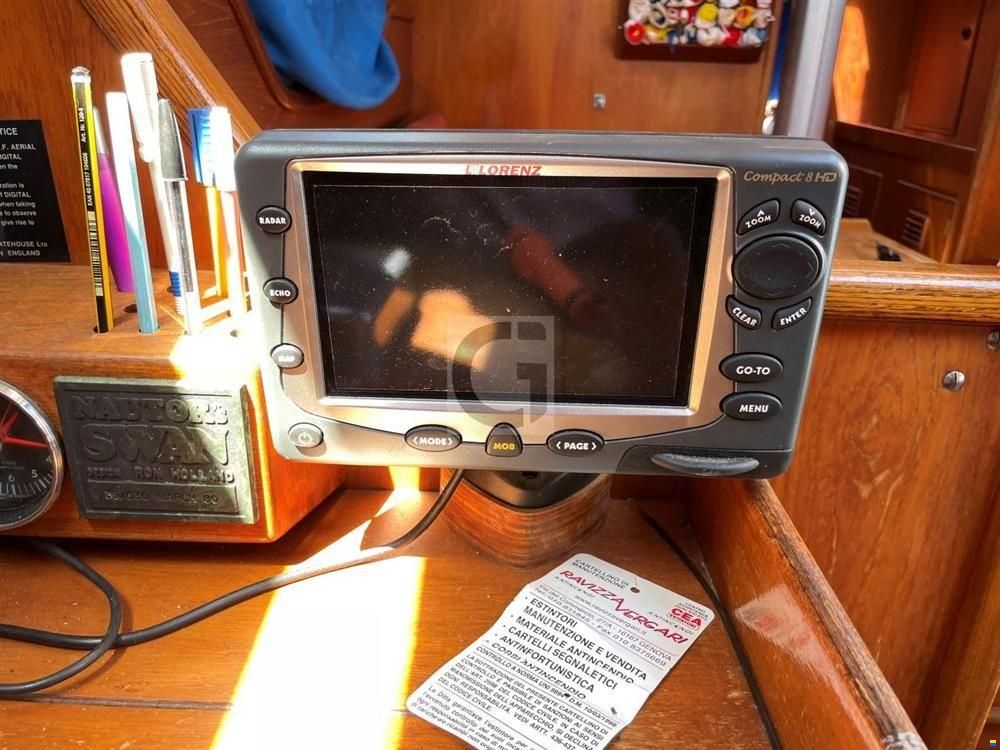

Lorenz compact 8HD chartplotter
Micronav LCP chartplotter
NECO autopilot
JRC Navtex
Depth meter

Communications Equipment:
Shipmate RS810 Radio VHF
AOR-3000A Comunication long wave, shortwave, VHF, and UHF bands

DOMESTIC EQUIPMENT

Galley:
Gimballed stainless 3-burner gas stove and oven.
12vDC fridge
1x Stainless steel sinks with cold water supply.
Foot pumps for fresh water and salt water
Cold pressurized water tap over the sink

Heads:
1x manual marine heads
Cold pressurised water tap over the wash basin.

Heating & Ventilation:
Diesel heating with outlets to all the cabins and heads - removed
Durade deck vents.

Lighting:
Both deckhead and reading lights.

ACCOMMODATION

Summary of Accommodation:
2x single berths in 2 aft cabins plus a double berth to the fore cabin and 2 further single berths in the saloon and further 2 bunk beds I the saloon benches.
Burma teak interior joinery made up of faced marine plywood with solid teak where appropriate.
Marine ply, fibreglass or timber planking to the deckhead.
Teak and holly or teak slats to the cabin sole.
Red upholstery to the cabin cushions.

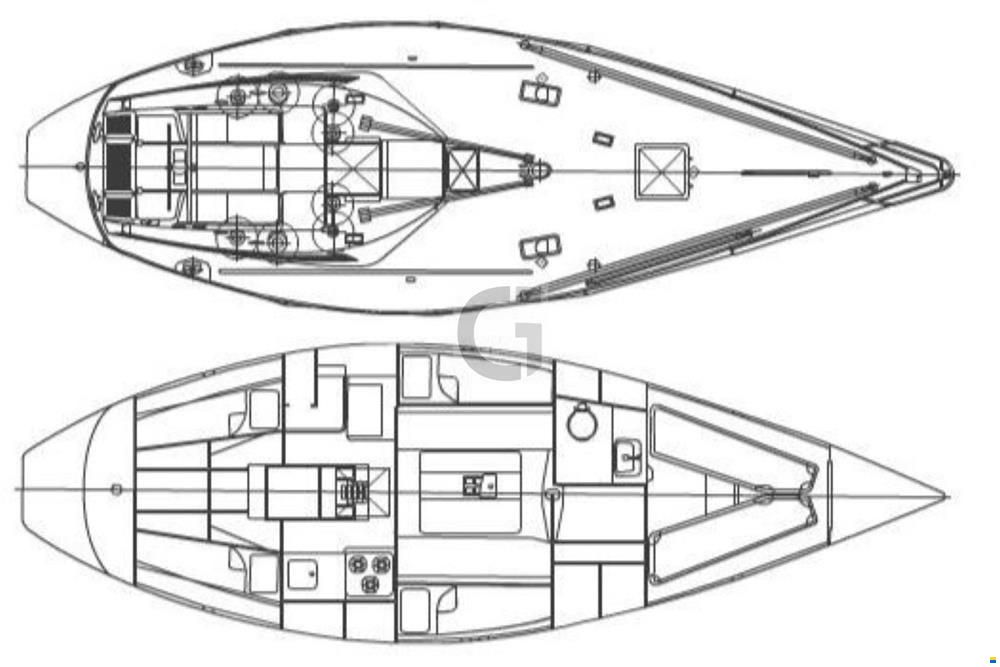

Description of Accommodation from Forward:

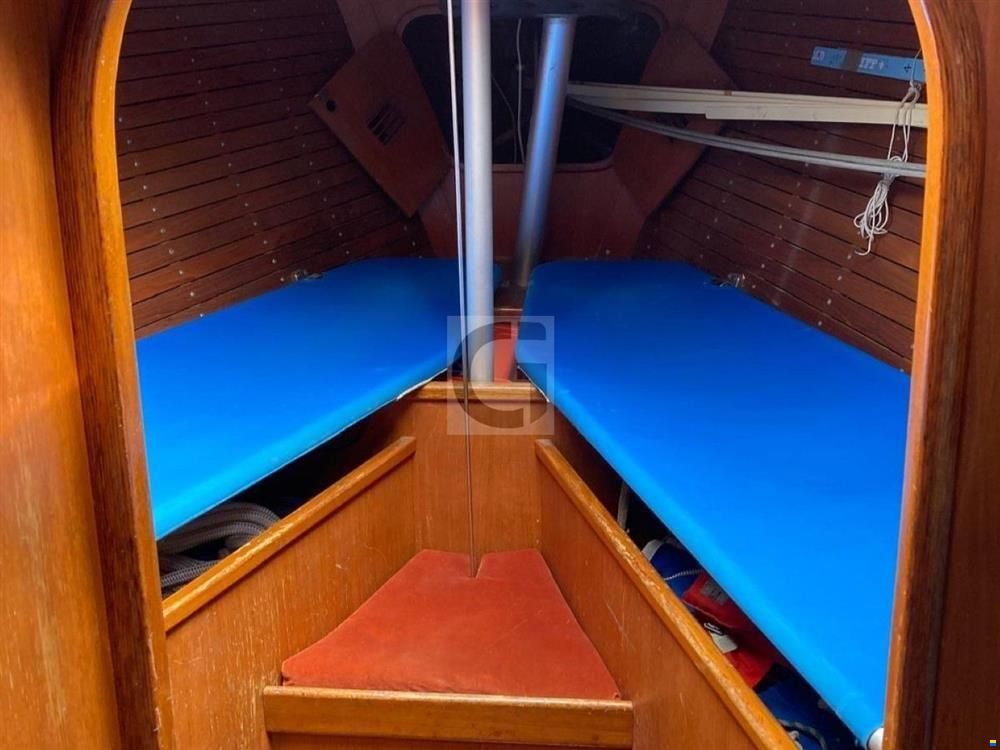

Fore Cabin:
Double folding bunk berth to the fore cabin

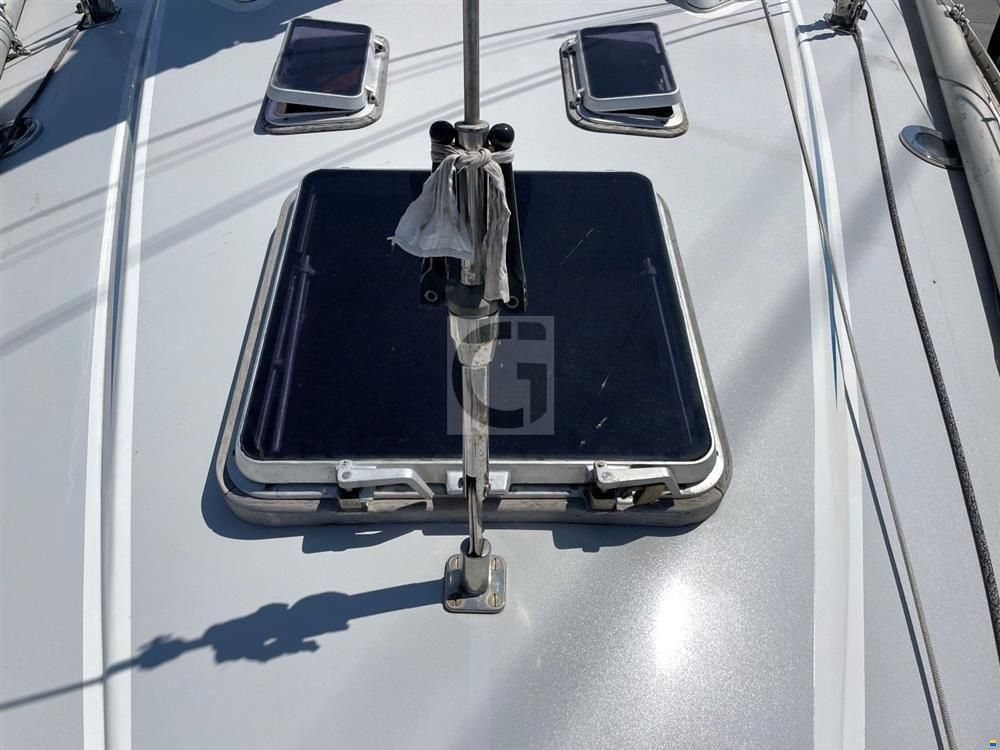

Deck ventilation/escape hatch.

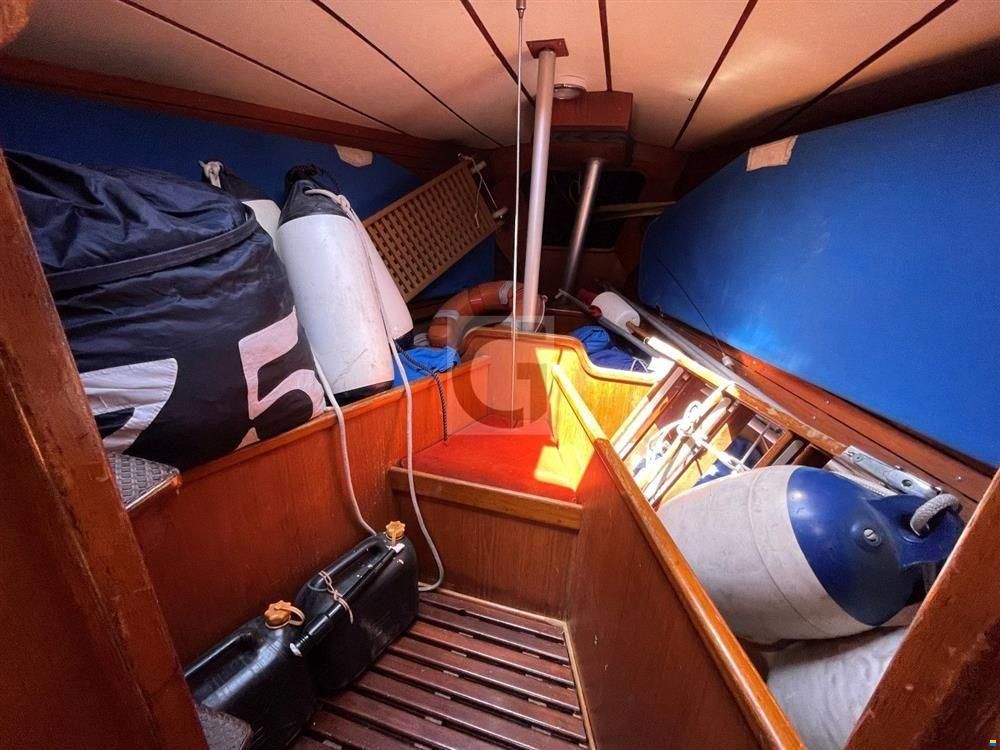

Sail/General Store Area:
Raised storage area.
Deck hatch.
Teak slats to the cabin sole.
Vertical poles providing a handhold.
Deckhead light.

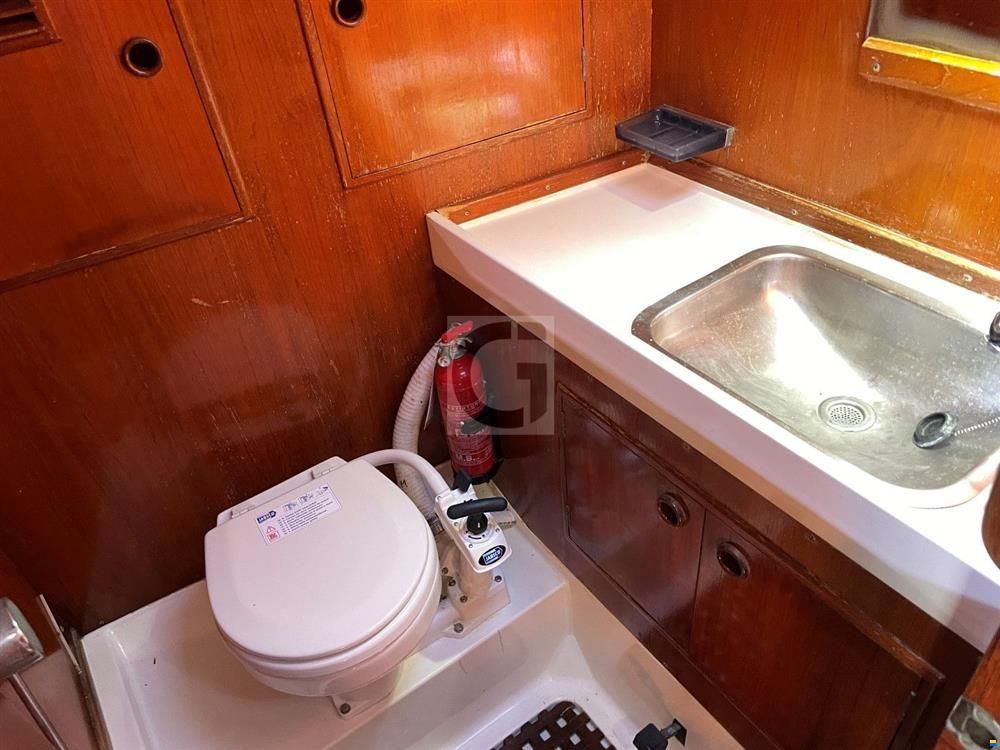

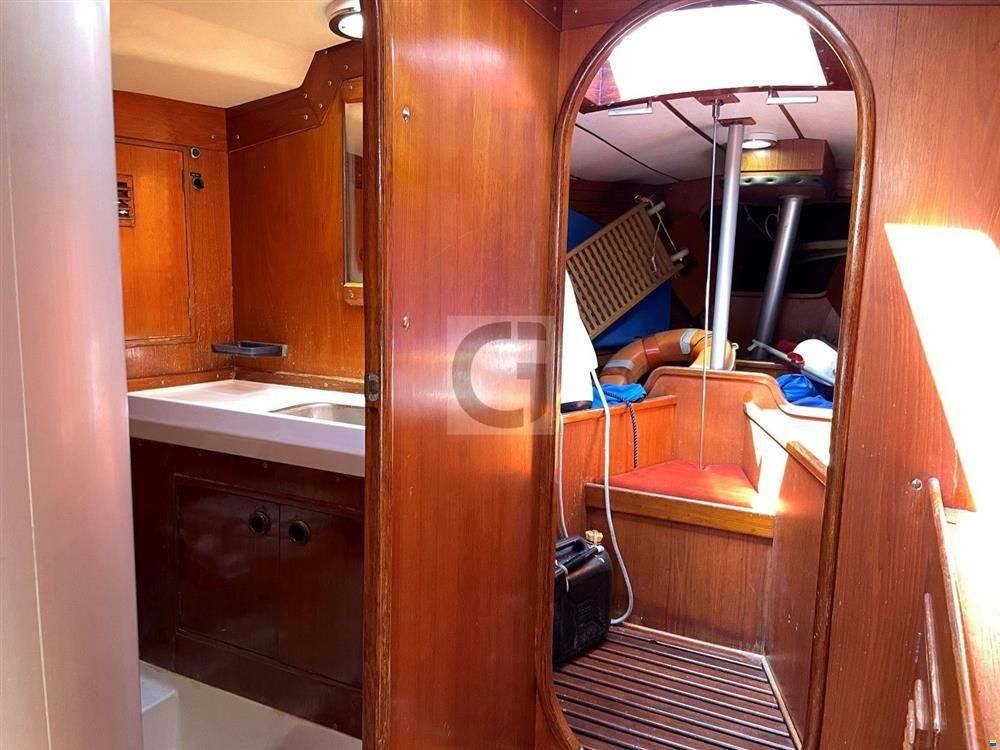

Heads:
Located to port.
Manual flush marine heads.
Stainless-steel wash basin with a tap over.

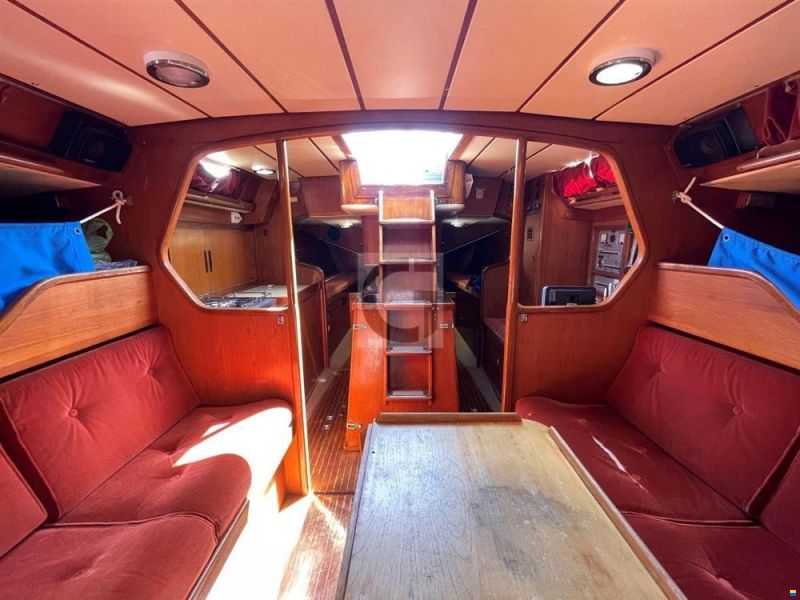

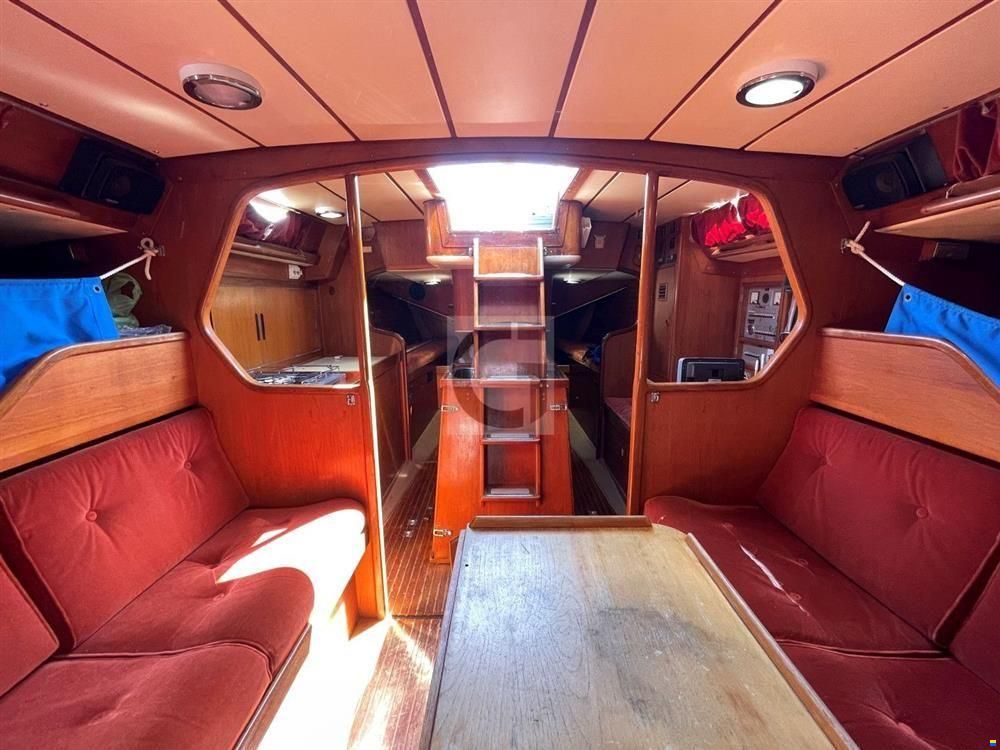

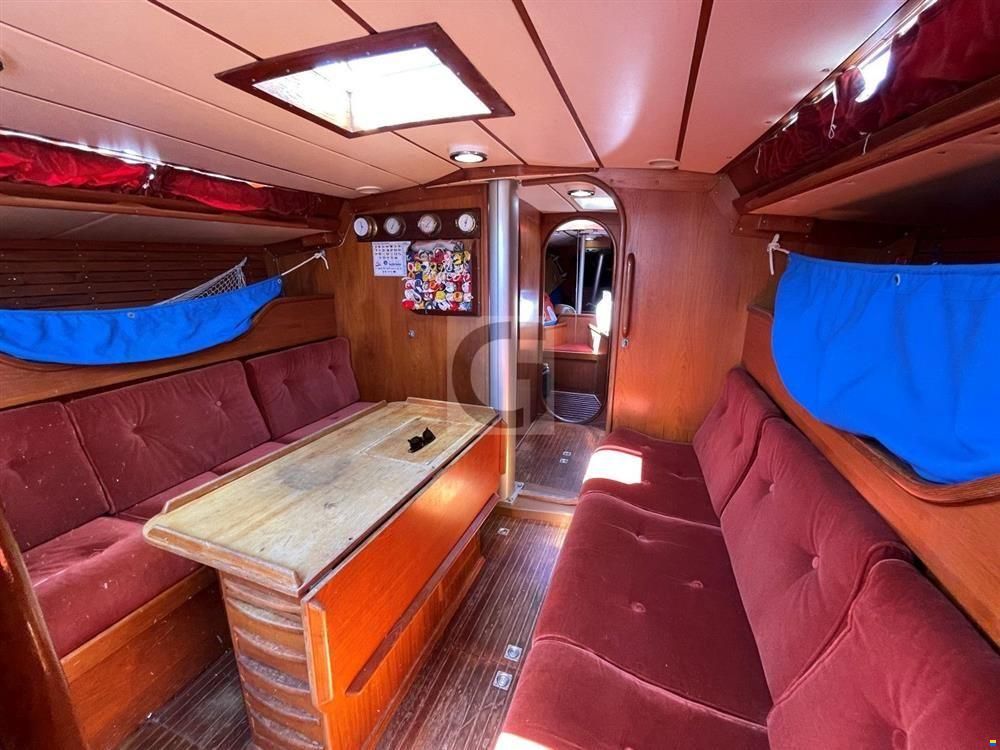

Saloon:
Dining table position slightly to port with a shaped sofa to the port side and a further sofa to starboard.
Deck ventilation hatch.
Deckhead mounted handrails.
Teak & holly to the cabin sole.
2x Vertical poles providing handholds.
Dorade deck ventilation.

Navigation Area:
Located to port.
Chart table with storage inside and draws under.
L-shaped bench.
Book and general storage shelves.
Electrical control panels.
Two-color (white/red) deck light
White reading light
Bulkhead space for mounting electronics
Teak & holly sole

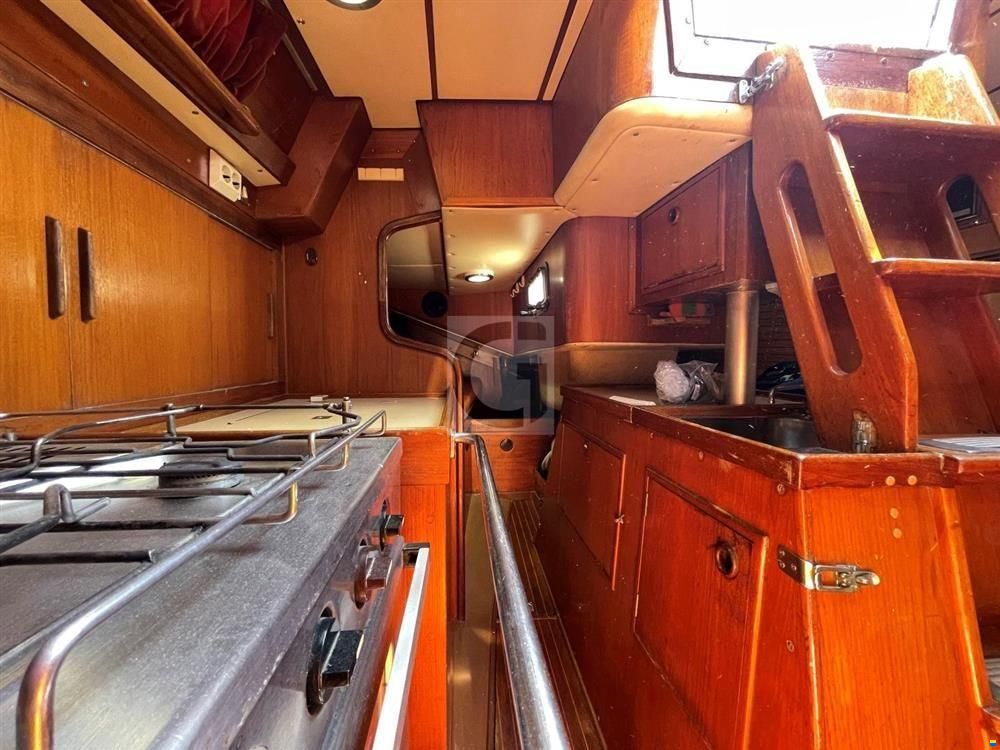

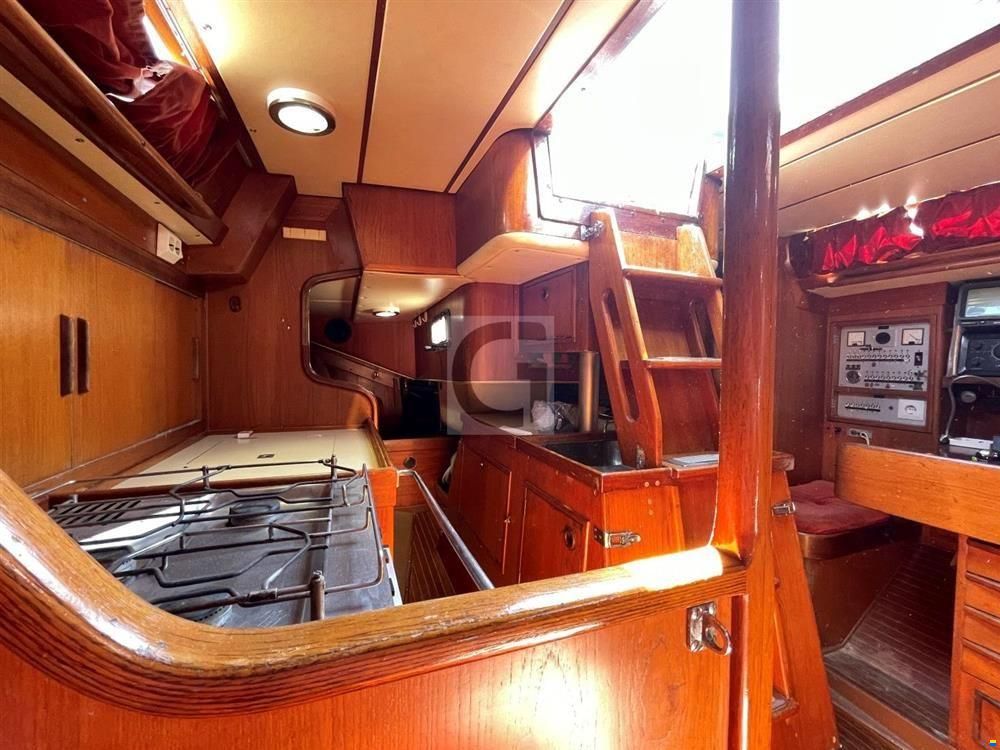

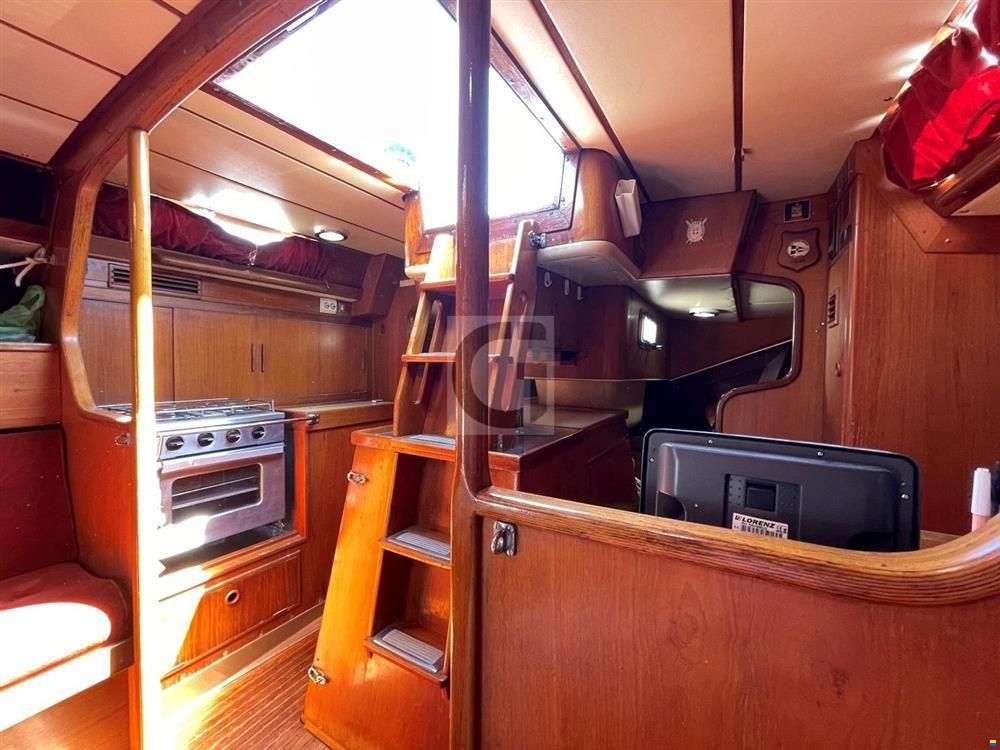

Galley Area:
Located to starboard.
Linear layout.

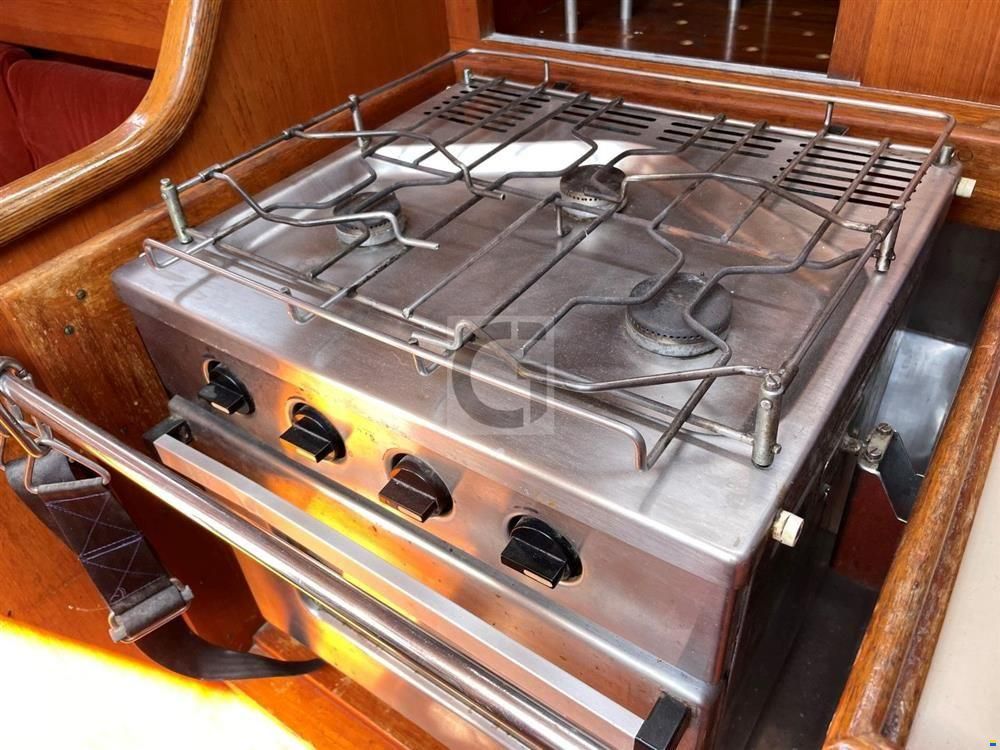

Gimballed stainless-steel gas oven and 3-burners stove with stainless-steel grabrail and cupboard under.
Worktop with fiddled edges, access hatch to the refrigerator and sliding door storage cupboards over.
Located under the companionway is the sink has a freshwater tap and seawater tap and timber insert to create additional worktop space and cupboards behind.
Steps leading up to the cockpit.

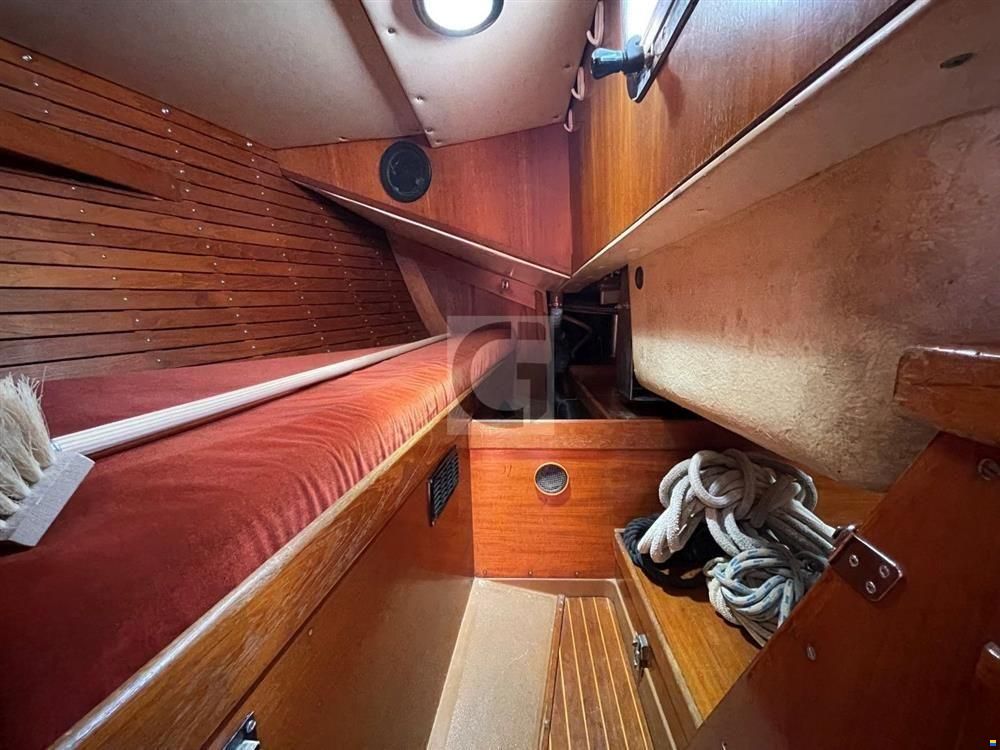

Starboard side Aft cabin:
Single berth.
Porthole to the cockpit.

Portside Aft Cabin:
Single berth.
Porthole to the cockpit.

DECK EQUIPMENT

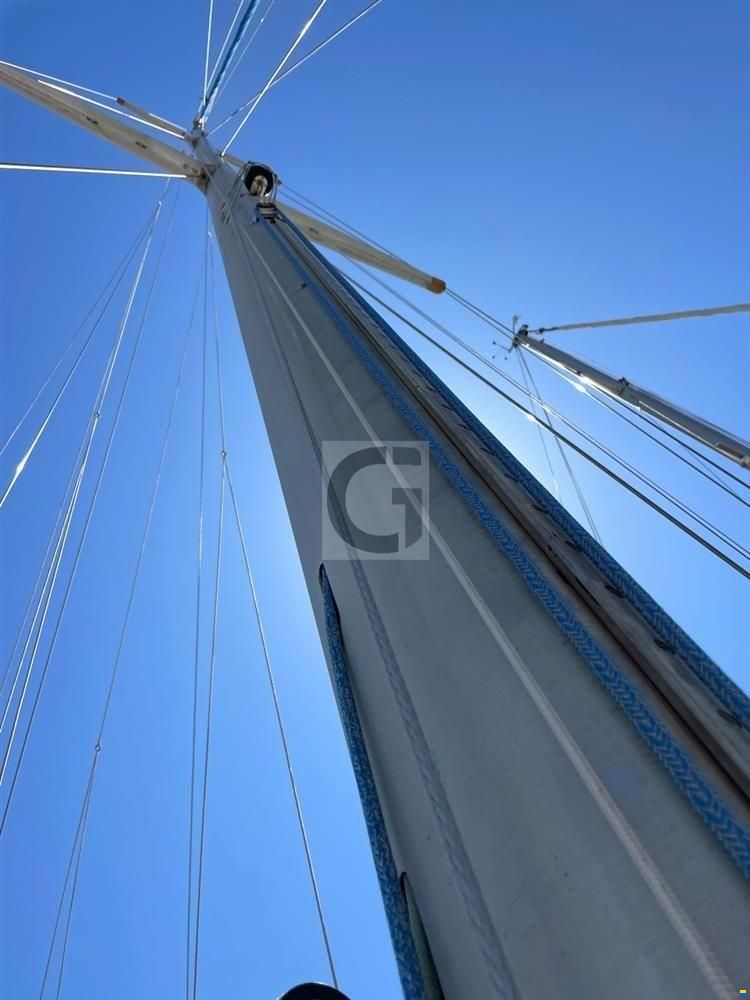

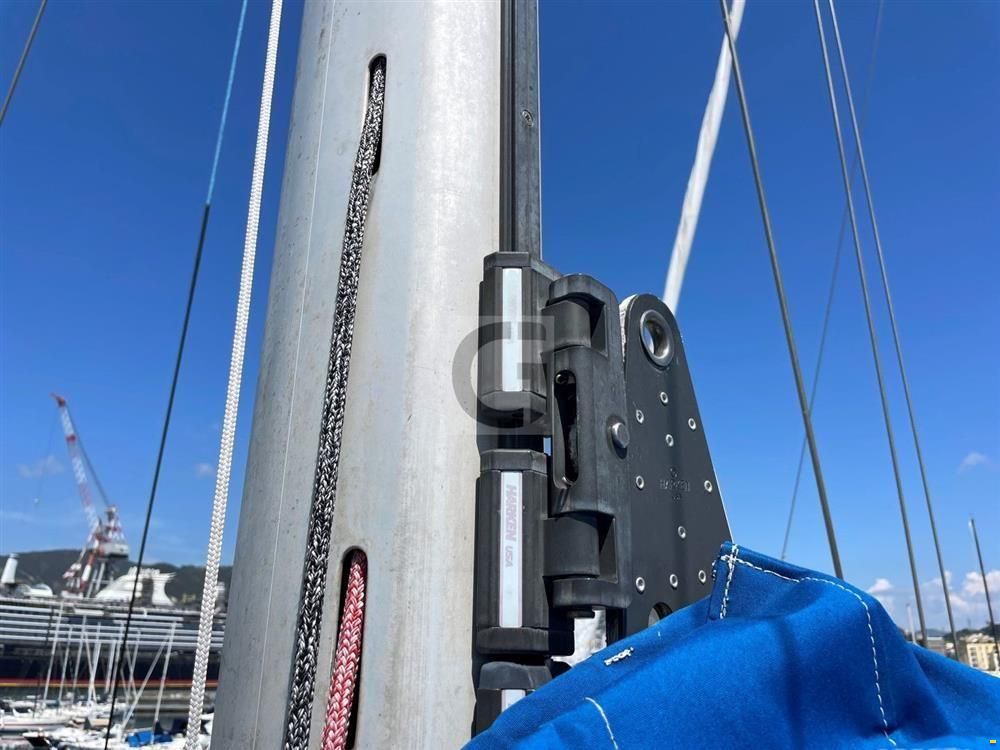

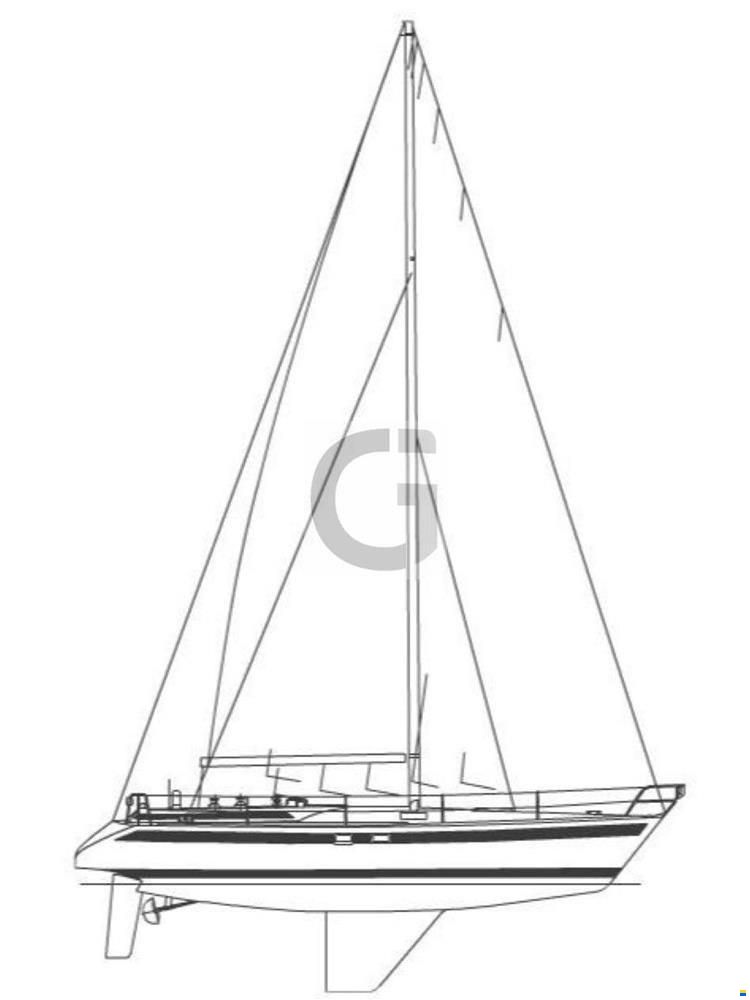

Rig:
Standard double-spreader configuration
Nautor aluminium alloy mast and boom
Keel stepped aluminium anodised mast
Stainless steel standing rod rigging Nitronic 50 - replaced 2024
Running backstays
Mechanical adjustable baby-stay

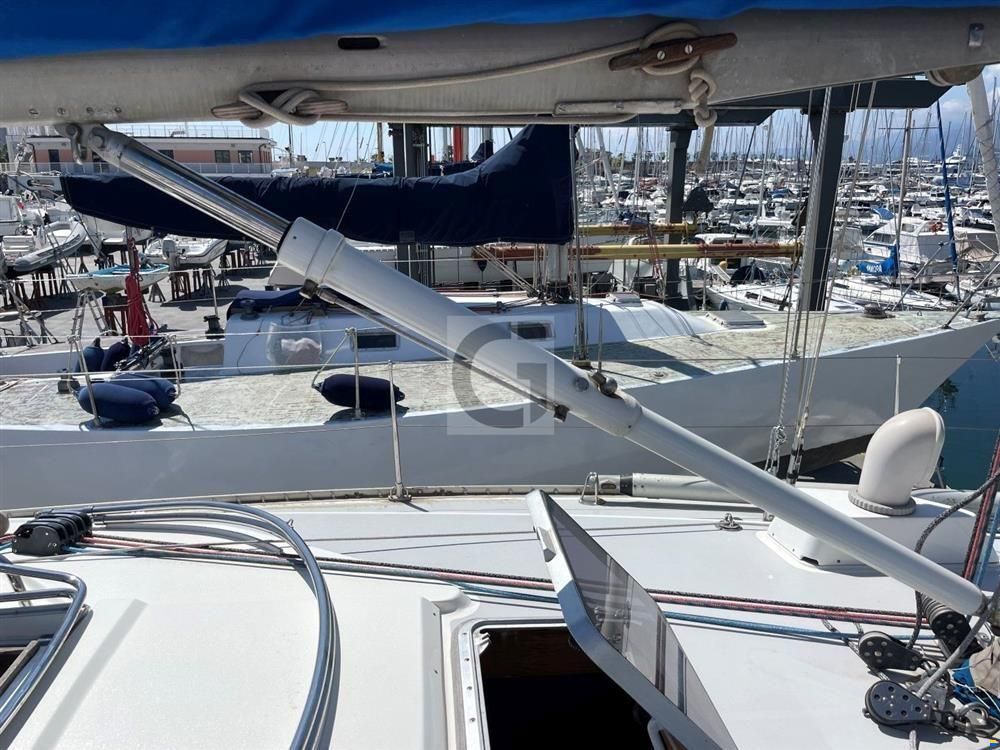

Rod vang with block & tackle adjustment
Hydraulic backstay – serviced 2024
Hydraulic vang

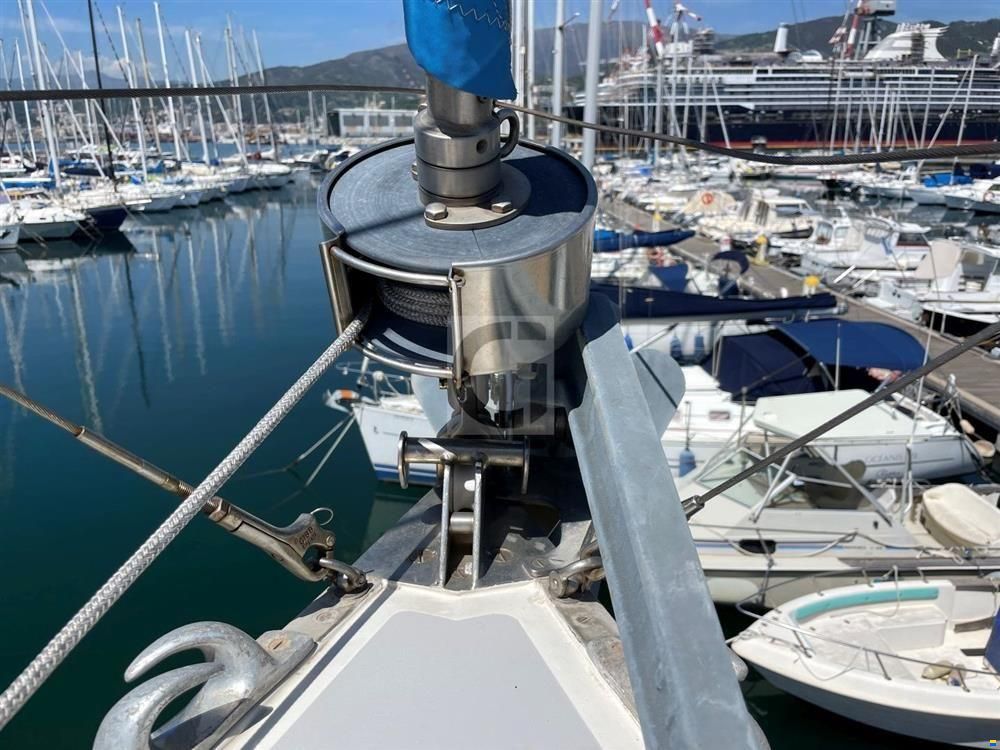

Reckman genoa furling system
Spinnaker track on mast
Twin deck-stowed spinnaker poles
Harken main sail track

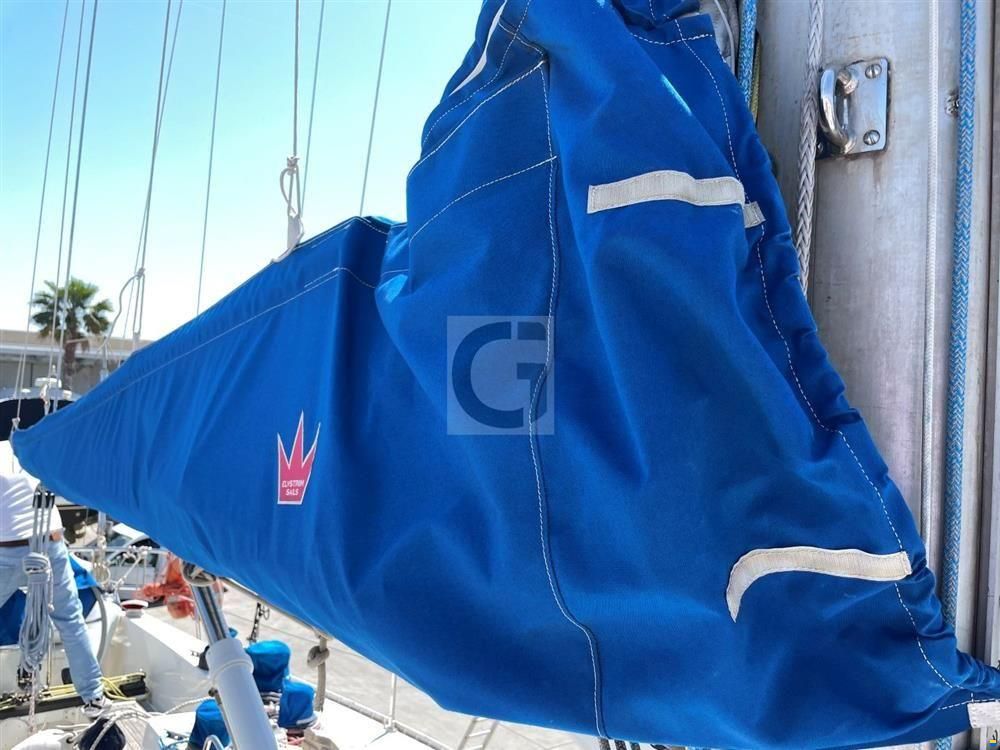

Lazy bag and Lazy Jacks

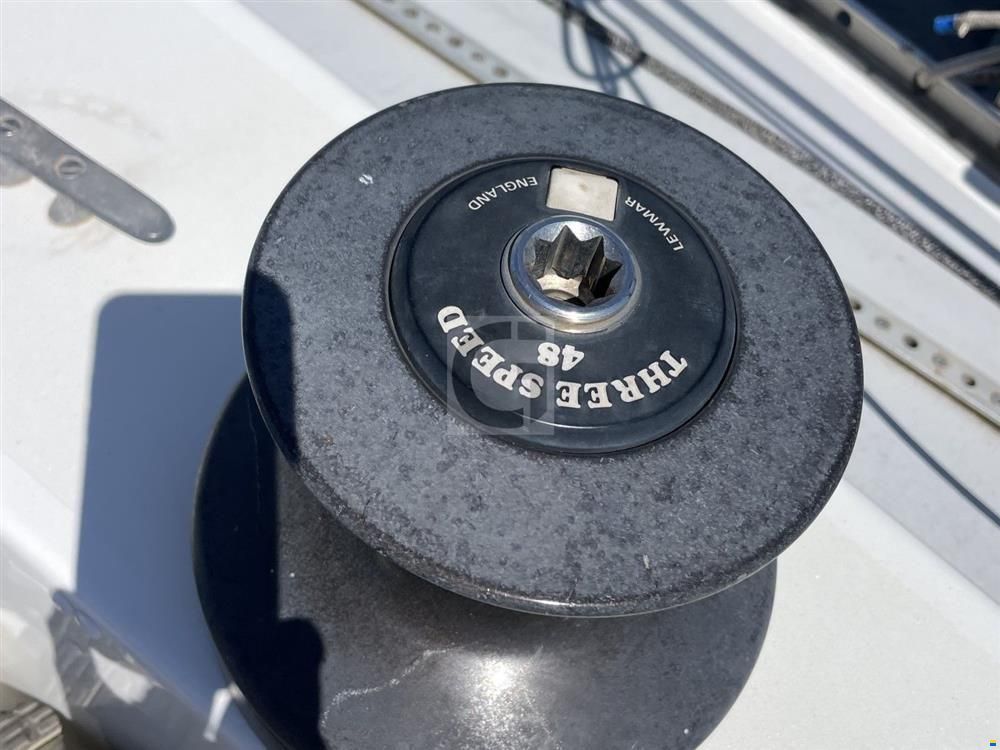

Winches:
2x Lewmar 55 three speed winches
2x Lewmar 48 two speed winches
4x Lewmar 43ST two speed winches

Sails:
Sobstad dacron full batten main sails
North Sails dacron furling heavy genoa
North Sails dacron main sail – serviceable
North Sails0.75 triradial spinnaker (heavy used)
Sobstad Sails spinnaker 0.75 (lighly used)
North Sails 1.5 spinnaker (heavily used)
Offshore sails 2.2 spinnaker (used once)
Big Boy (Blooper)
Storm sail
Sobstad Sails light genoa
North Sails light genoa (heavily used)
North Sails genoa 2 with reefs (heavily used)
Offshore Sails mylar jib
Raudaschl Sails genoa 2 (heavily used)
Bianchi e Migliori sails jib 1

General:
Stainless-steel pushpit, step through pulpit,
Two rail wire guardrails and stainless-steel stanchions.
Stainless-steel bathing ladder.
Wooden passarelle.
Wooden bathing ladder

Anchoring & Mooring:

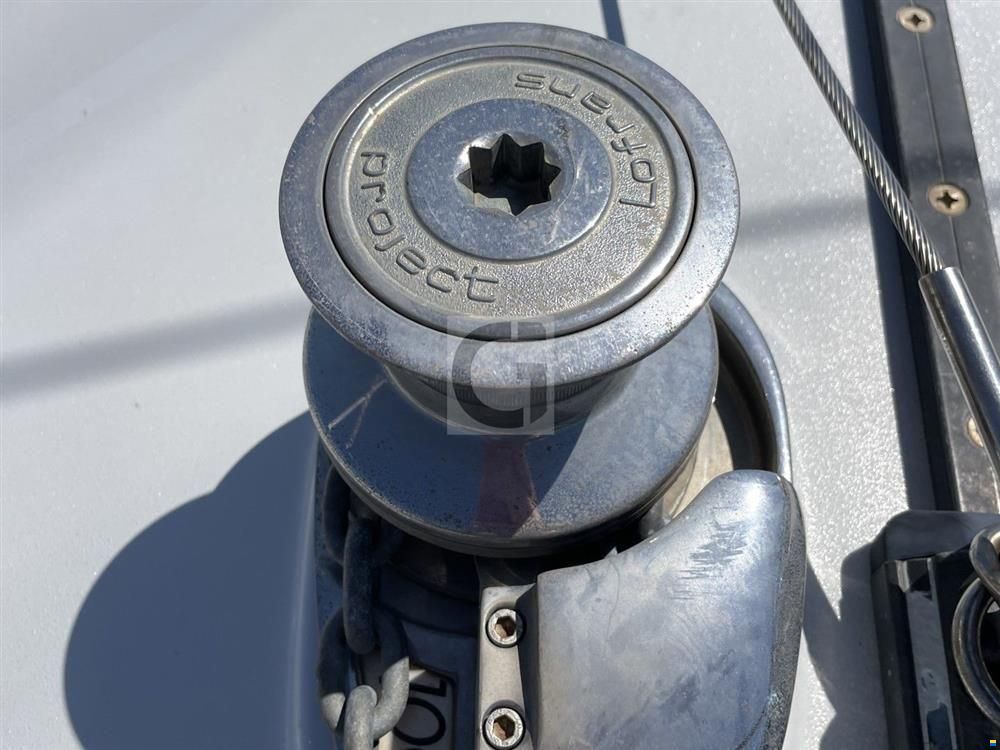

Lofrans Project 12vDC electric deck mounted anchor windlass.
Bruce anchor with galvanised chain
Appropriate number of stainless-steel mooring cleats.
Various mooring warps and fenders.

Tender & Outboard:
Honda 4hp four stroke outboard engine

SAFETY EQUIPMENT:

General note on safety equipment: Any safety equipment such as liferafts, Epirbs, fire extinguishers and flares etc. are usually personal to the current owner(s) and if being left on-board as part of the sale of a used vessel may require routine servicing, replacement, or changing to meet a new owners specific needs.

Life saving:
Arimar 8pp liferaft - 2024


VIEWING ARRANGEMENTS
Lying Genova, Italy.

Available to view strictly by appointment

Office Hours Mon- Fri 0900 – 17.00
Saturday by prior appointment

For more information or to arrange a viewing please contact us.

Please Note: Due to the varying locations of our yachts, your travel time and the distances that may be involved, we recommend that you only make arrangements to view if you are actively considering purchase.
