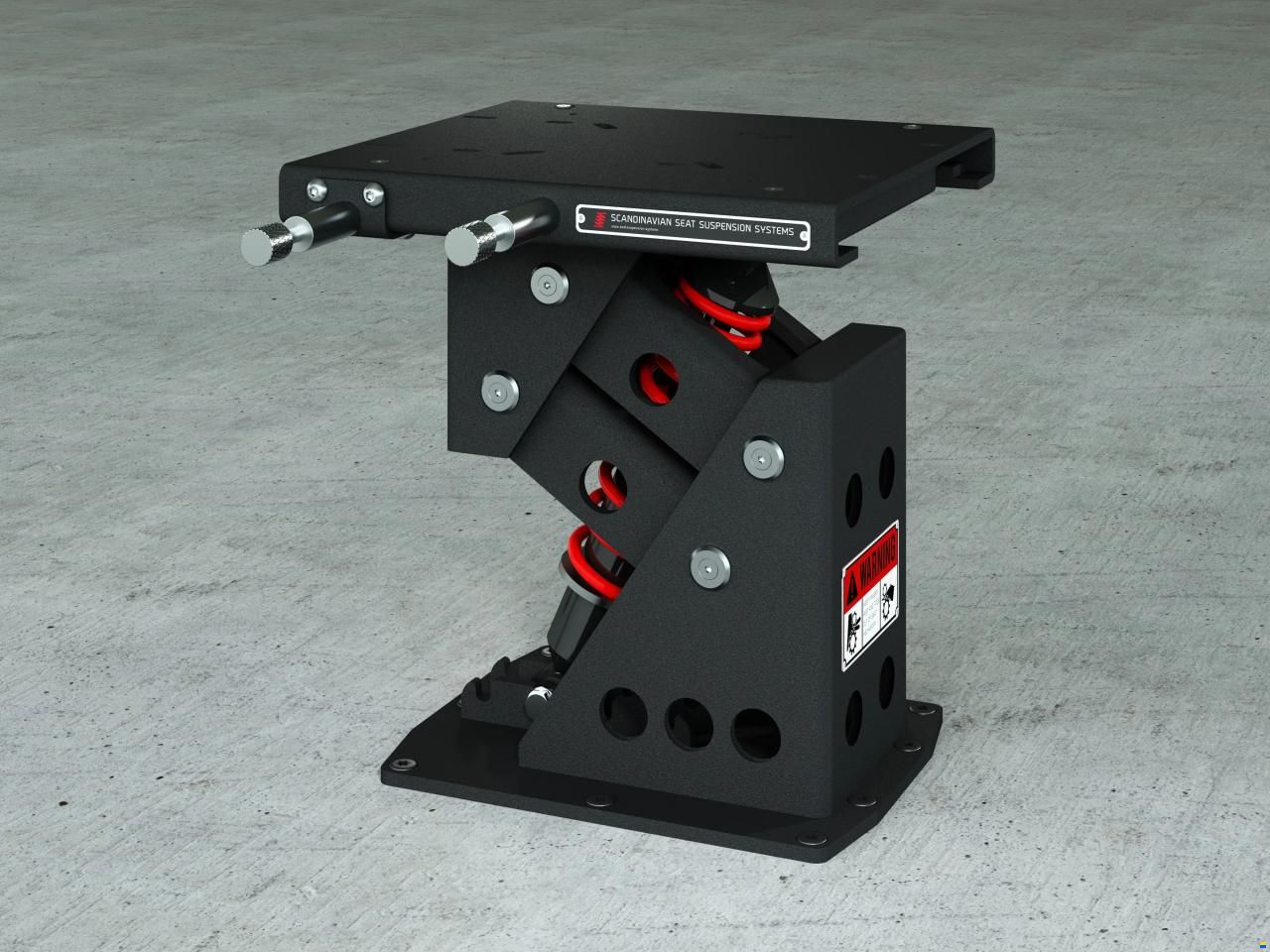

4S CCW-RB, EUR 664,-

CC-Series Full Set Suspension
Stable. Strong. Adjustable on the Fly.
The CC-Series is a robust, full-feature seat suspension built for serious marine conditions and long hours on the water. With an integrated 360° swivel and 120 mm slide, it offers complete control over your seating position, while protecting your back and neck from constant shock and impact.
The design is rugged yet user-friendly, with easy-access handles (adjustable to either side during assembly) and a compact footprint that fits multiple deck plate options. Whether used on patrol boats, RIBs, or work vessels, the CC-Series is a reliable upgrade for serious performance and safety.
Key Features & Specifications:
• Height range: 340–380 mm / 14–16”
• Height adjustment: 40 mm / 1.75”
• Swivel included: 360° rotation with 8 lock positions
• Slide included: Fore/aft 120 mm / 5”
• Adjustable pre-load: 50–130 kg / 110–285 lb
• Weight adjustment: On damper, C-spanner included (attached to base plate)
• Weight: 14 kg / 31 lb
• Seat mount: 330 × 315 mm / 13 × 12.5”
• Handles 250 mm / 10” from centerline
• Deck mount: Multiple sizes and shapes available (RB, SR, BR deck plates)
• Mounting options: Slide-only, fixed, or full set with swivel/slide
• Material: Heavy-duty, marine-grade build
• Compliance: Meets ABYC H-31 standards (Type AO)
User-Friendly Features:
• Quick and easy to install
• Seat adjustment handles are within reach while seated
• Handle positions can be configured to either side during assembly
• Built to absorb impact and reduce fatigue over long periods at sea
