Located in Germany; delivery to any required location can be arranged if needed.
Specification:
Length, m 9
Width, m 2.5
Transom Deadrise, deg 16.8

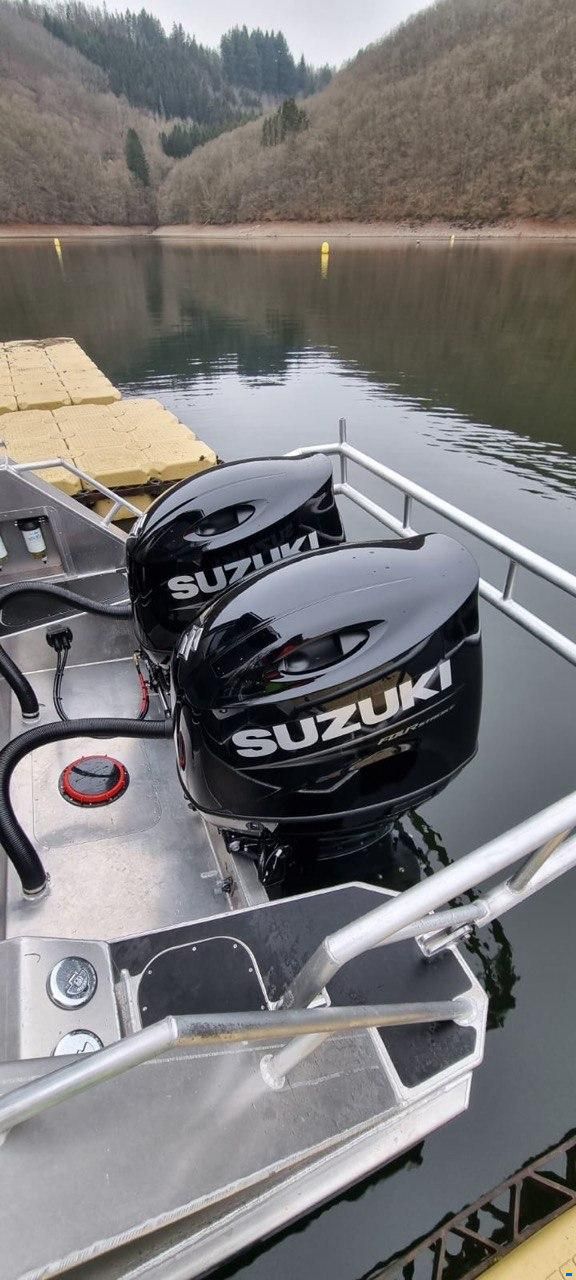

Engine type outboard
Max recommended HP 1 x 350 or 2 x 250
Transom height, m 0.625
Weight (no engine), kg 2400
Fuel Capacity, l 350 / 500
Max recommended load, kg 2000
Capacity 8 persons
Marine aluminium alloy 5083
CE category C
STANDARD EQUIPMENT
EXTERIOR EQUIPMENT

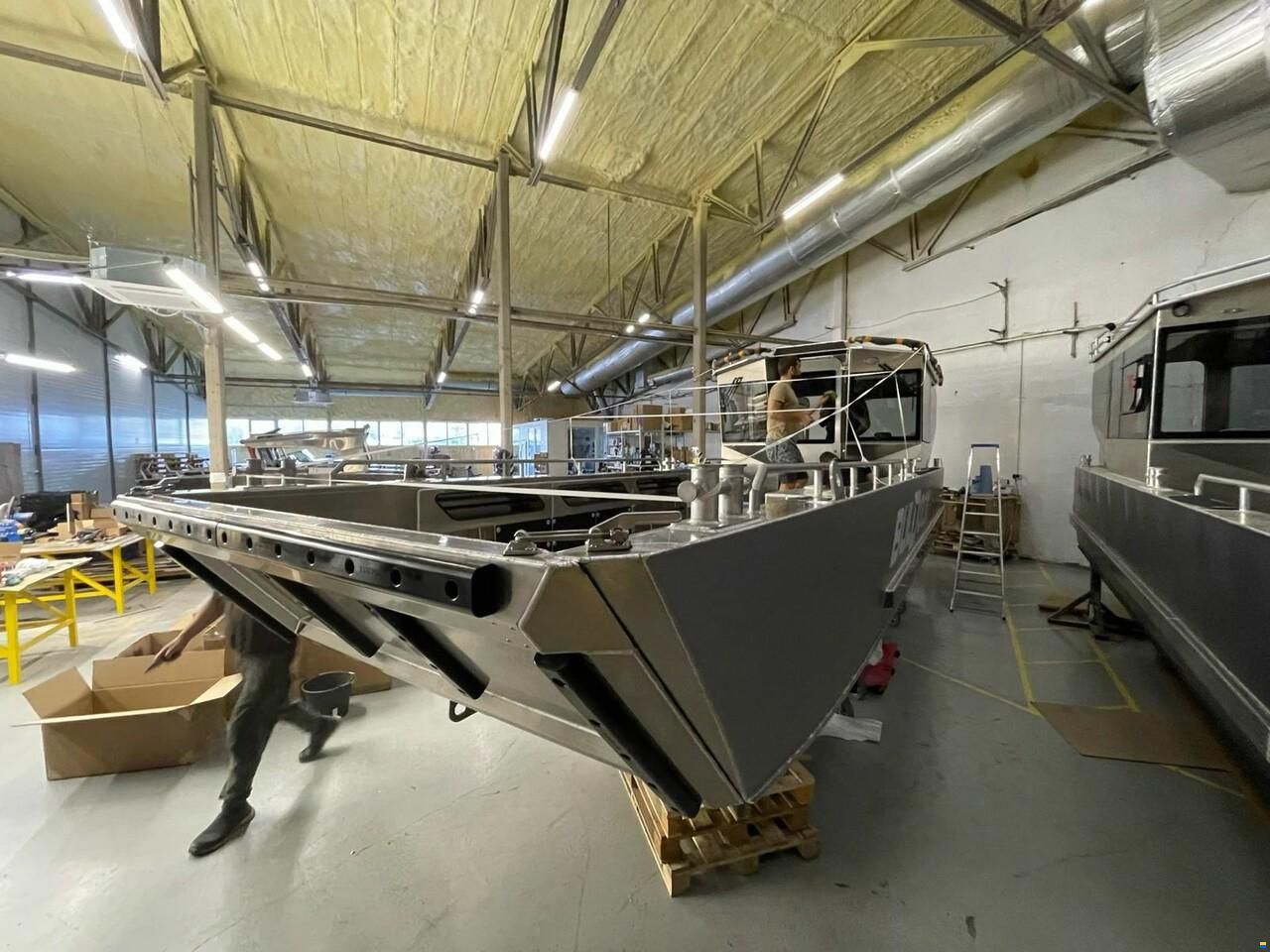

- Hull made of 5083 grade marine aluminium; material thickness 5 mm bottom and 4 mm side walls

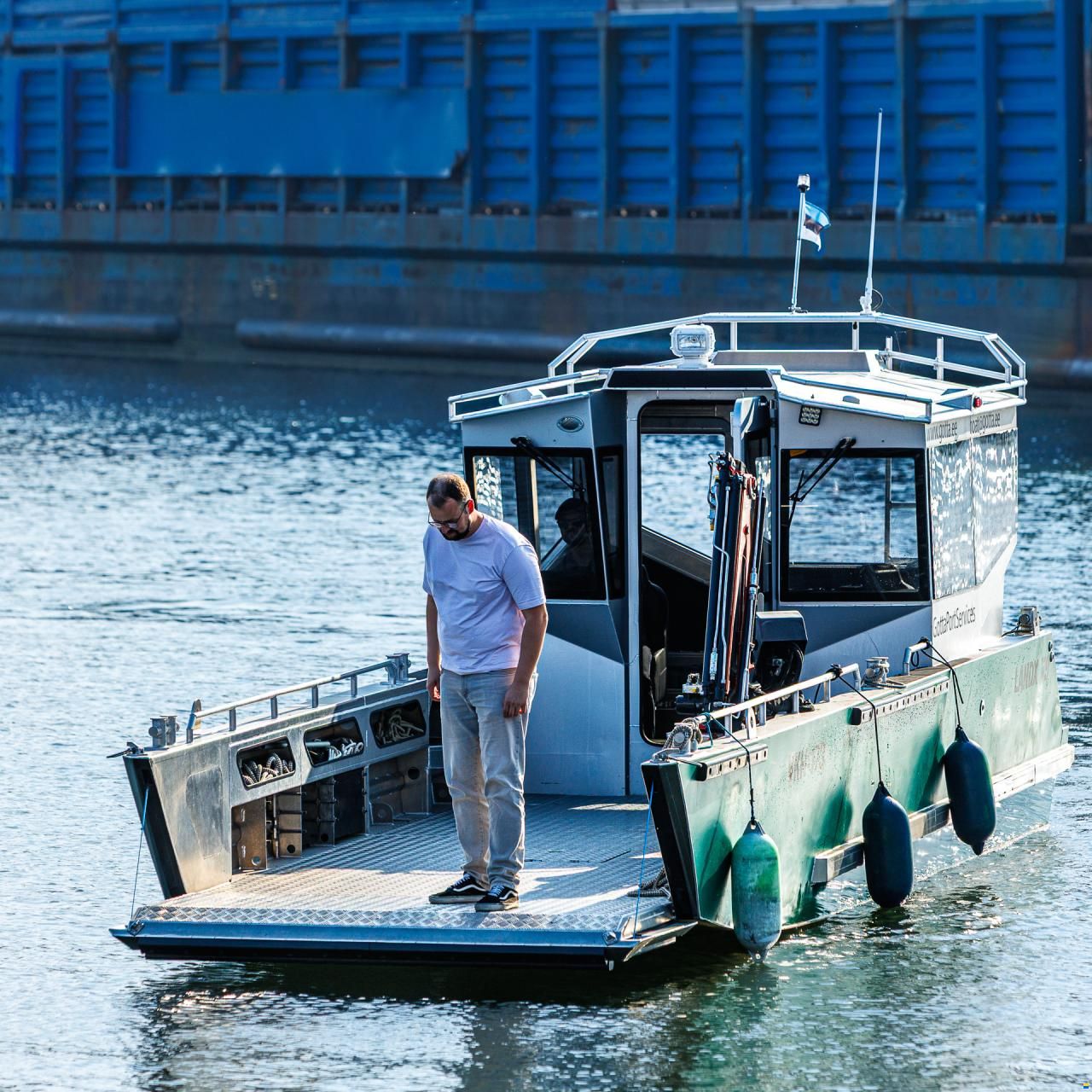

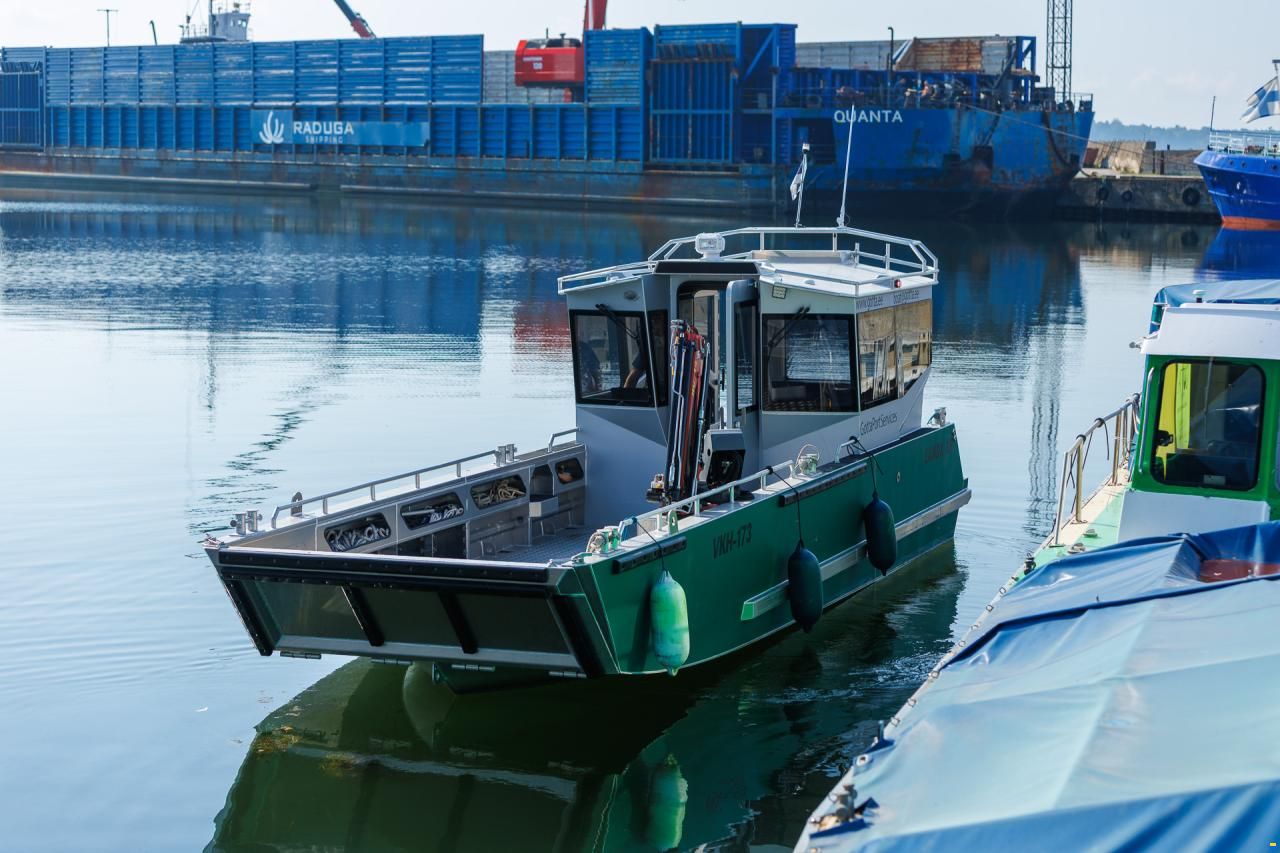

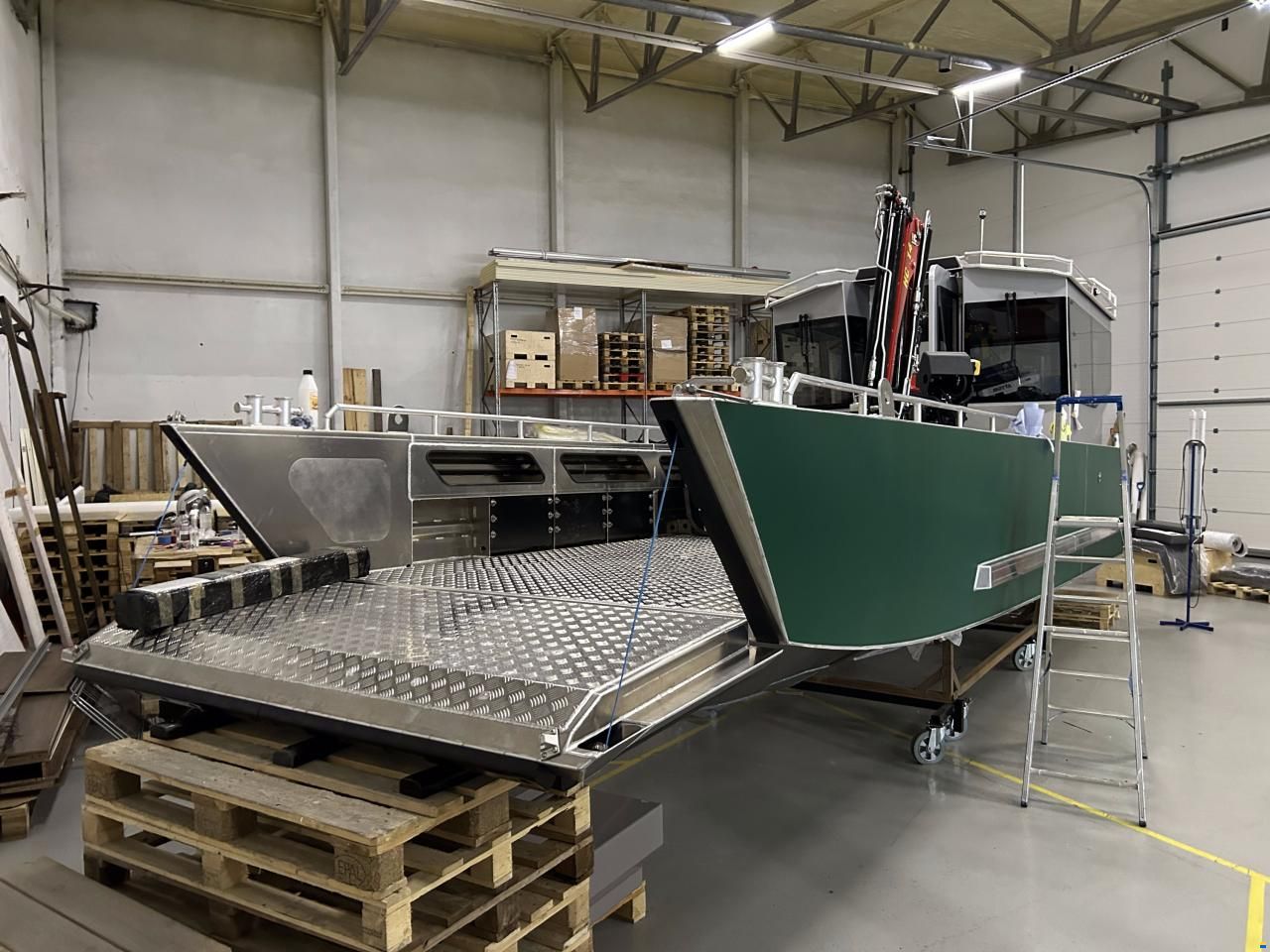

- Bow loading ramp with electric lift and additional locks for rigid securing to the hull

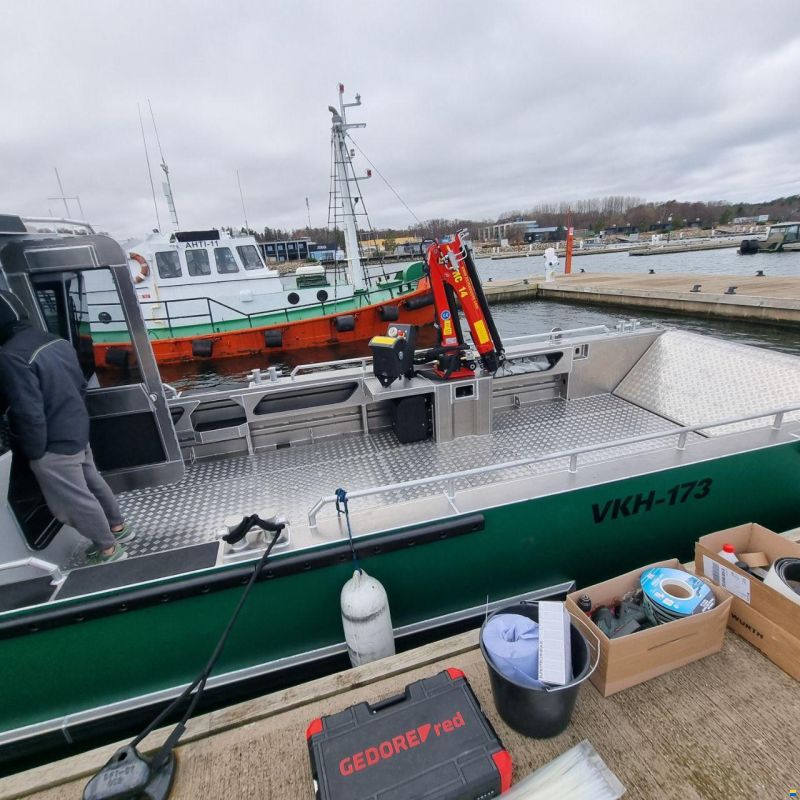

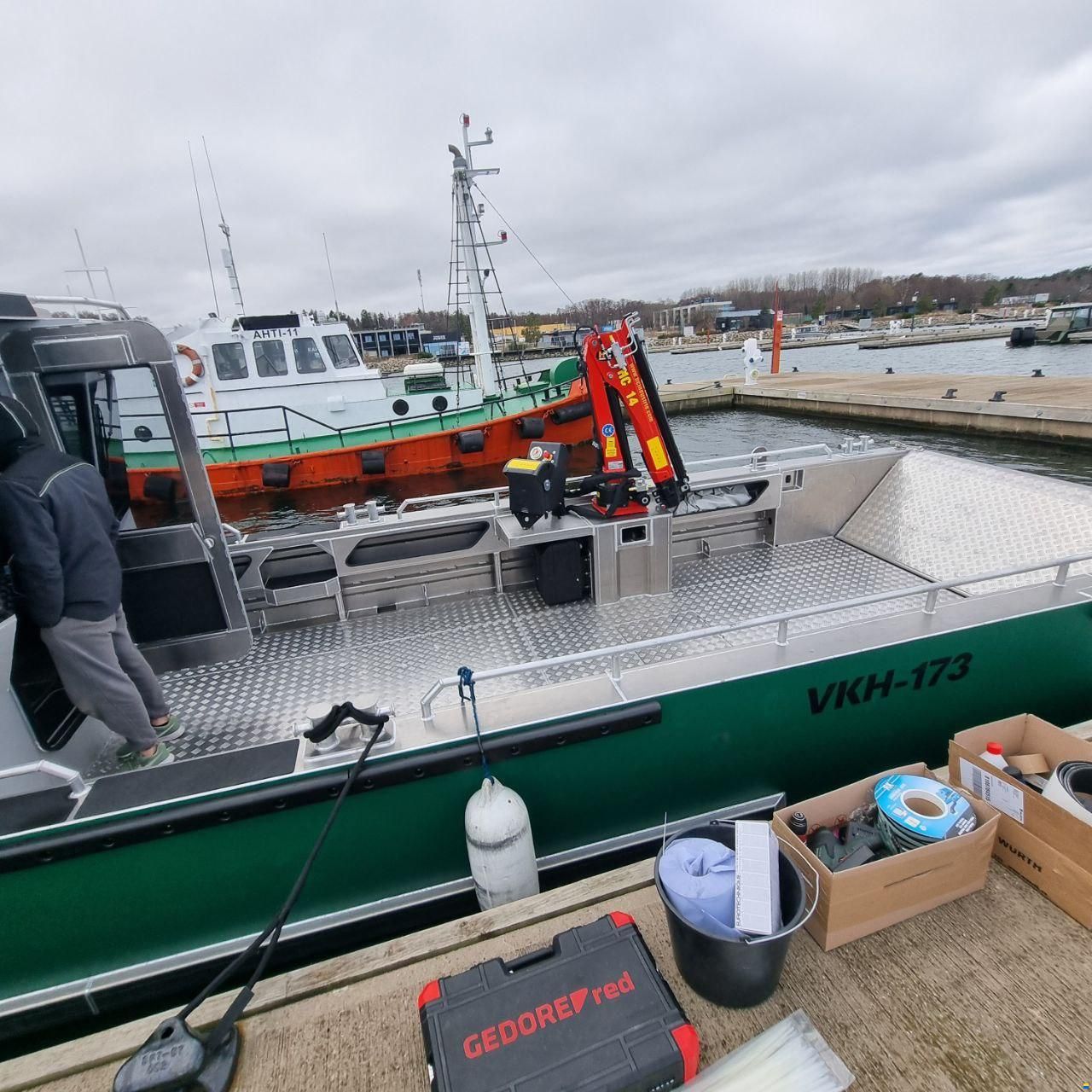

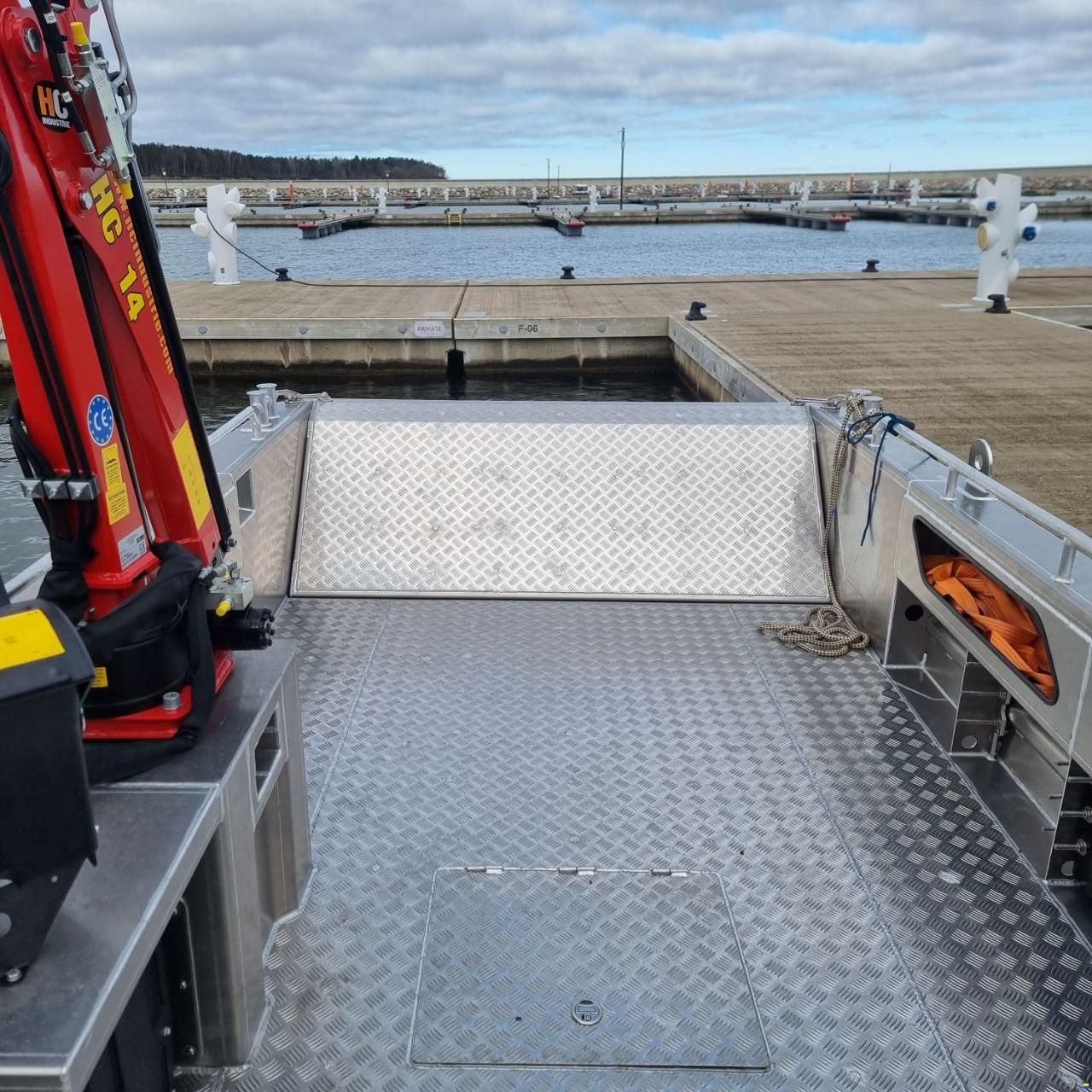

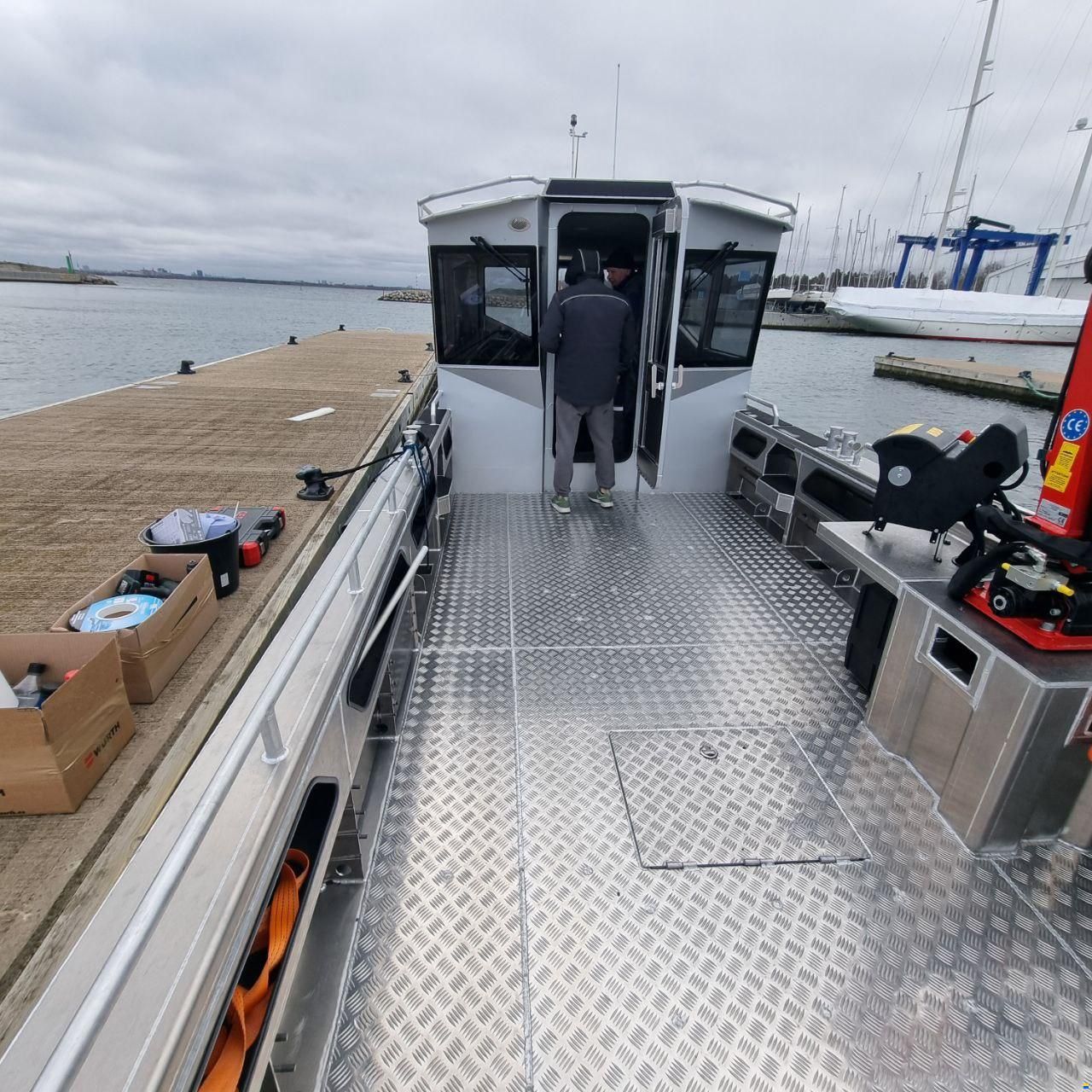

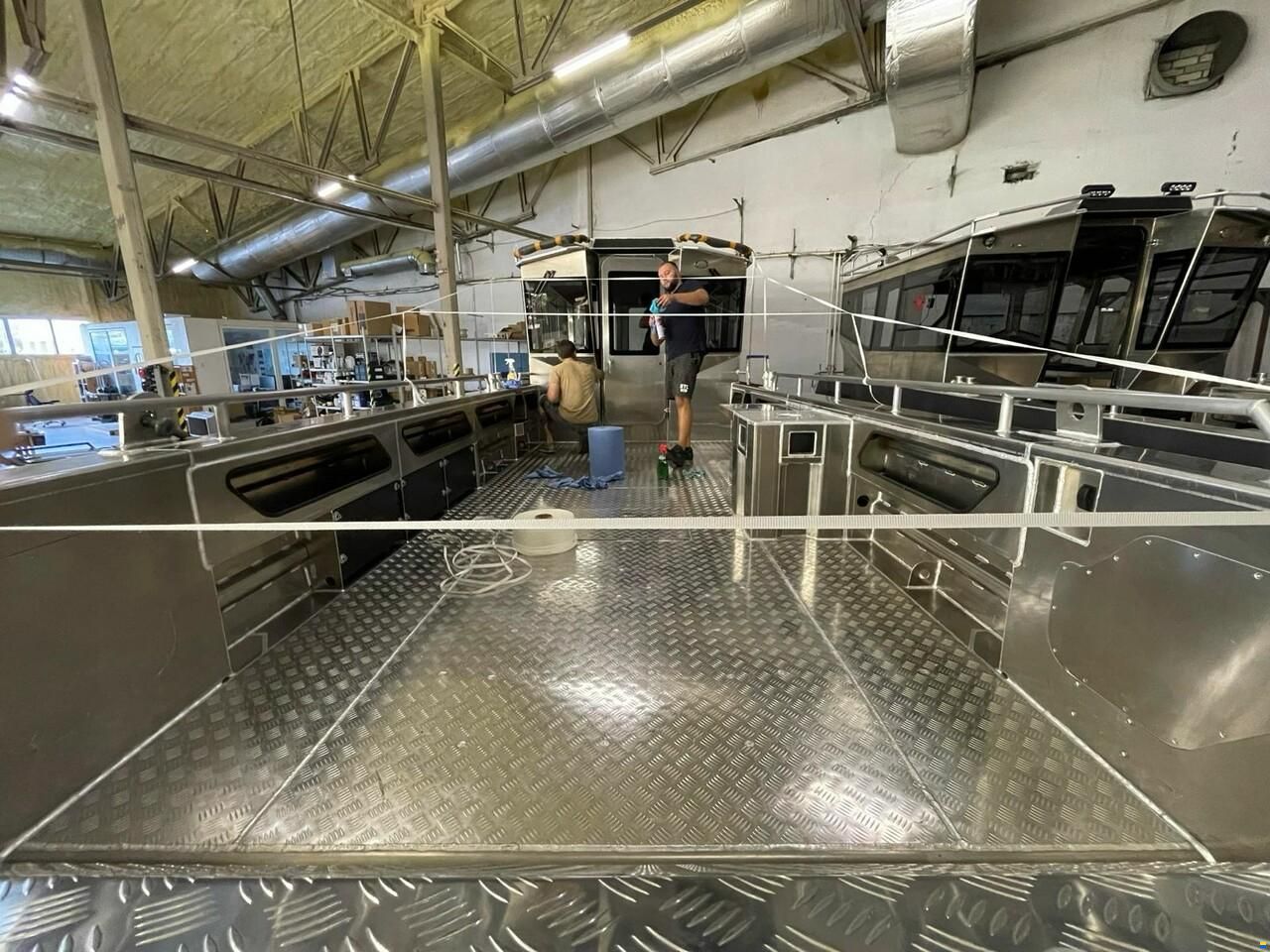

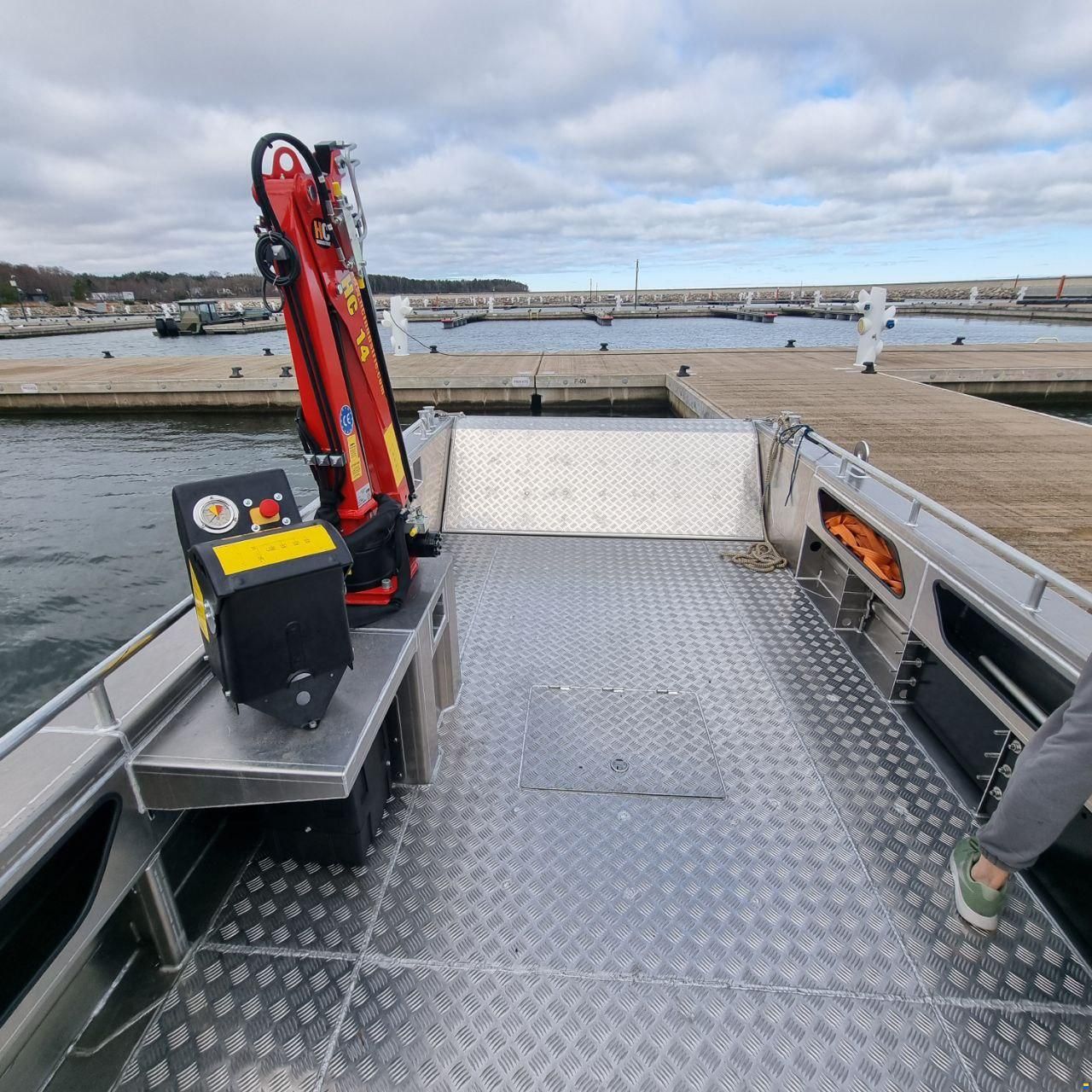

- Spacious self-draining slip-resistant deck made of checkered aluminium (3 drain holes on each side)
- Hull wrapped in grey vinyl film with additional edge treatment to prevent water ingress
- Heavy-duty welded bollards (6 pcs) located along the hull
- Decorative EVA finish inside the cabin

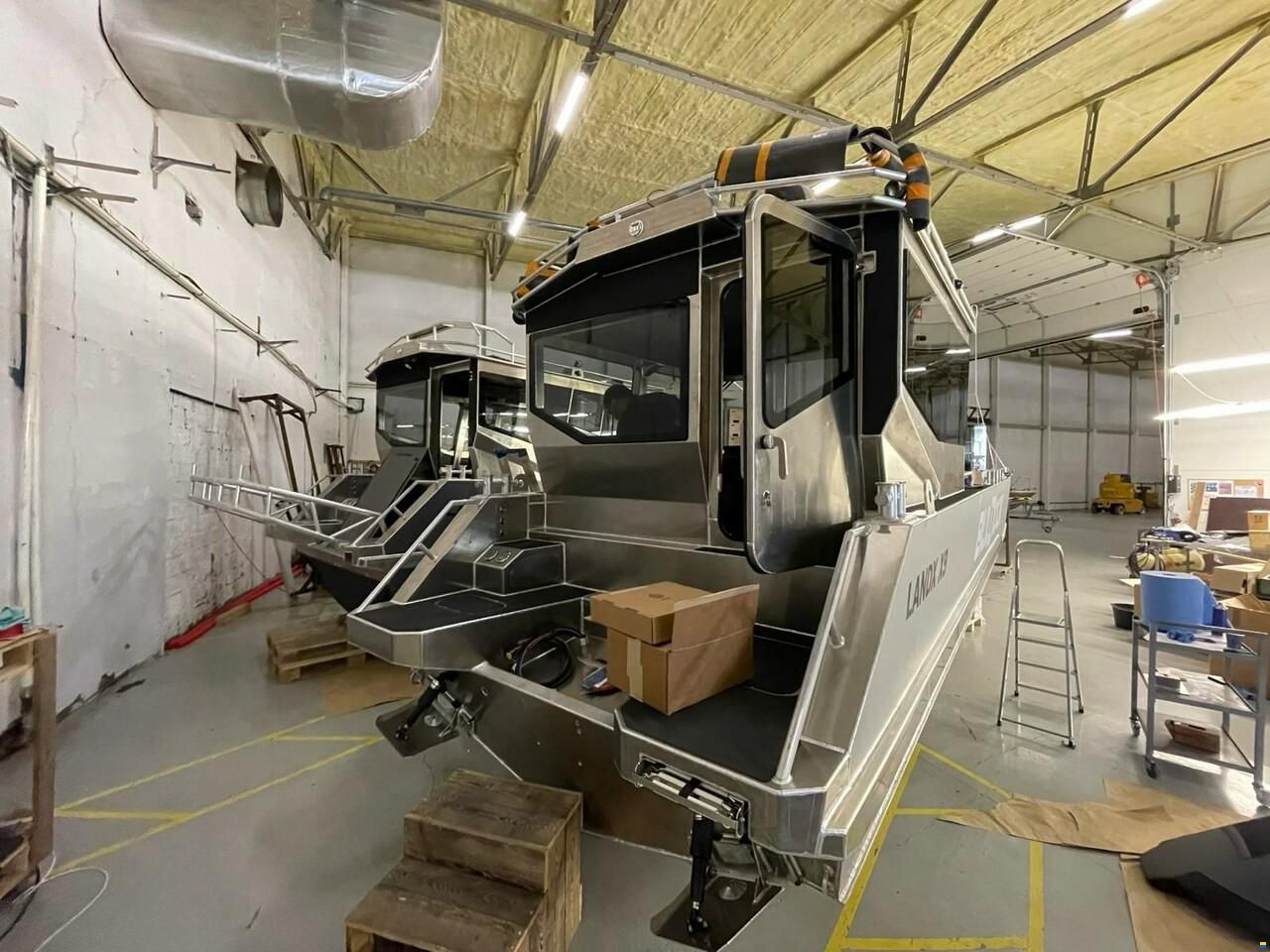

- Non-slip EVA coating on the stern platforms (port and starboard sides of the engine)

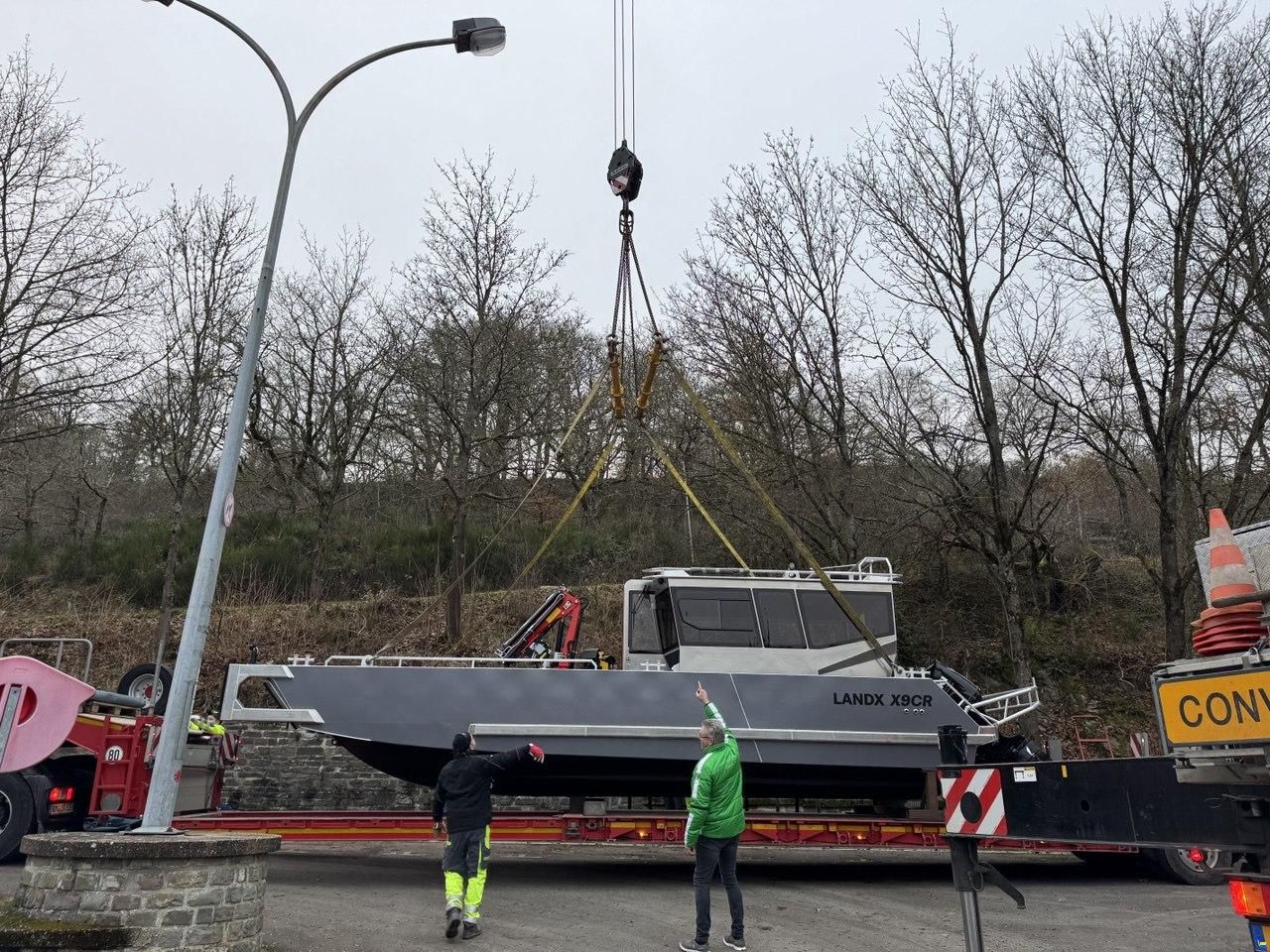

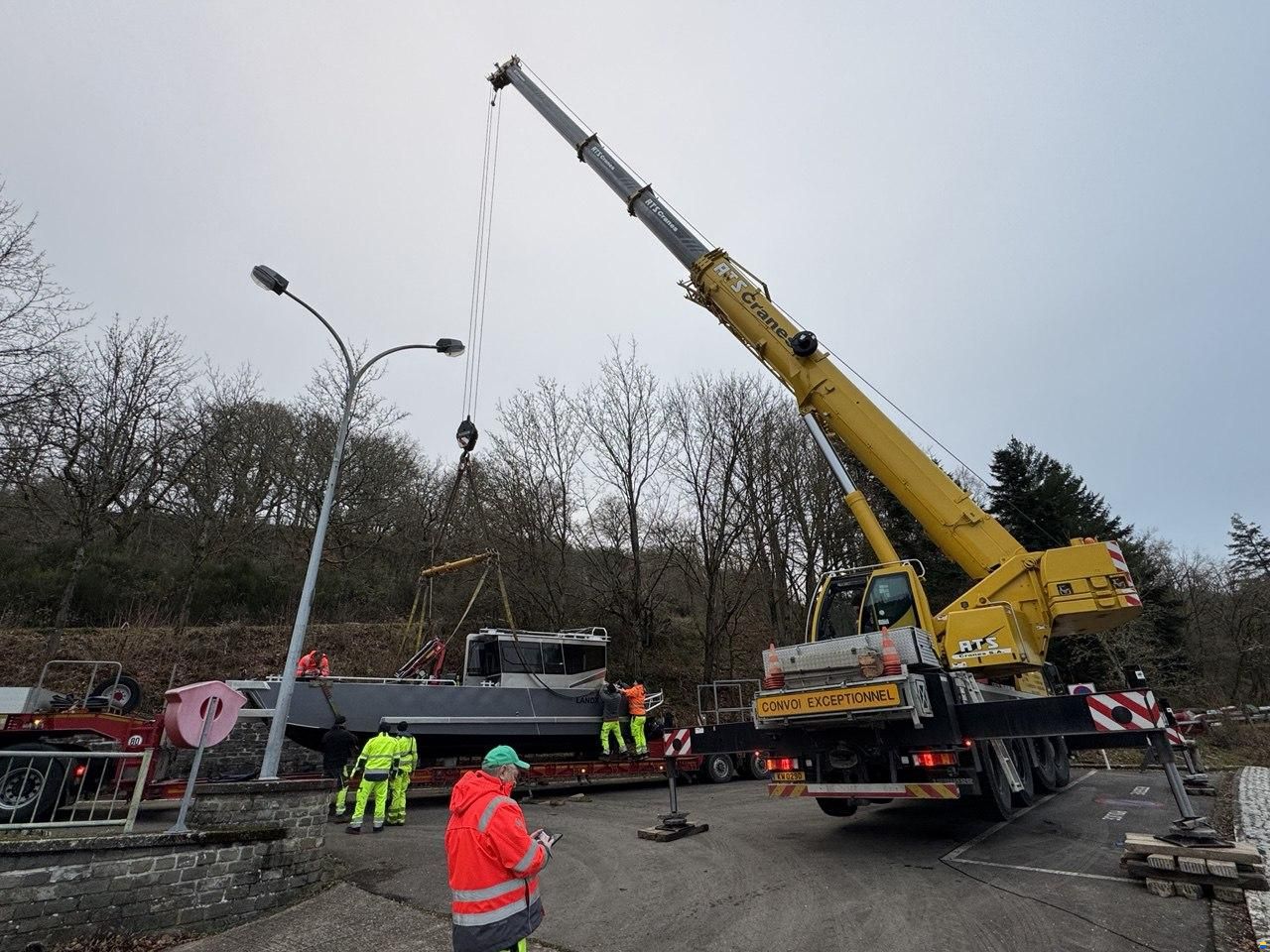

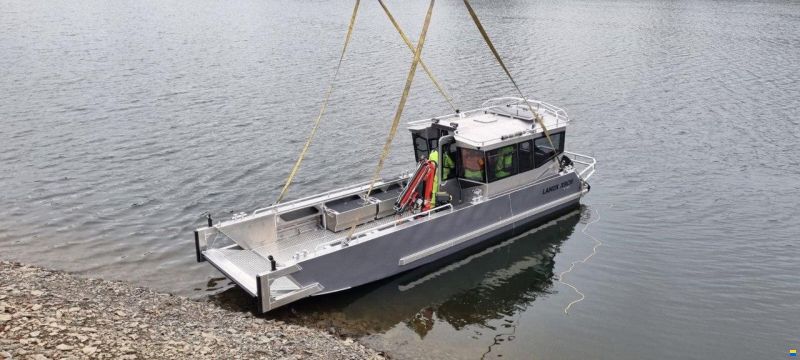

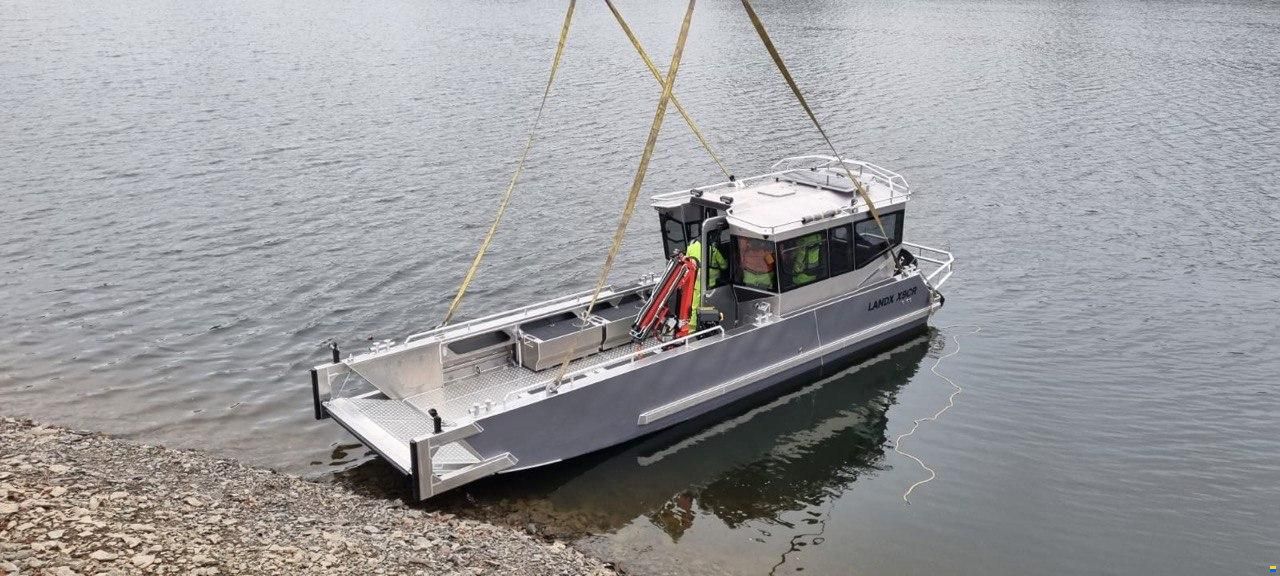

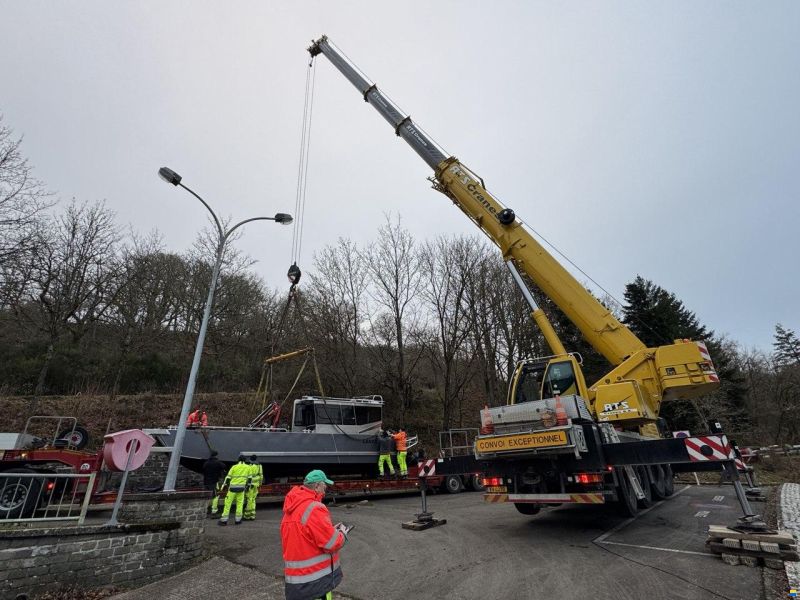

- 4 lifting eyes for crane launch and recovery, reinforced for the average weight of the placed cargo
- Shelves for storage along the sides
- Service access ports on the fuel tank
- Technical hatch for quick access to the bilge
- Cabin glazing made of tinted and tempered glass
- Bow opening door for loading and unloading cargo
INTERIOR EQUIPMENT
- Passenger cabin spanning the full width of the vessel (port to starboard)
- Hydraulic steering system for single or twin engine configuration
- Steering wheel
- Pilot and passenger seats — swivel; captain's seat with slider
- Front and rear cabin doors with fixators in the open position for ventilation
- Rear seat cushions in the cabin (removable)
- One large rear locker/bench seat (full width of the cabin) with two access hatches
- Cabin ceiling lighting — 4 pcs, two modes: white/red
- Upholstered ceiling panel with quick-release clips for easy access
- Backup manual bilge pump located at the stern
ELECTRICAL EQUIPMENT
- 2 x Main switch (divided by groups: engines/navigation and winch/bow ramp)
- 3 x Automatic bilge pump with manual override (installed in aft and bow sections)
- Control panel with 6 switches
- Fuse panel divided by consumer/circuit type
- Bow thruster (electric, includes full installation and joystick on captain's console)
- Electric lift for the bow ramp
- Navigation lights (LED, port and starboard; anchor light on rear of cabin)
- Top light (LED)
- 2 x batteries included
INSTALLED OPTIONS
1. Webasto 4kW heater system
2. Trim tabs
3. Opening ventilation side windows
4. Shock absorber pedestal for captain and passanger seats
