Holiday Boat Sundeck 57/ passenger Catamaran with a payload of 102 passengers
Holiday offers you a successful business idea!
We offer a professional, proven passenger ferry combined with an exclusive service and entertainment establishment.
This is the first passenger vessel that operates 24 hours a day.
During the day, the catamaran operates as a passenger ferry and restaurant, and in the evening and at night as a nightclub and disco. At night, the catamaran in port easily takes 50 to 200 people on board for the disco. Some guests stay in the bar, others go to the upper deck, rest from the music and can relax.
On the catamaran you can easily organize a restaurant and prepare and serve elaborate dinners. Our catamaran is a professional tool for 24-hour turnover. This catamaran also works in the off-season, as it has a professional heating system that allows it to be used all year round. Purchasing the catamaran is a 100% secure investment, which is paid back practically after a year. Our catamaran is a proven and trouble-free vessel, requiring no maintenance and repairs.
The catamaran has fully functional AC heating and air conditioning. Thanks to these installations, the vessel can be used all year round. Even in winter. The high-pressure air conditioning has vents for the windows to prevent evaporation of the glass in low temperatures.
Class: inland navigation
Number of seats in the cabin: 68
Number of standing seats in cabin: 50
Number of sun deck seats: 50
Meet the world's unsinkable HBSD 57 passenger catamaran with a capacity of 102 passengers.
The catamaran charges electricity via solar panels, shore power or a diesel generator installed in the vessel. It is a fully autonomous energy catamaran, with visits to port limited to refueling fresh water and emptying the holding tank.

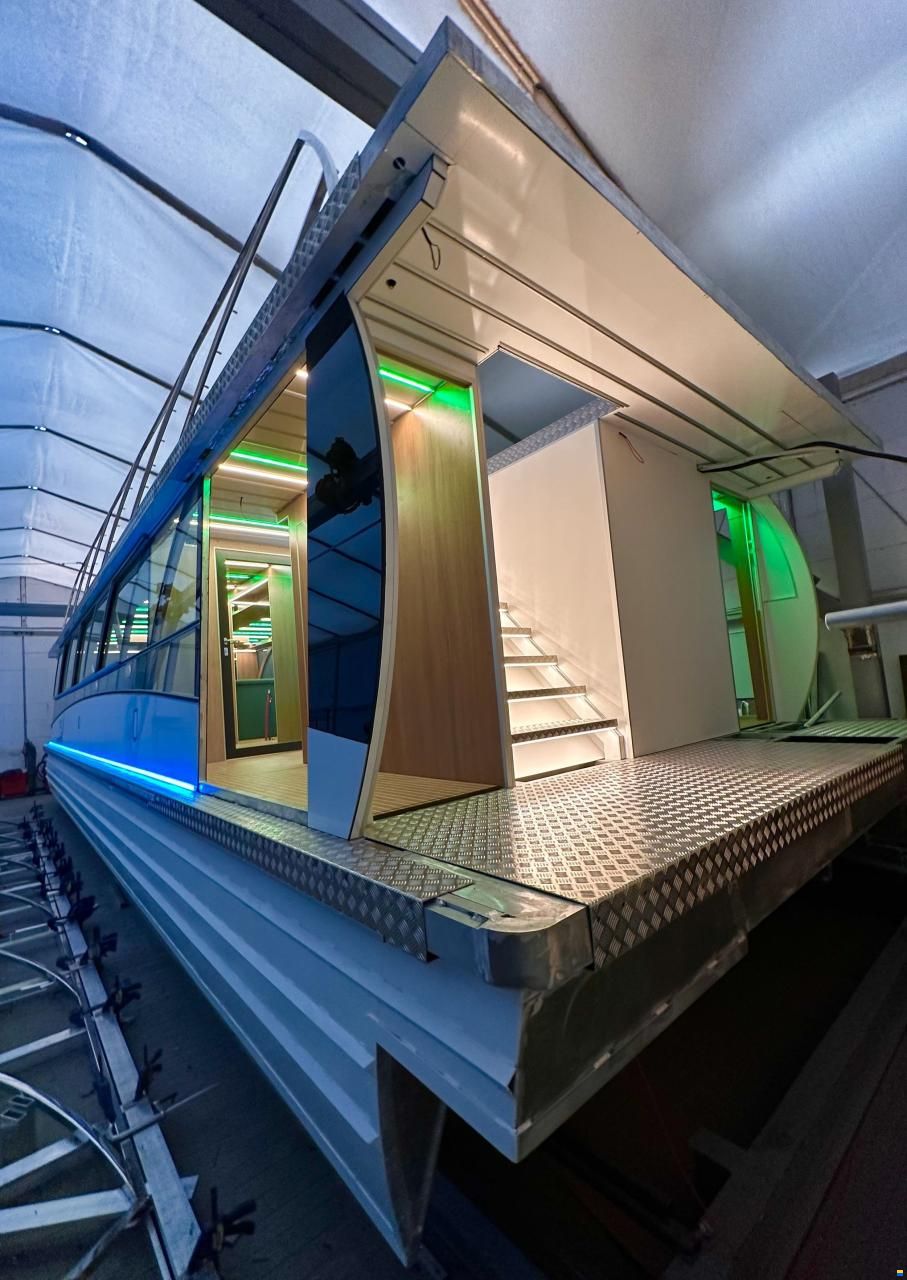

The catamaran is made using self-supporting construction technology, that is, the floats, deck, wall and roof structure are welded together to form a structural monolith.
The catamaran is made of aluminum acid-resistant steel and glass.
Thanks to the materials used, it requires no maintenance. It does not need to be repainted or protected from corrosion.
Walls made with full insulation technology guarantee full insulation in winter and summer.
Interior comfort is provided by electric heating and diesel heating.
There are heated sanitary facilities.
Our catamaran is equipped with a state-of-the-art ISMA intelligent management system, which can be controlled via a multimedia tablet or phone from anywhere on earth via a fully encrypted Internet connection. You can also view video and audio on your phone from the 8 IP cameras installed on the vessel.
8 IP cameras installed on the ship, where you can set alerts when motion is detected in areas you specify. It is also possible to locate the ship via GPS.
With ISMA , you can also access all media information on board at any time:
fuel
gray water
clear water
and:
state of charge of the batteries
temperature
humidity
air quality (amount of bacteria)
The device is also equipped with a disinfection system ANTI - COVID UV
General
Other: HBSD 57

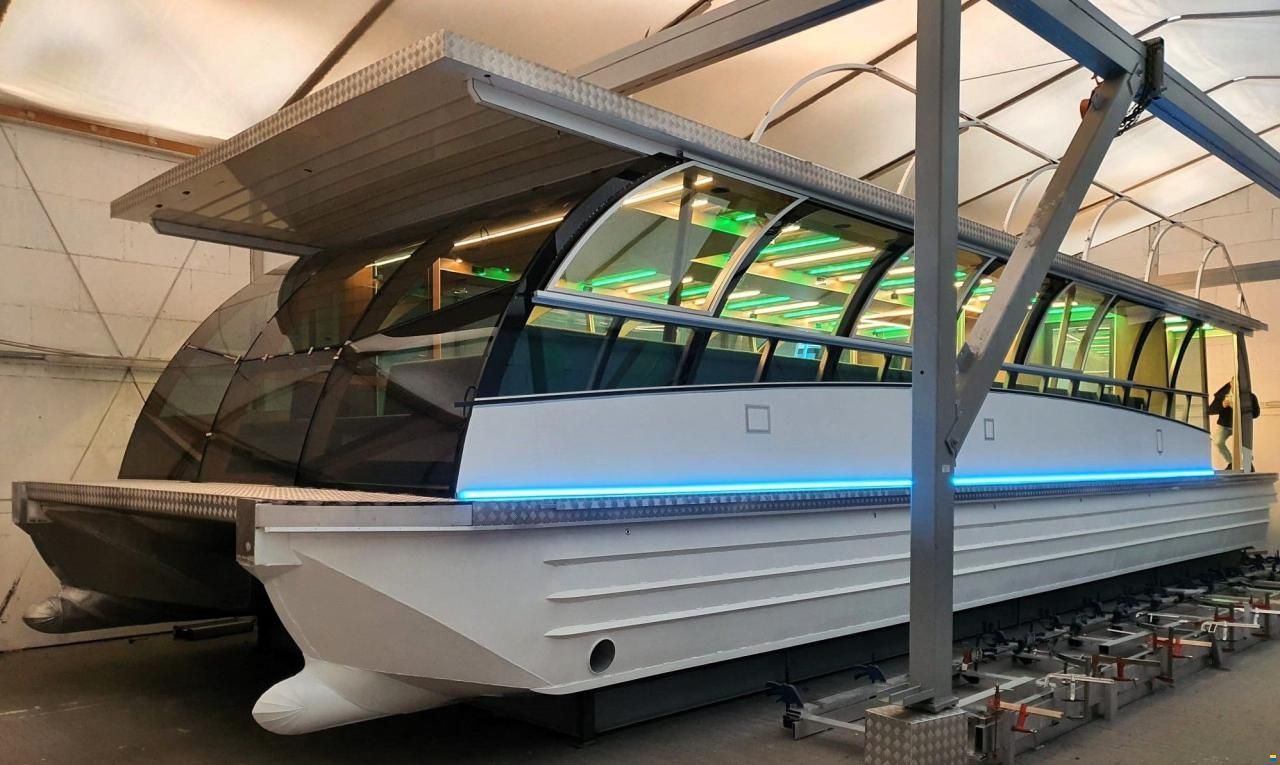

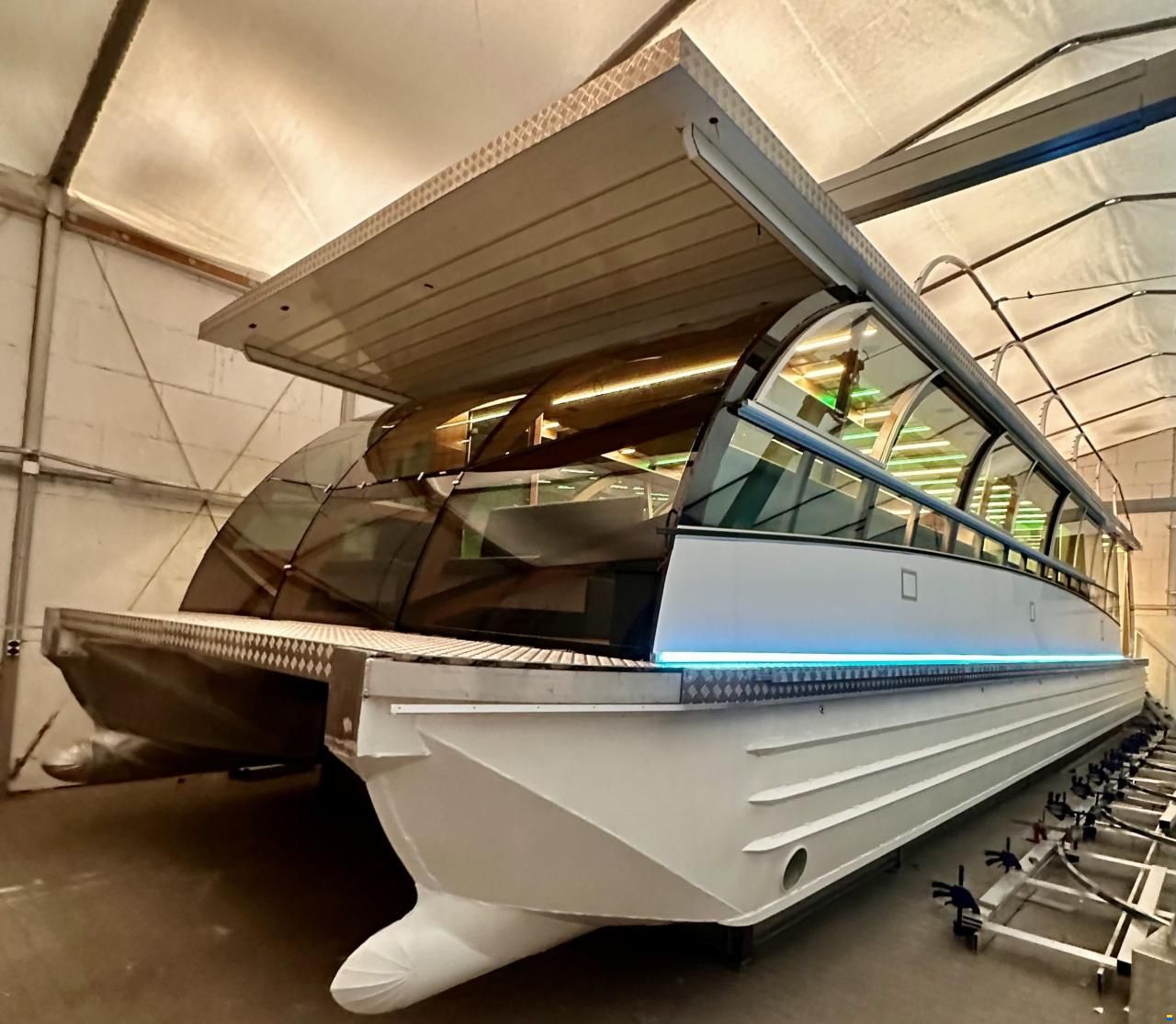

Catamaran with external dimensions of 17.3m x 5m x 3.8m (LWH) v
- weight of about 16 tons
Cabin dimensions 4.63m x 14.2m
Premises:
Passenger space with bar with kitchenette, toilet, technical room
2 aluminum floats with dimensions: 1.2 m x1,4 m x 16.40 m
aluminum construction
sundeck
stainless steel railings for stairs and sun deck
Vetus Bov PRO thruster V50-BOWA0651
solar recharge 4 x 455 W (8 sq m)
100 A port charging
fuel tanks 400 +100 l
faecal tank 300 l
clean water tank 200 l
II. Spatial division and development:
Wheelhouse:
cockpit
captain's chair
steering wheel
indicators
switches
monitor
engine clocks
hydraulic control of engines
engine maneuvers
beep button
dual USB QC3.0 charging port

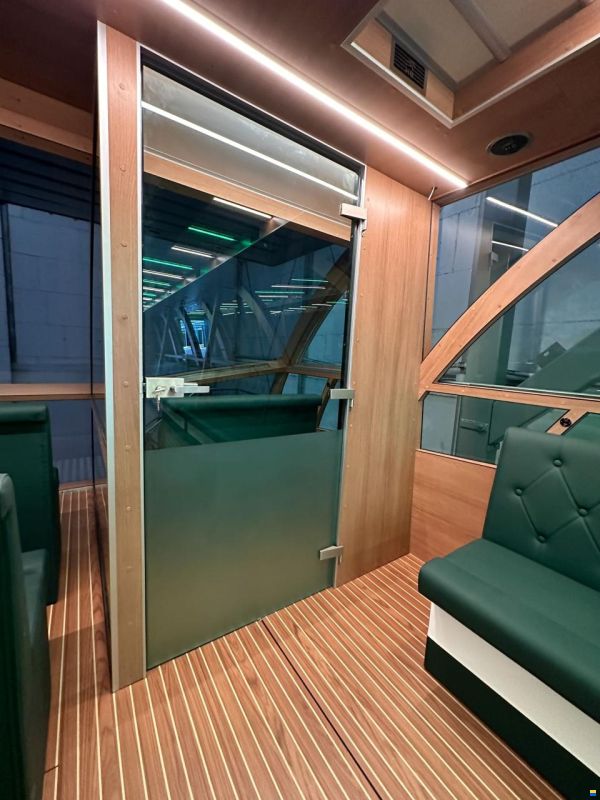

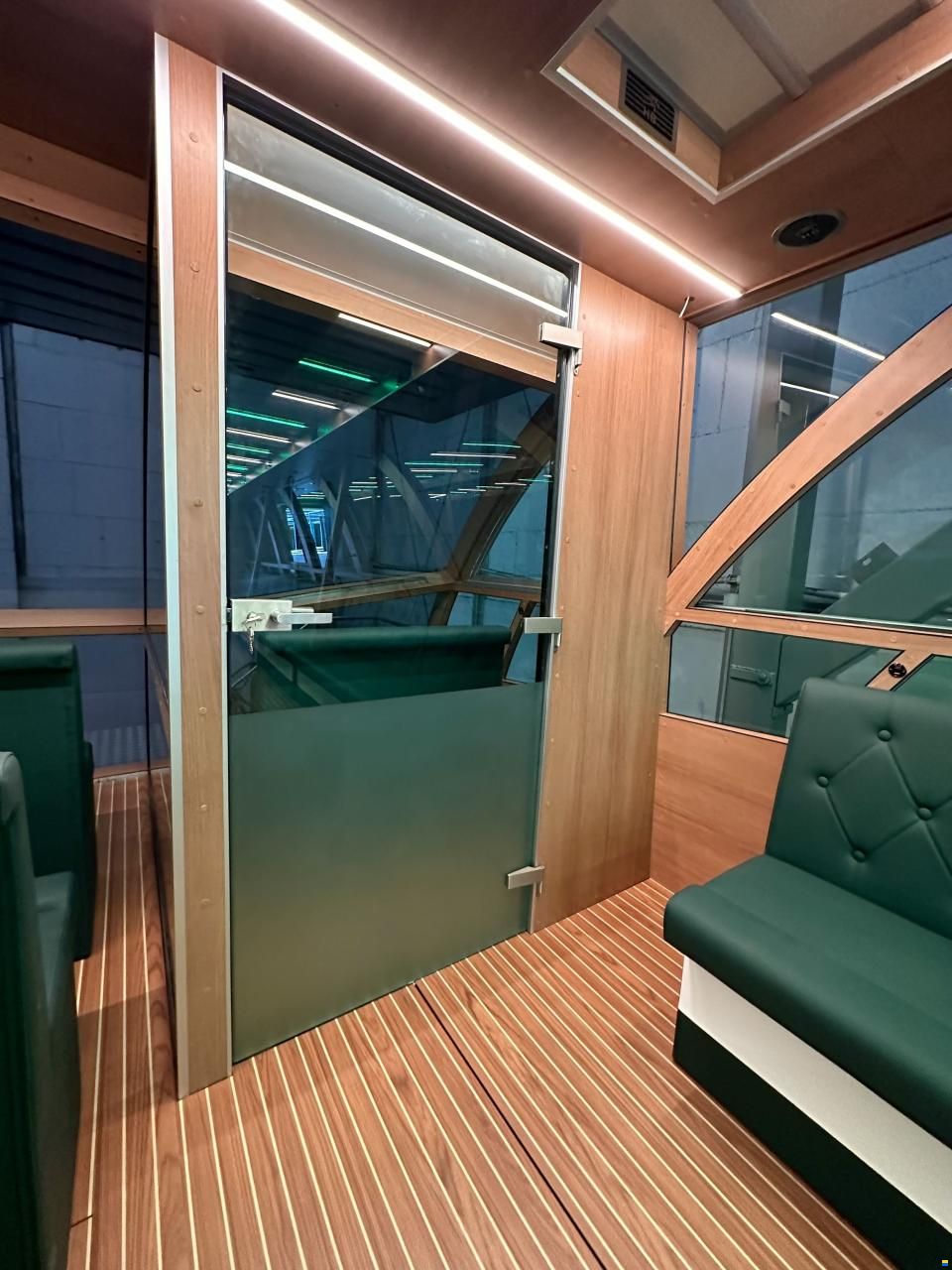

the entire control room is separated by fireproof glass windows with lockable doors
wipers with feathers for the captain on the windshield

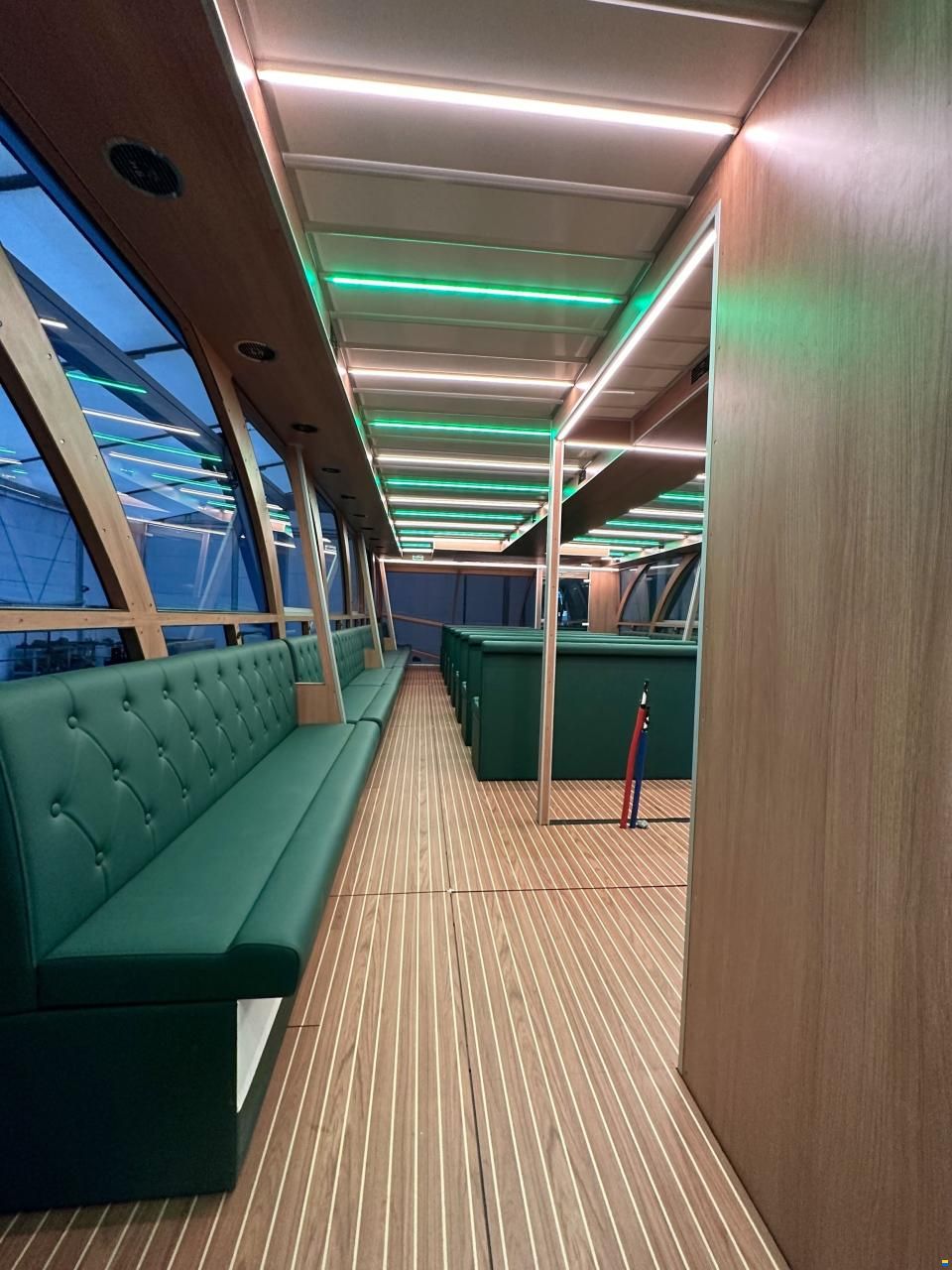

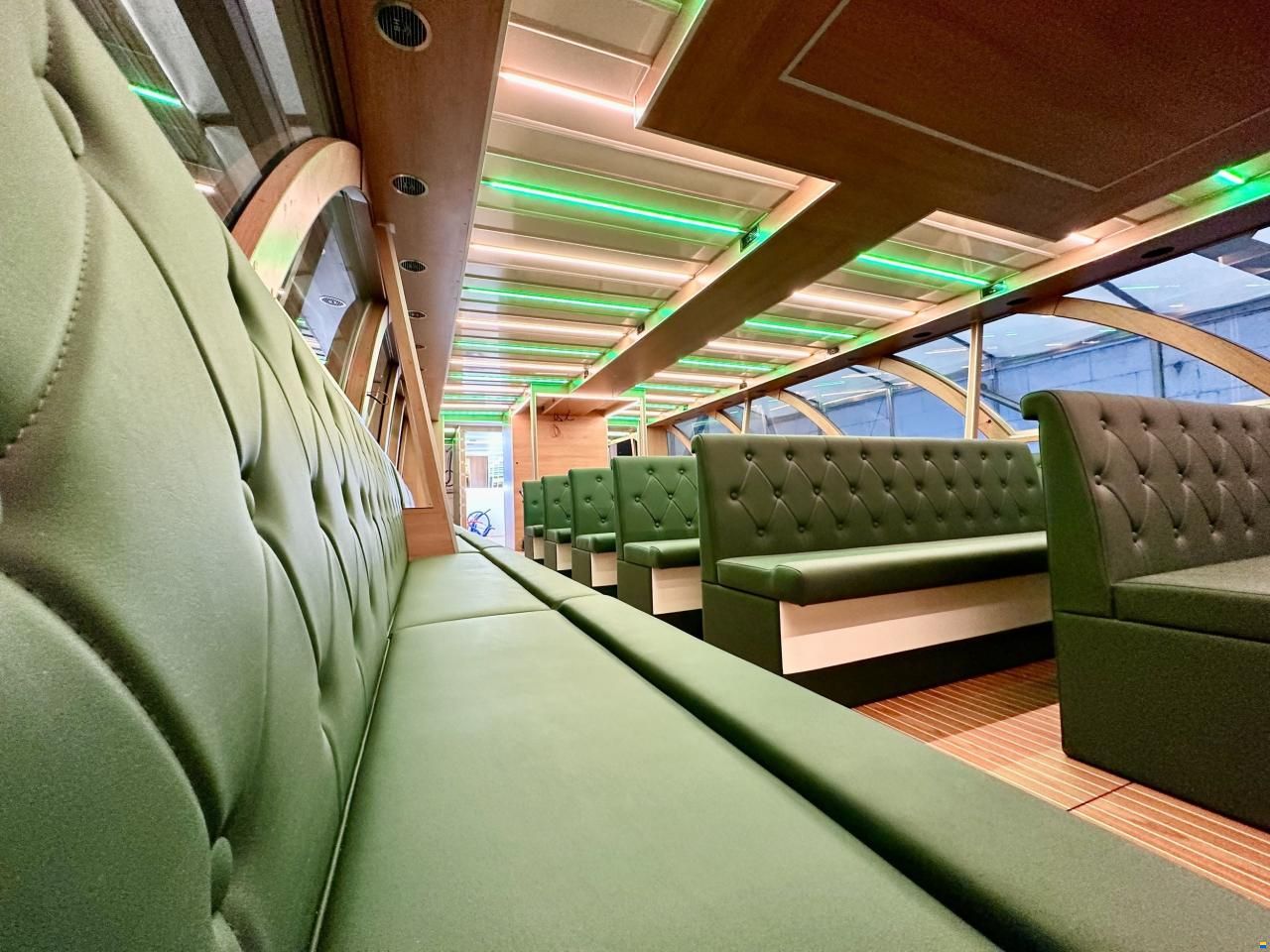

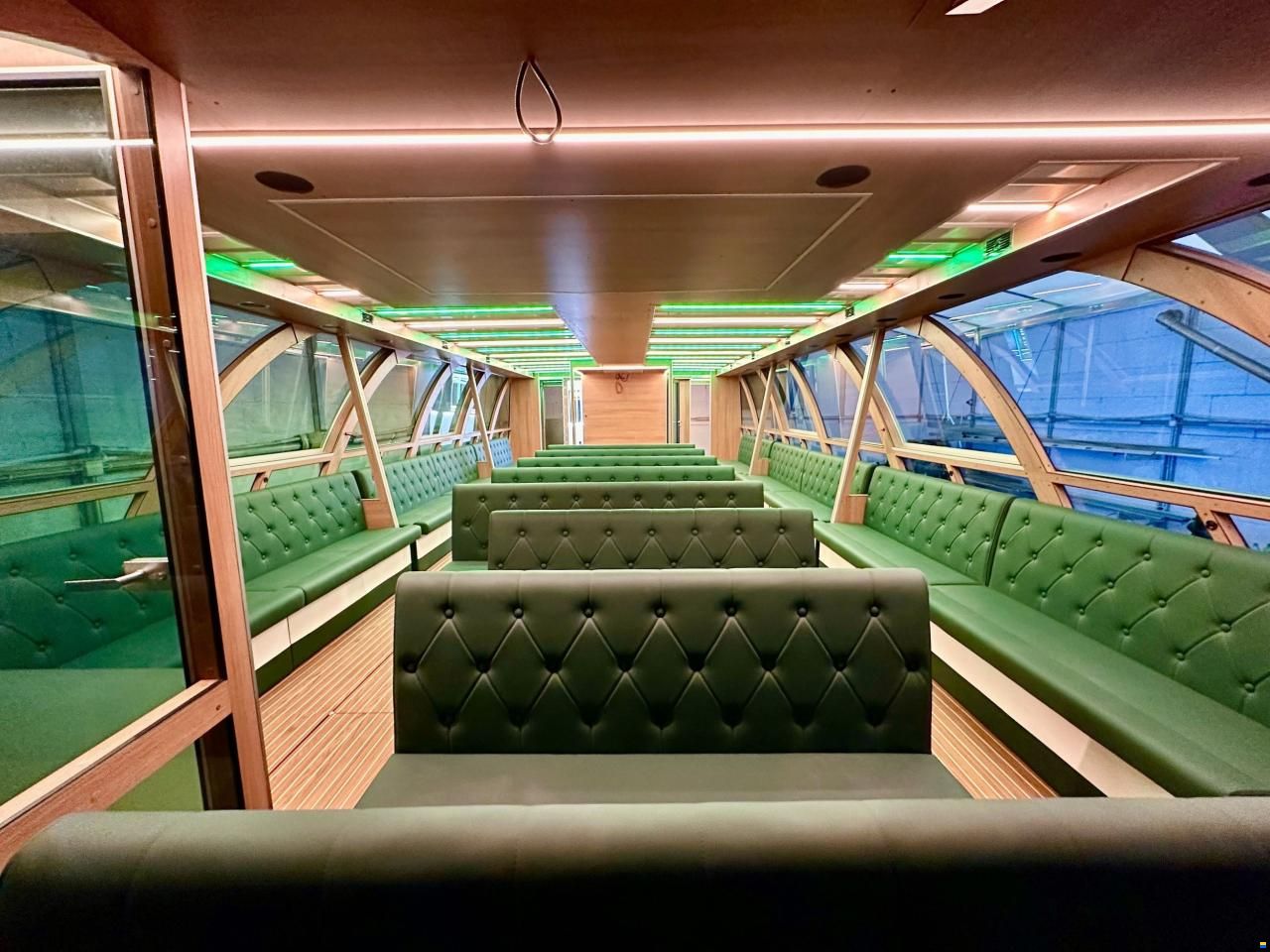

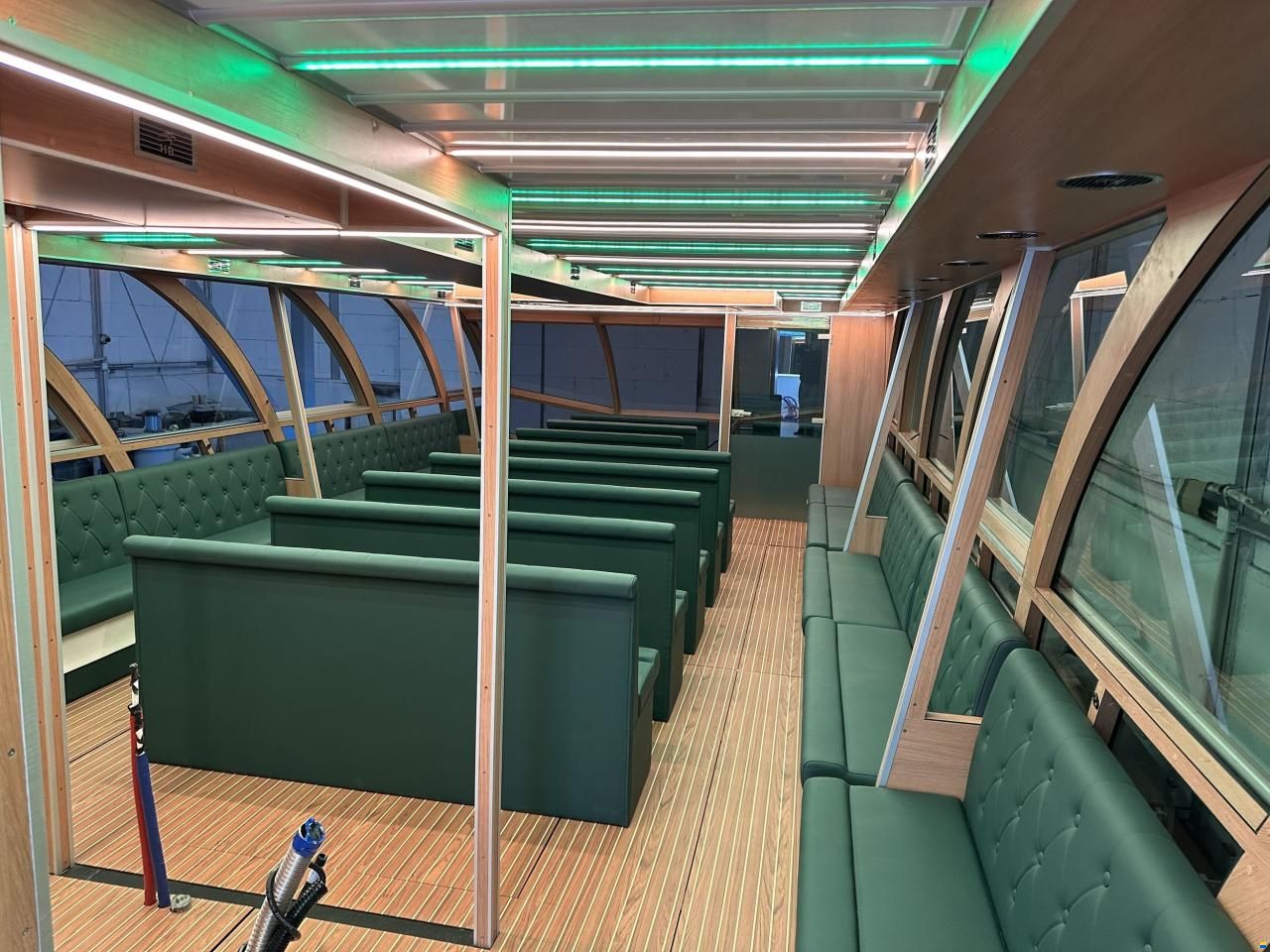

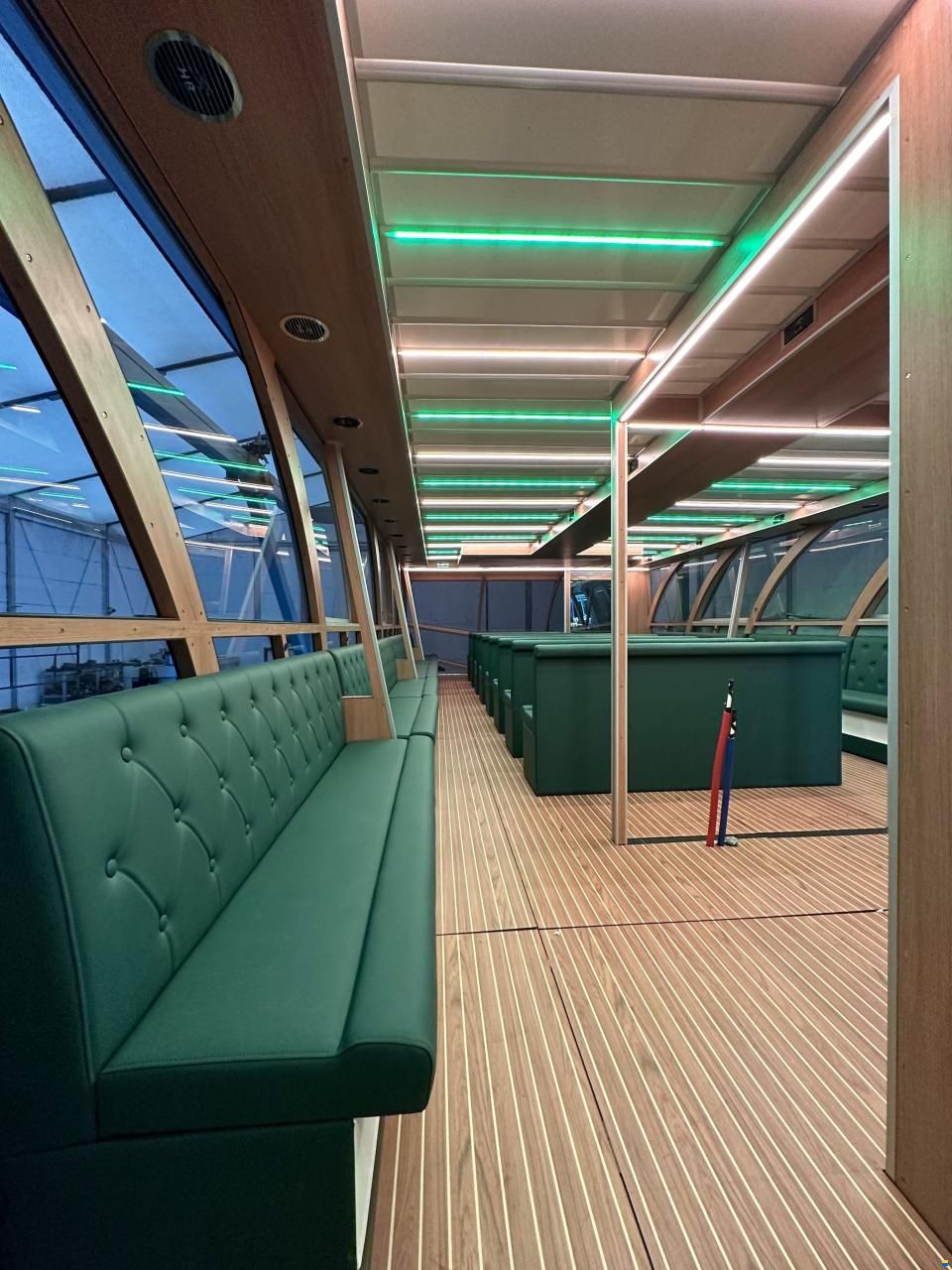

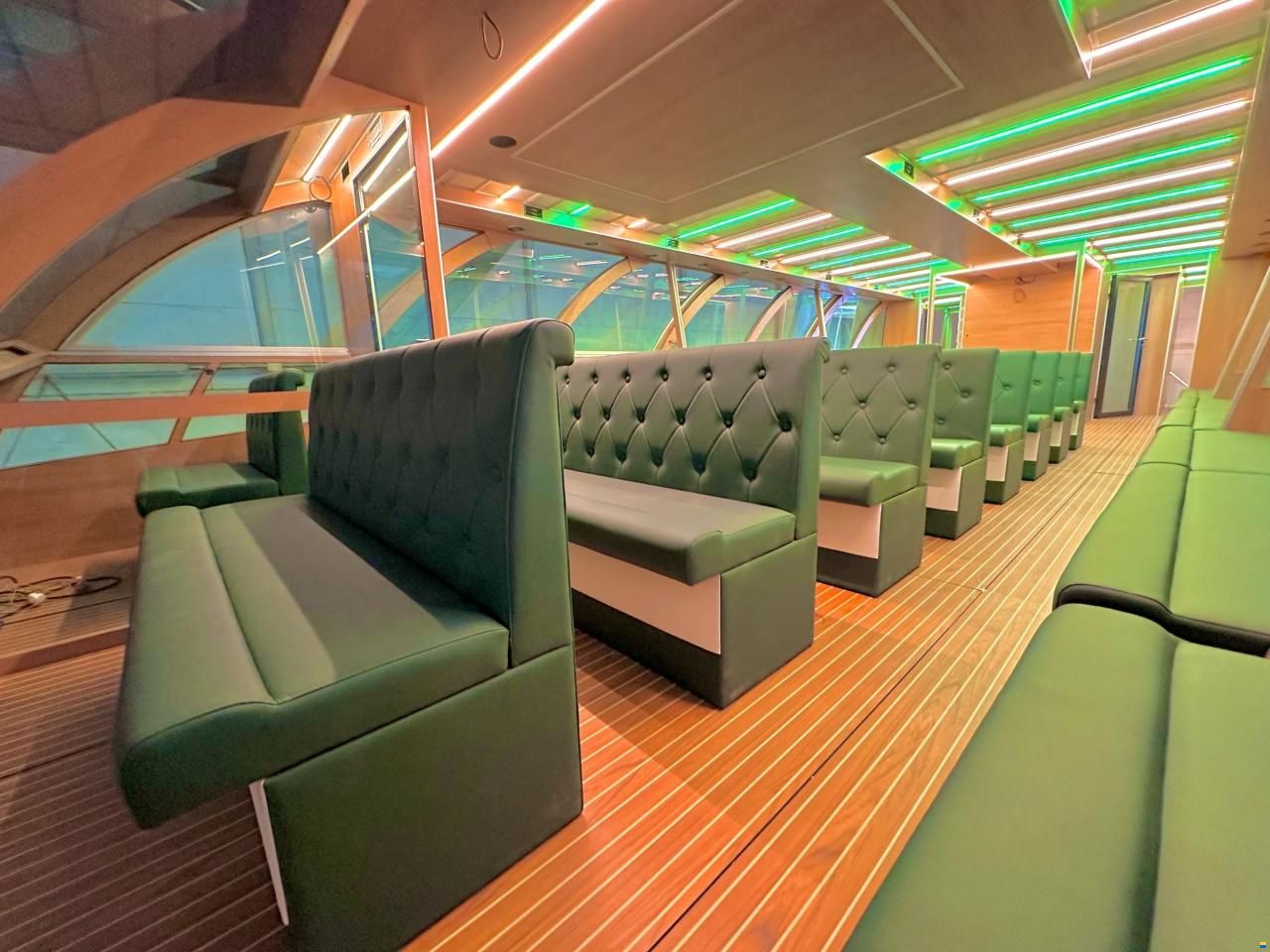

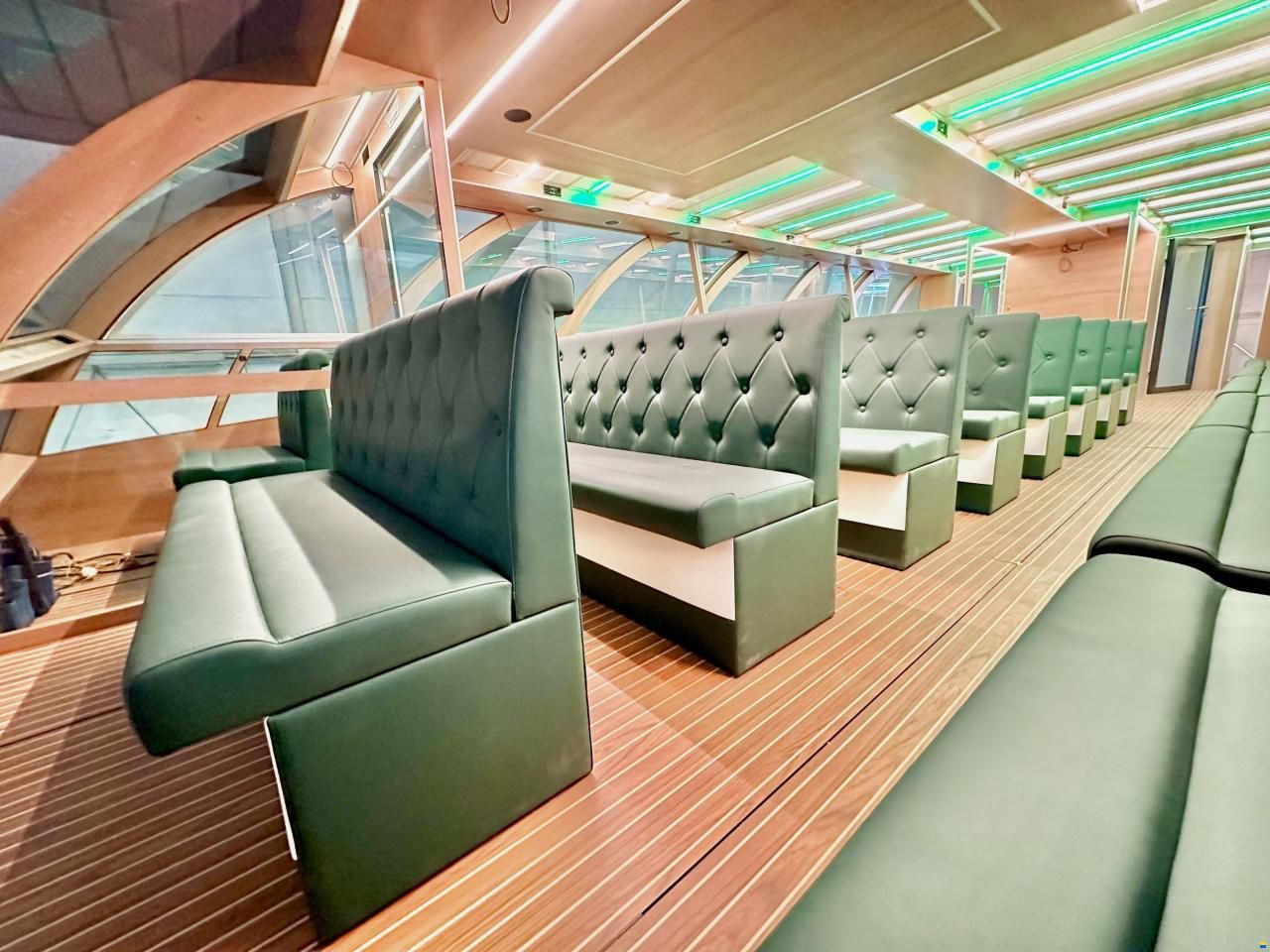

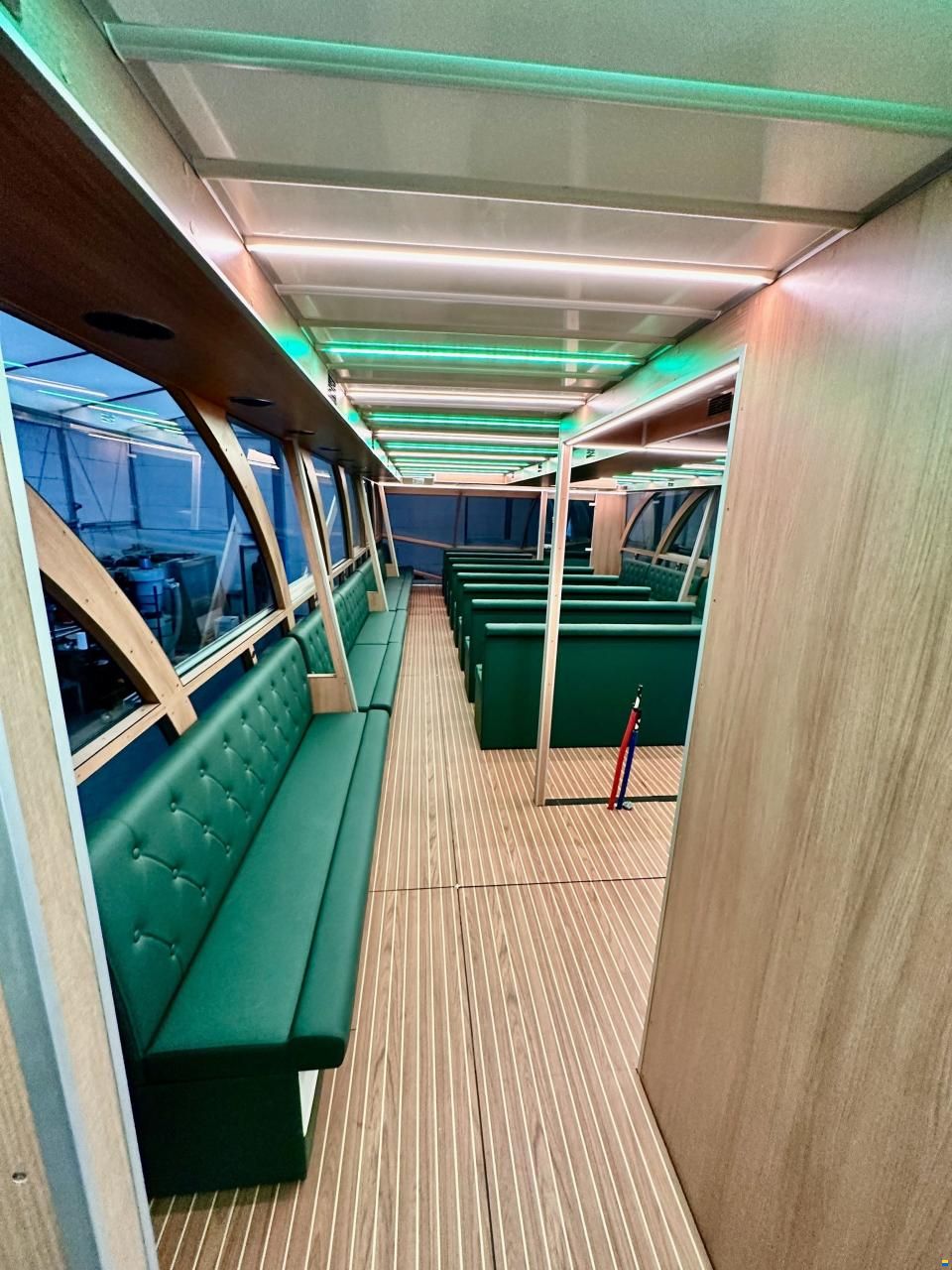

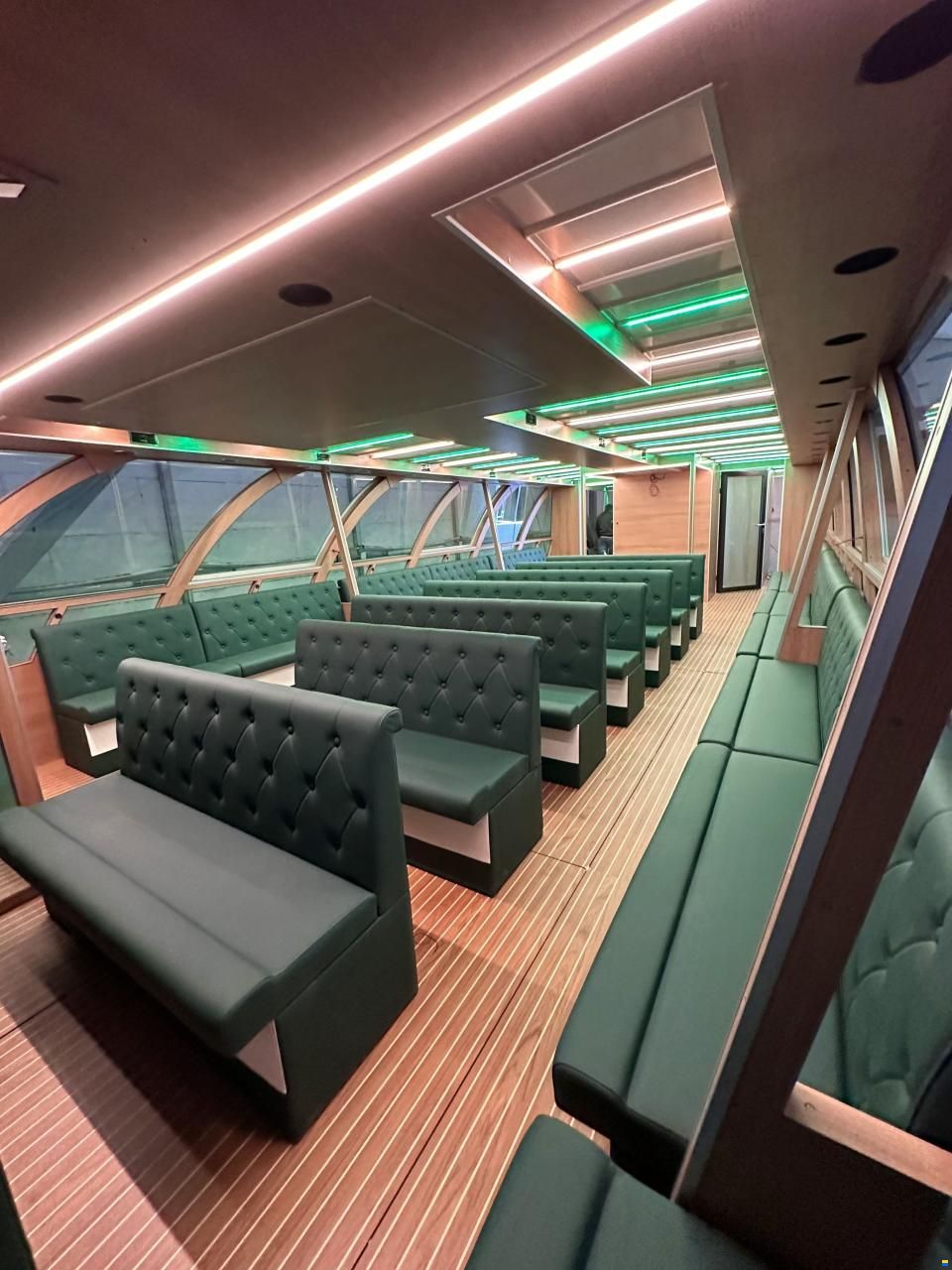

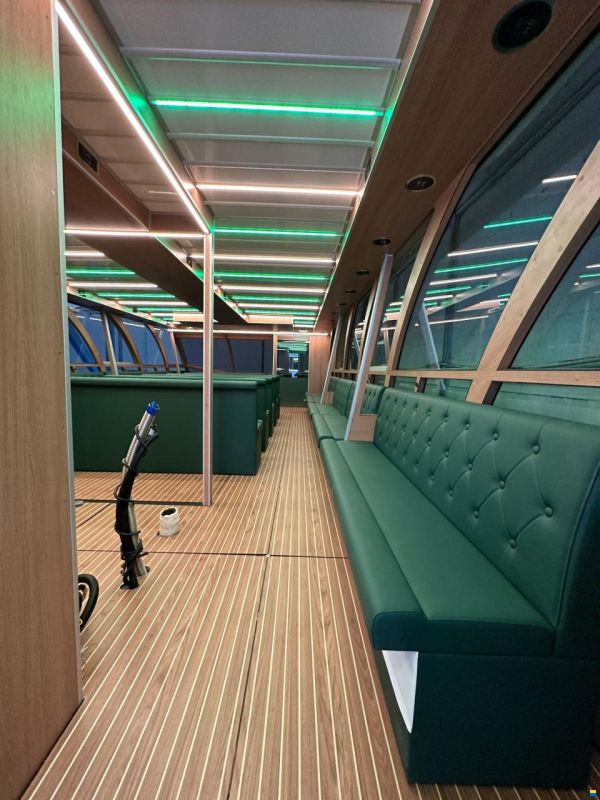

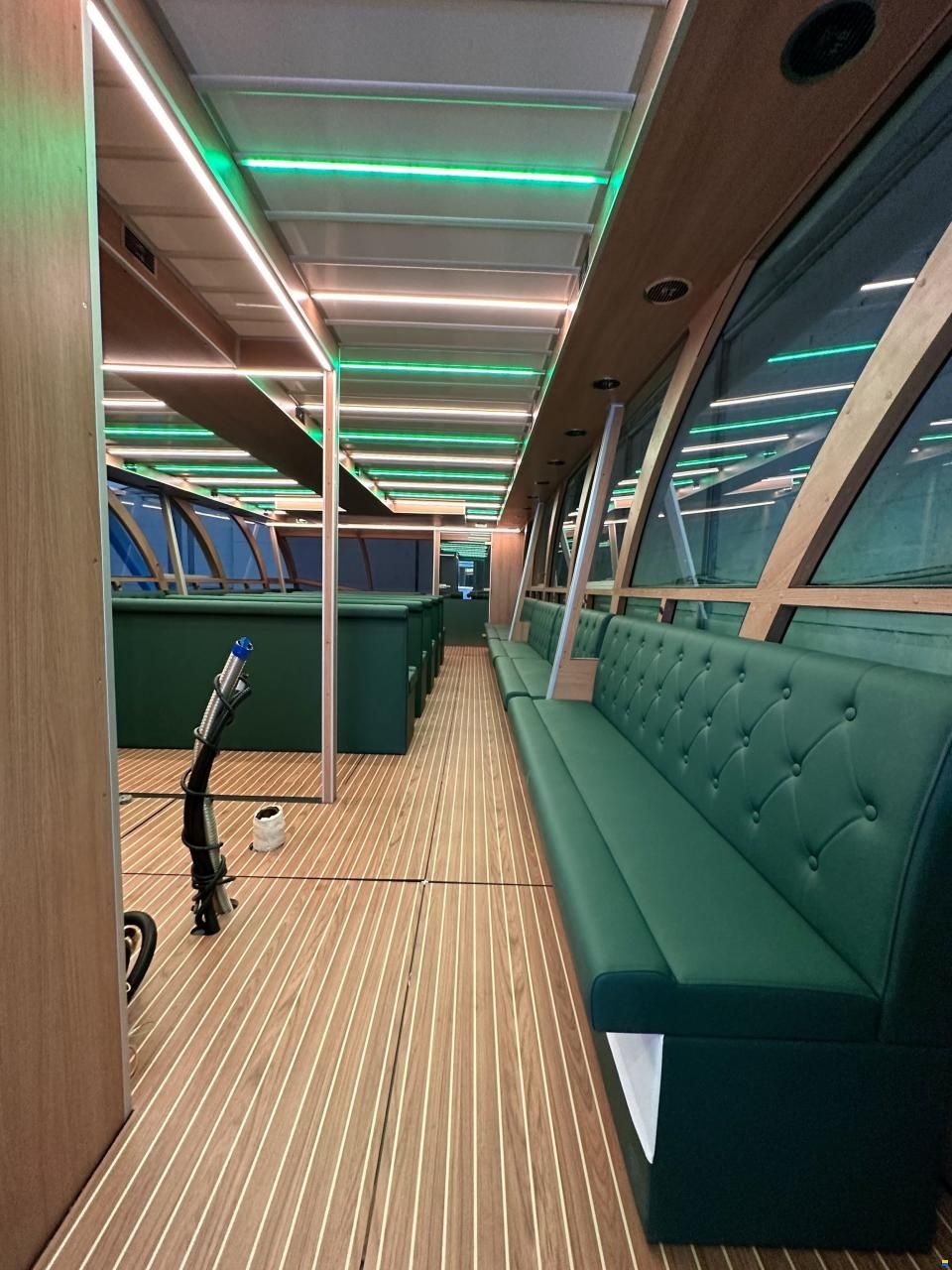

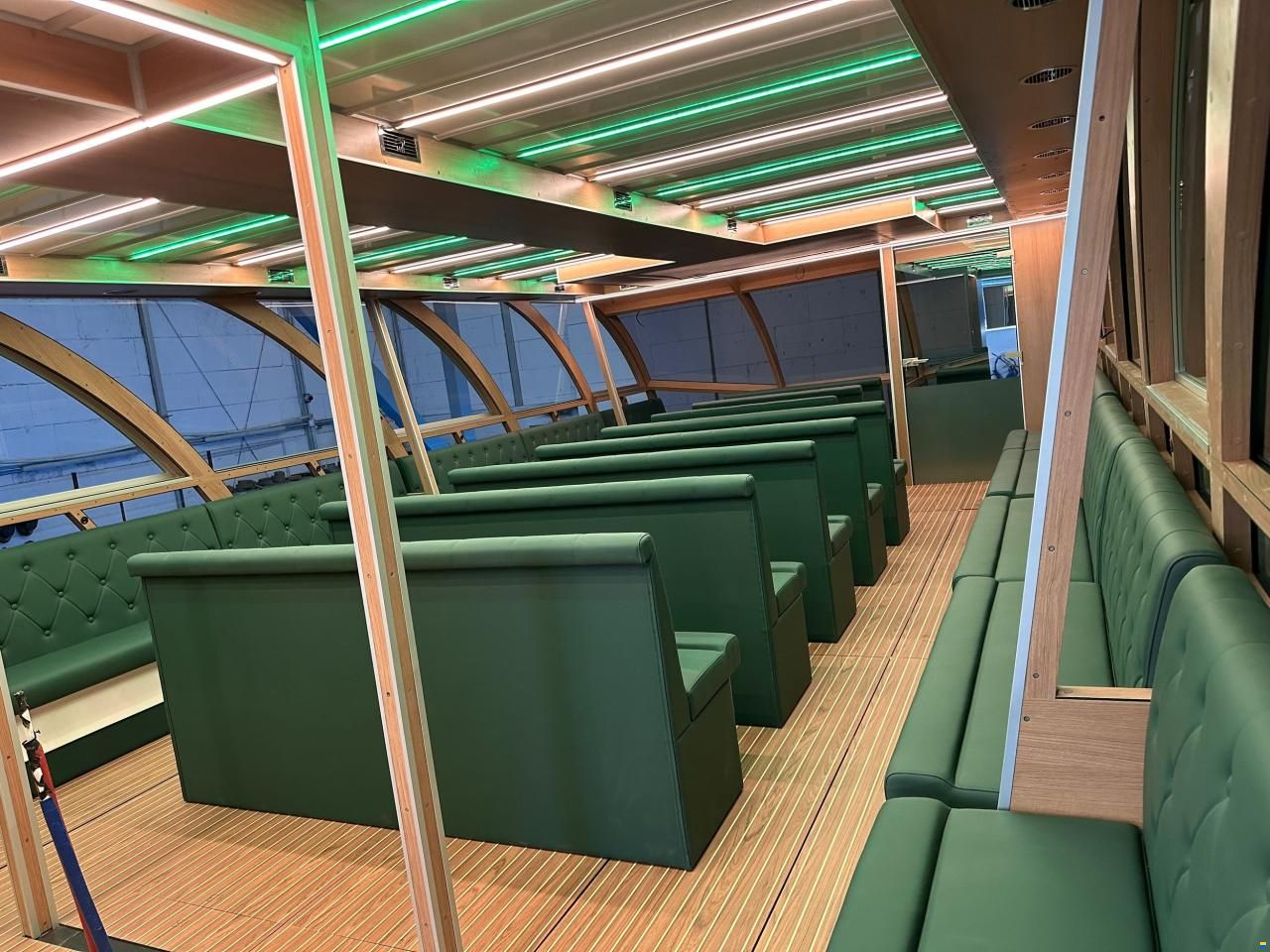

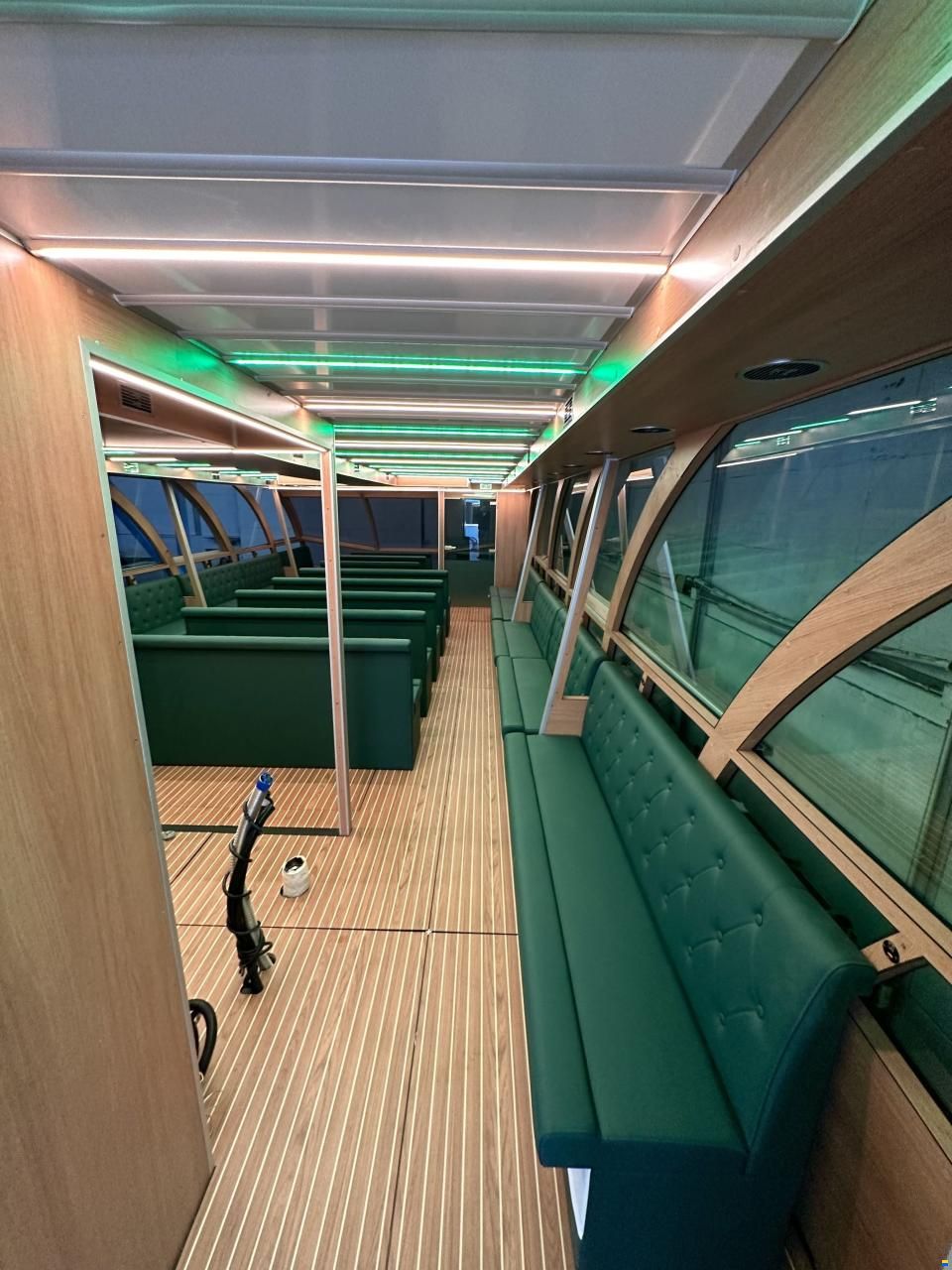

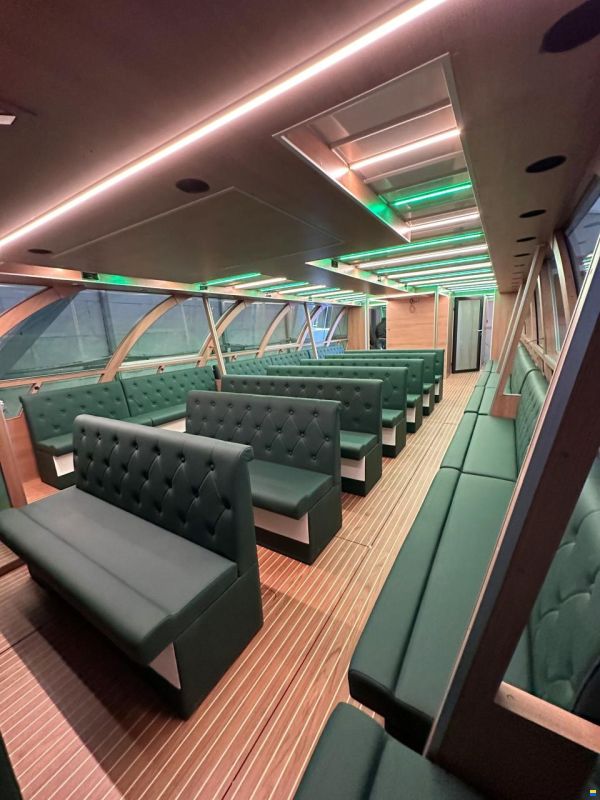

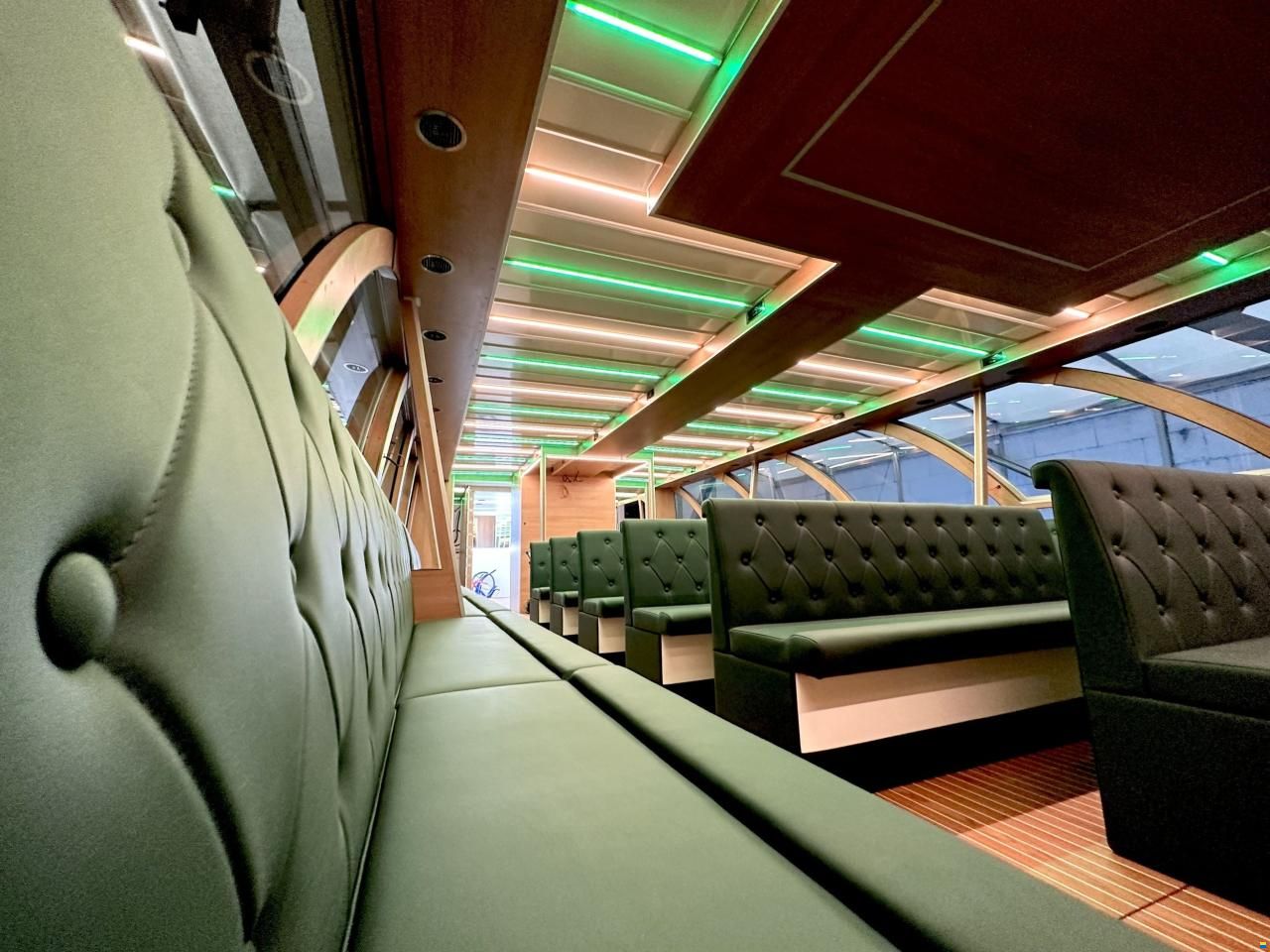

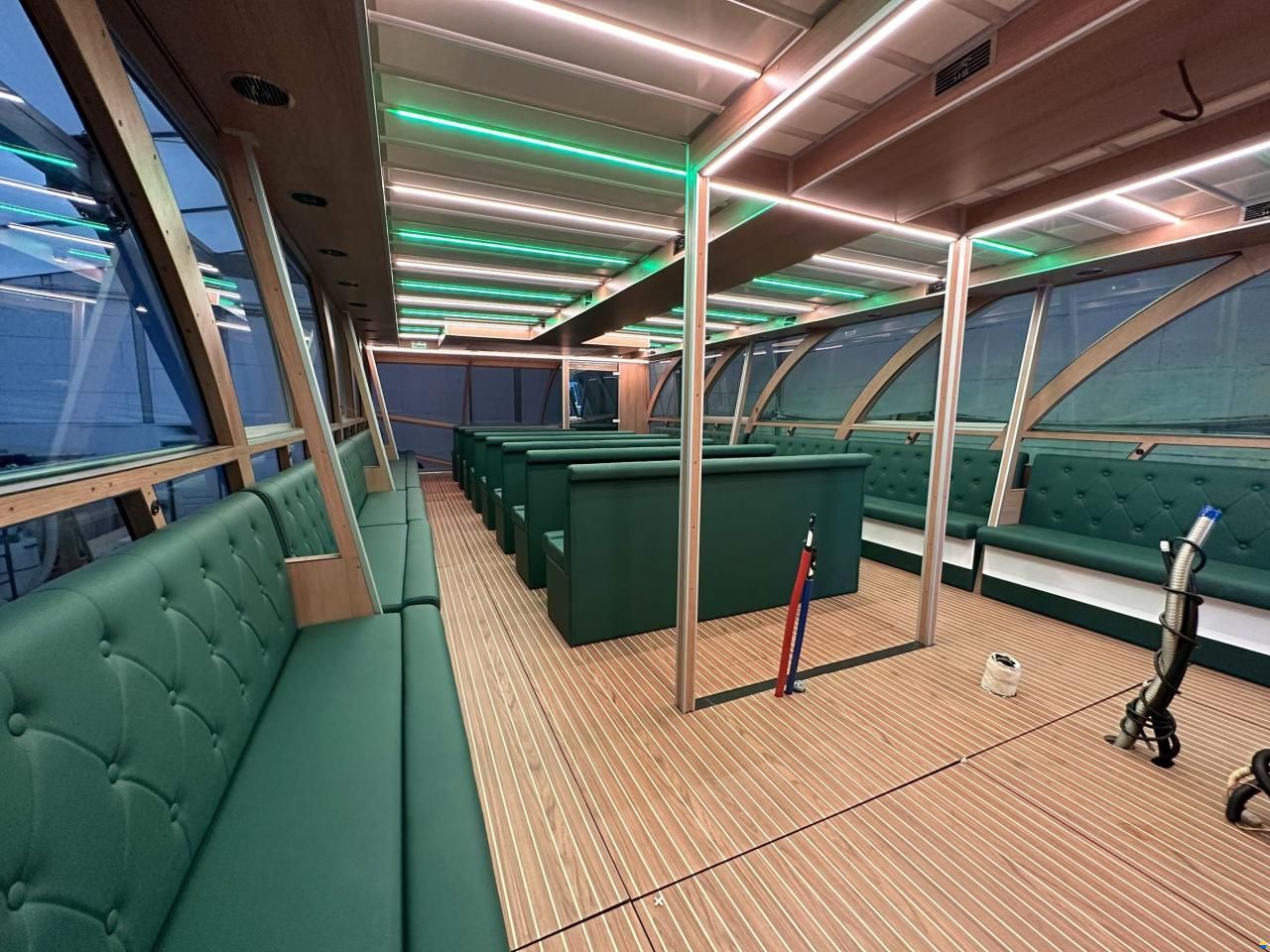

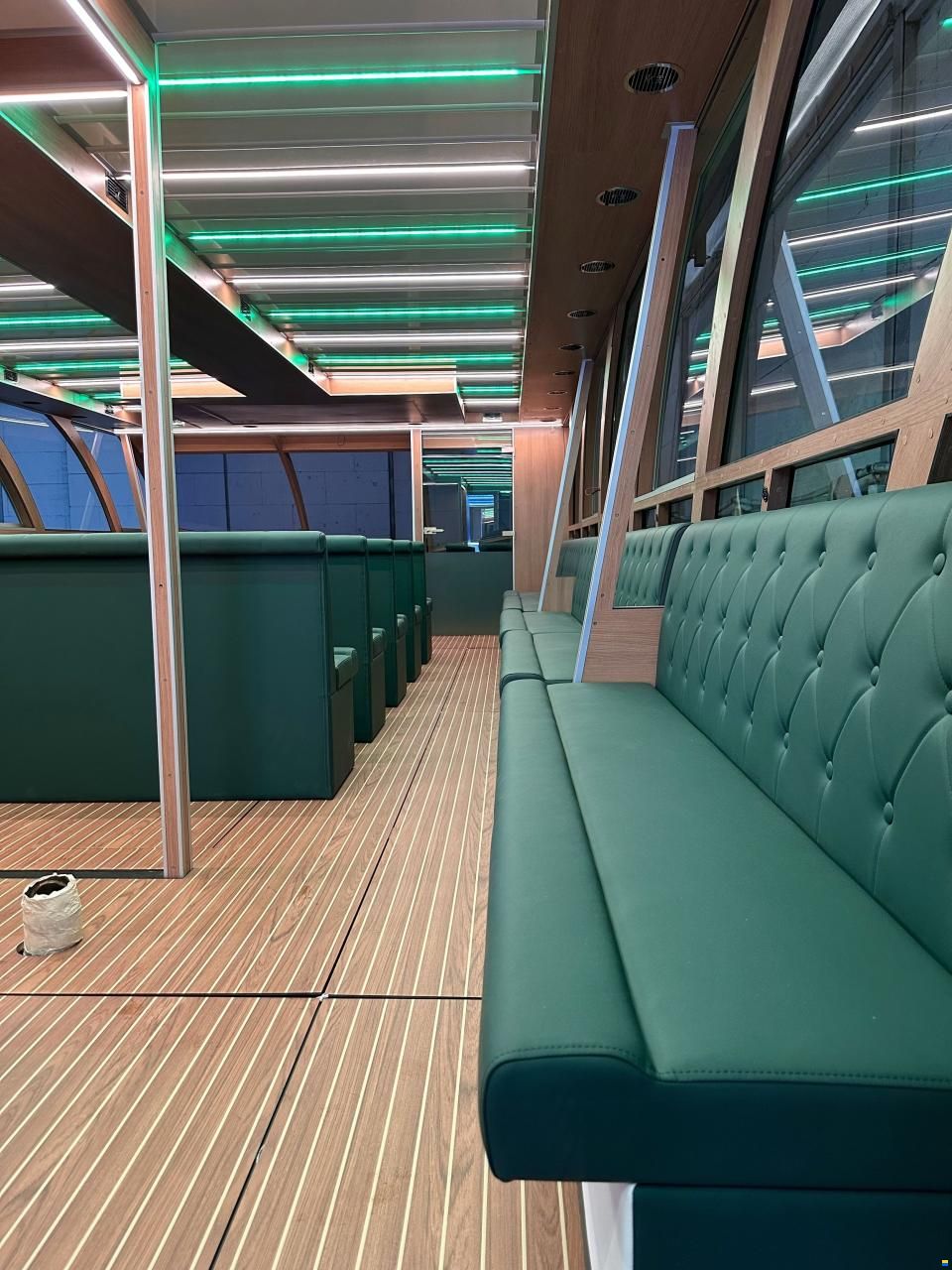

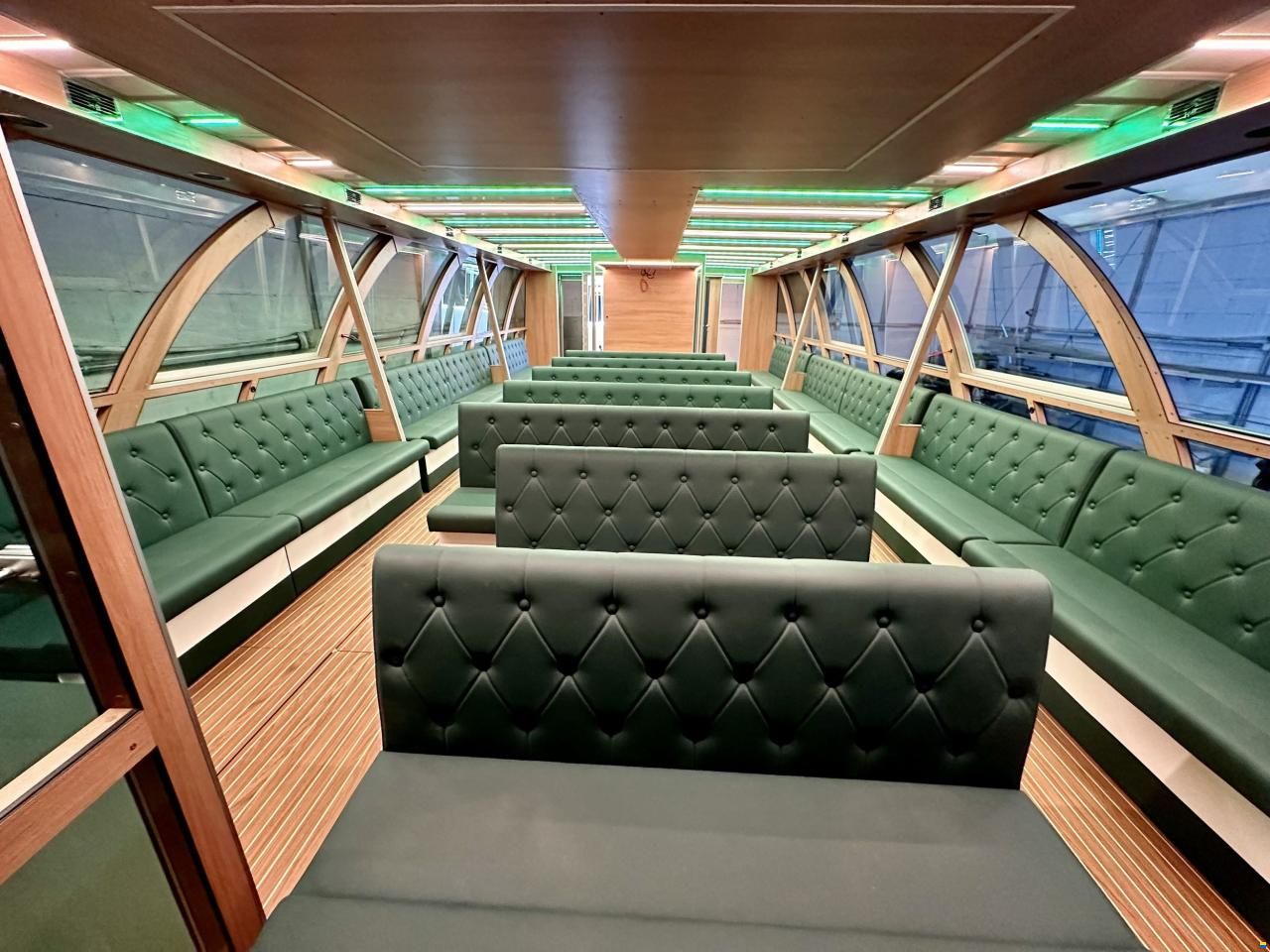

Passenger space:
couches for 50 passengers
LED lighting white (warm color)
RGB LED lighting
230 V outlet
dual USB QC3.0 charging ports
Kitchenette:
stand-up refrigerator large/site 190X40
sink
clean water tap
standing kitchen cabinets
illuminated bar amber color
LED lighting white (warm color)
RGB LED lighting
230 V sockets
dual USB QC3.0 charging port

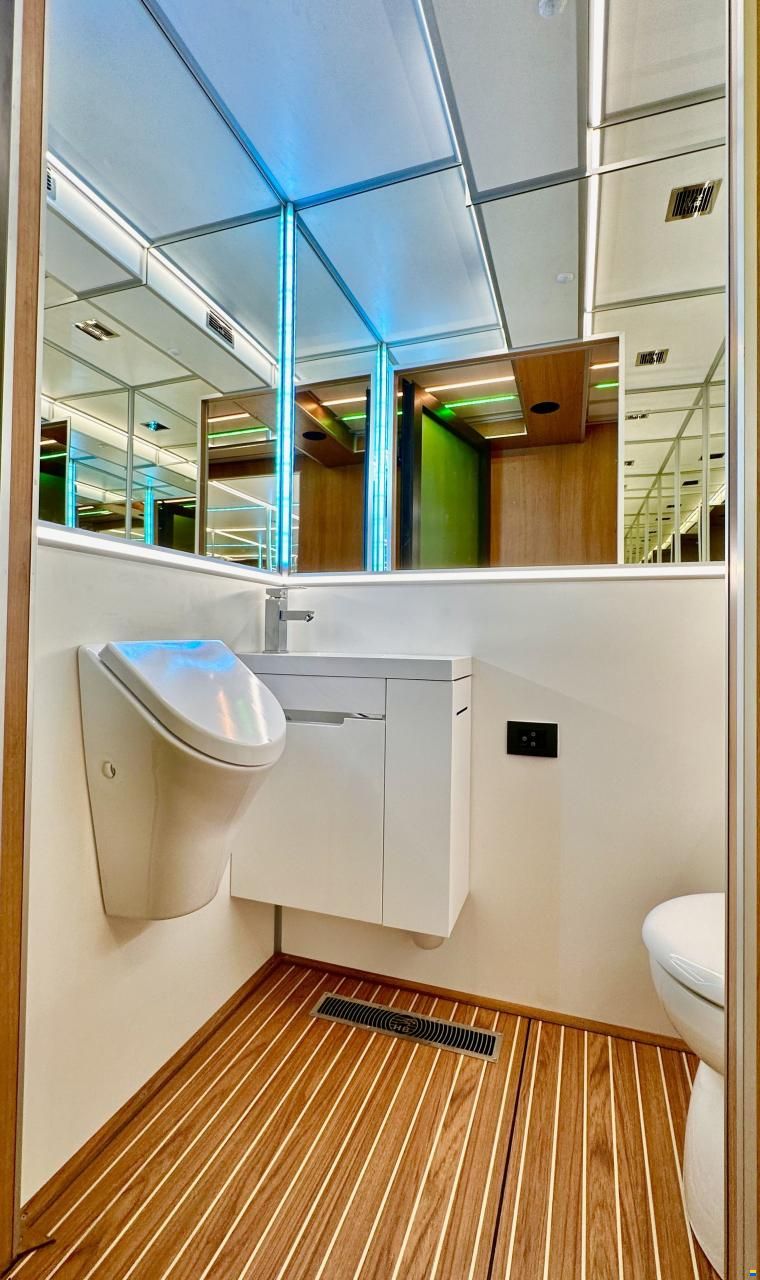

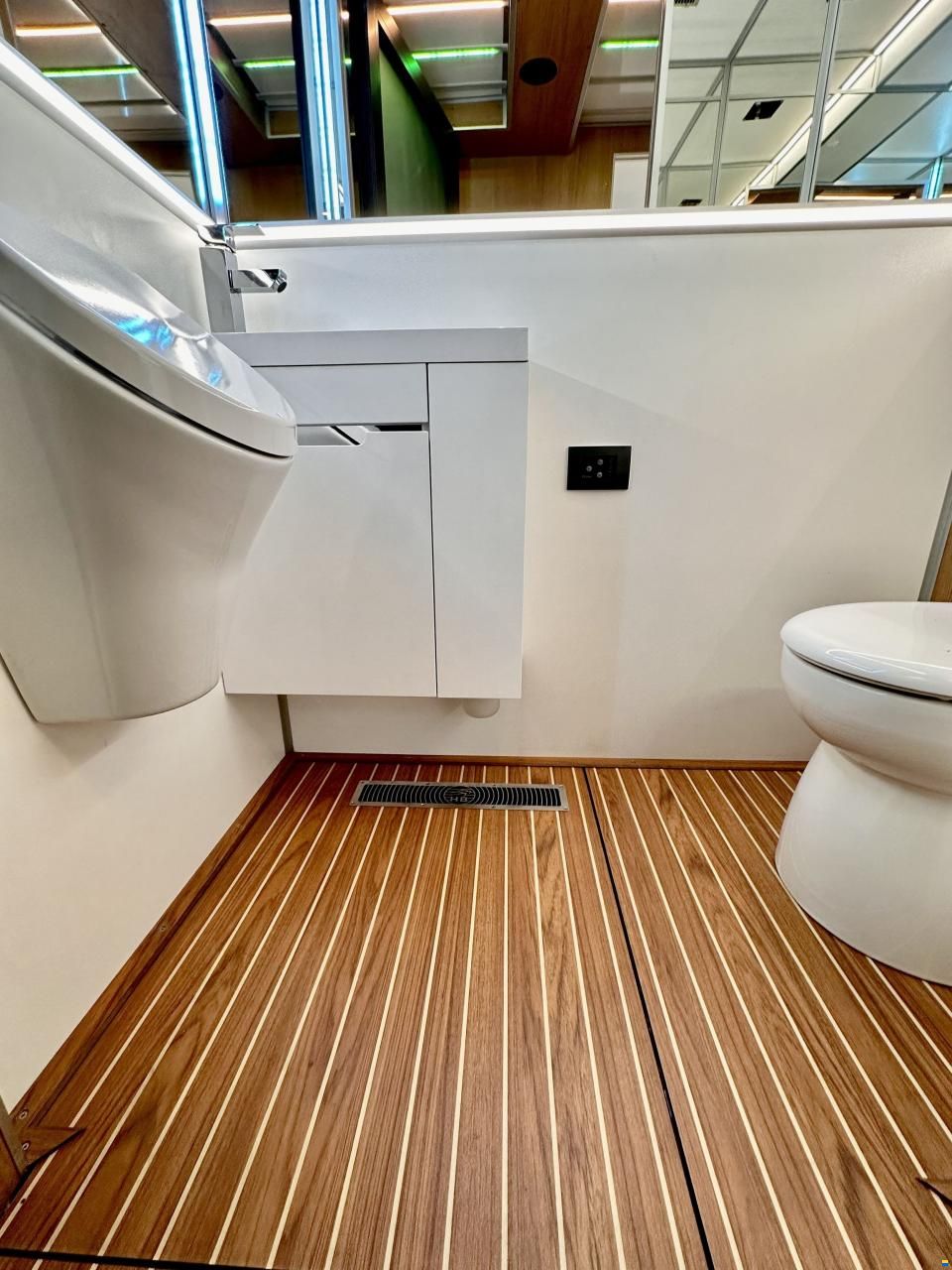

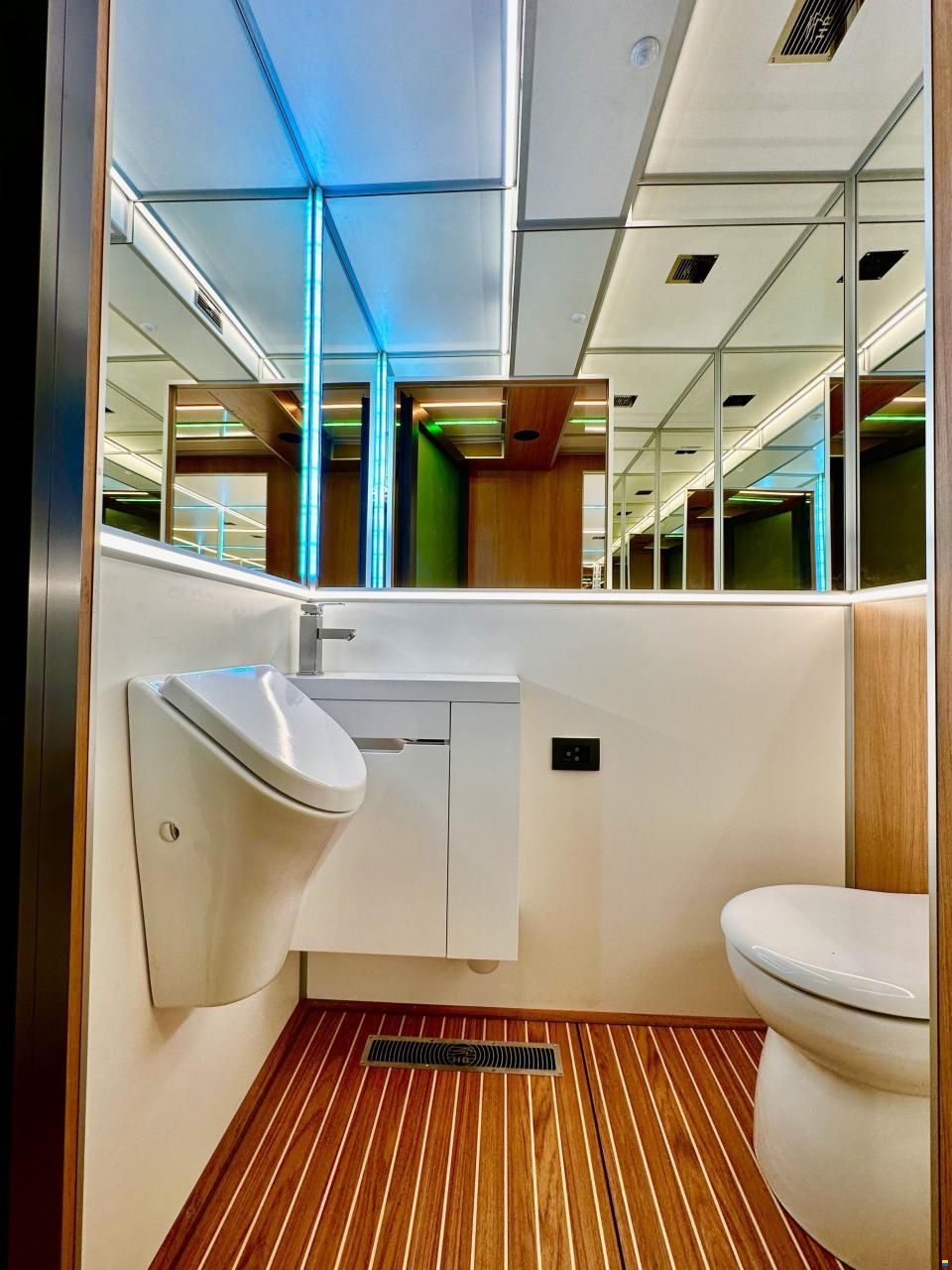

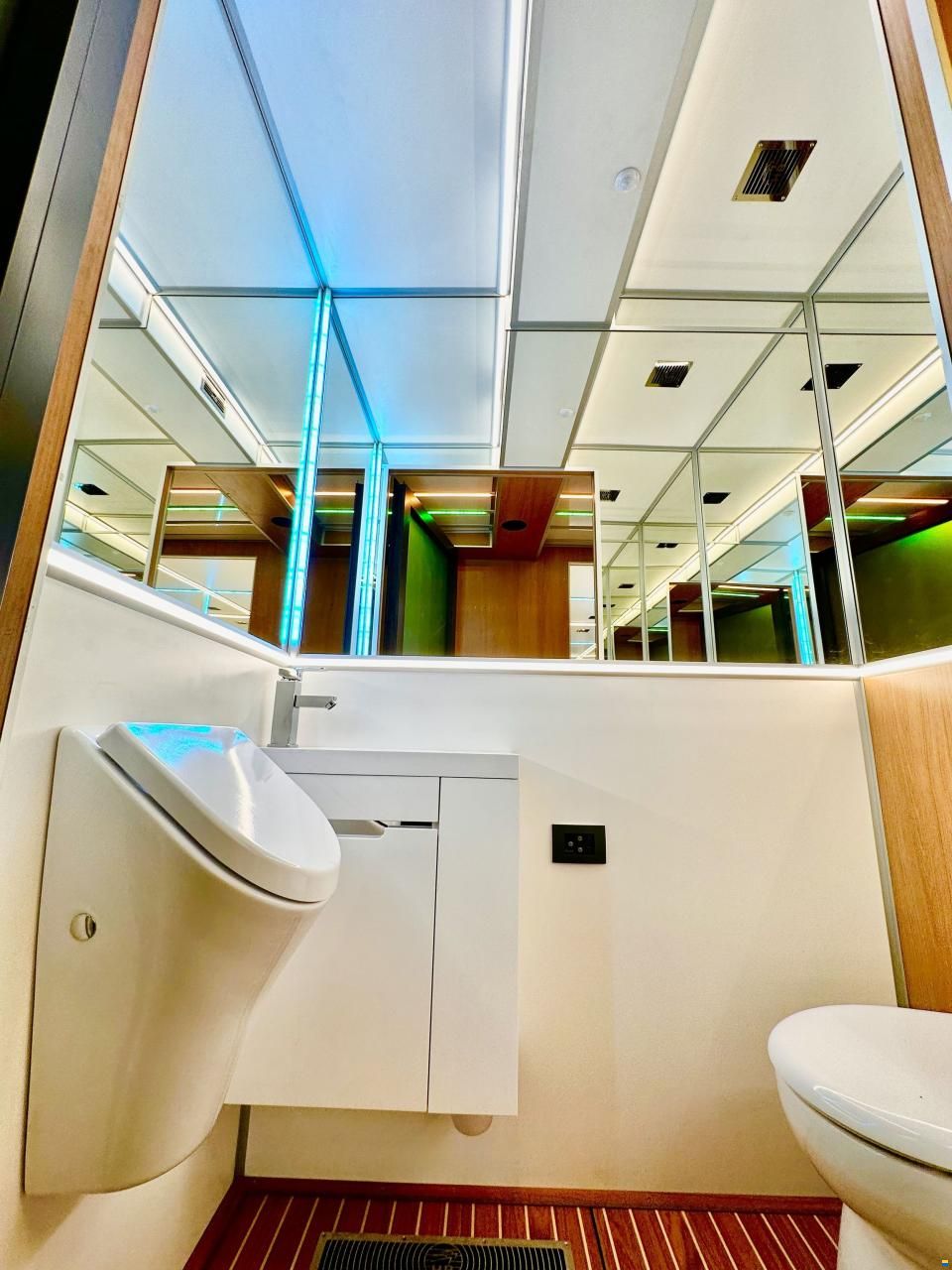

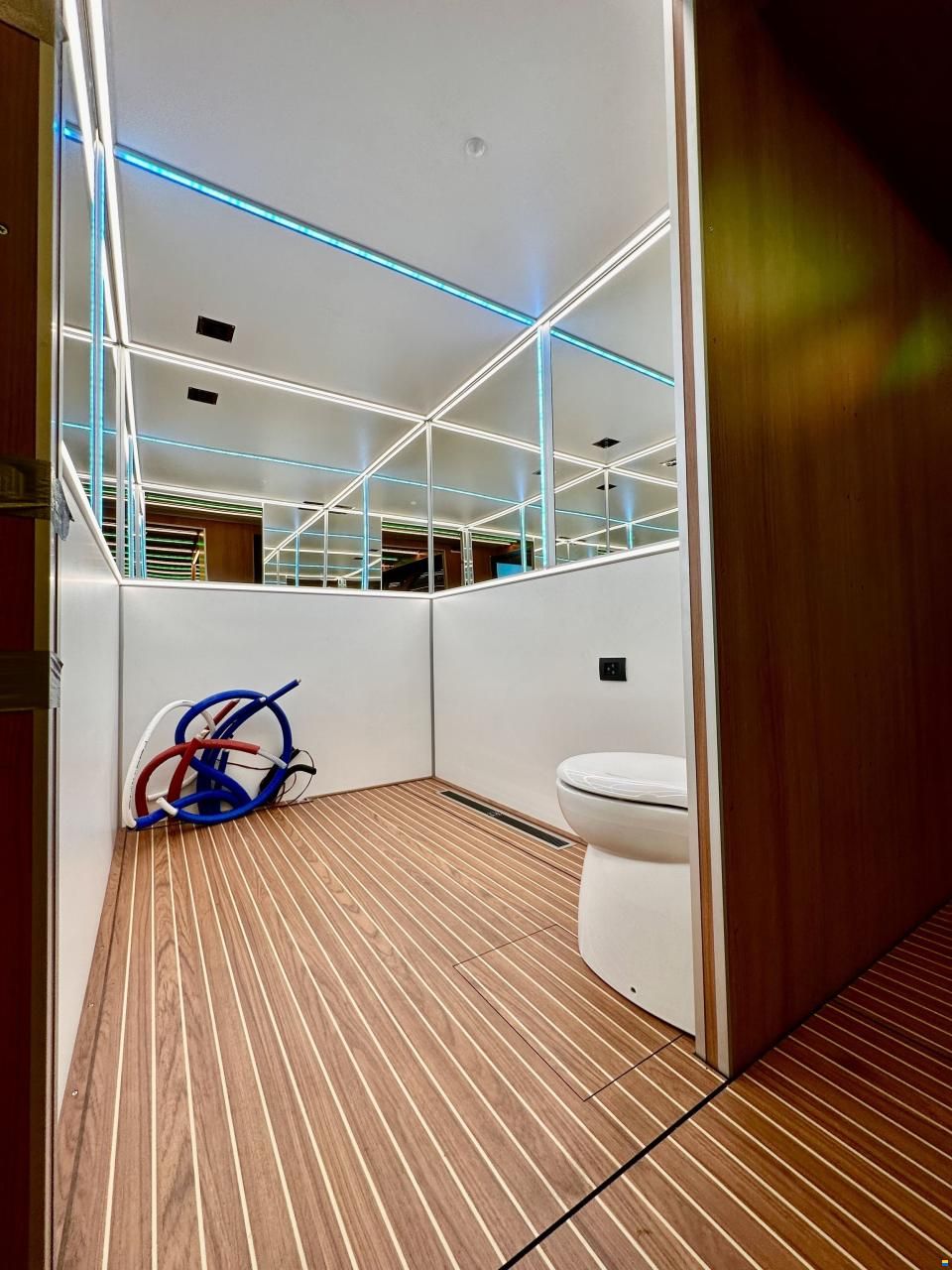

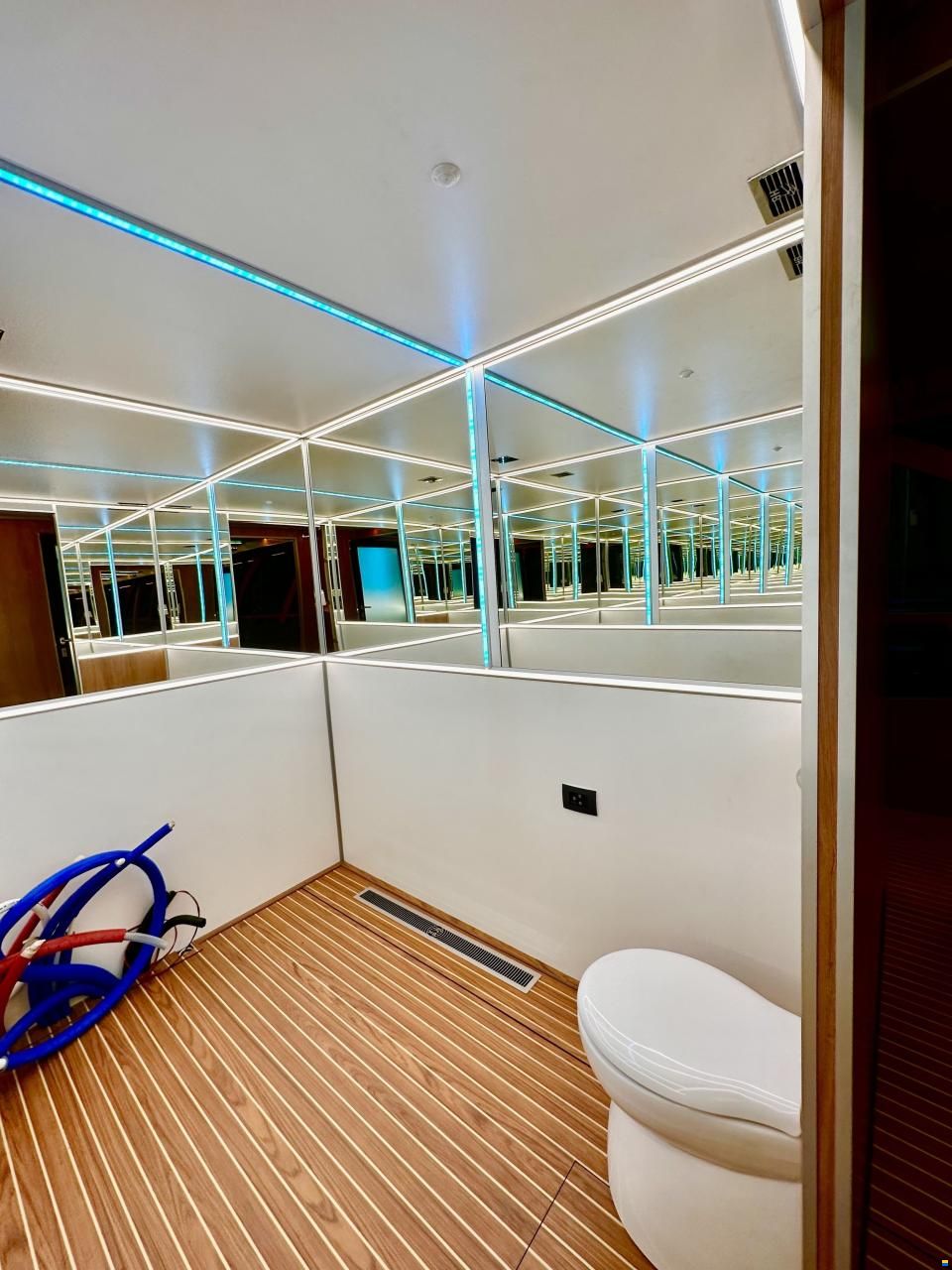

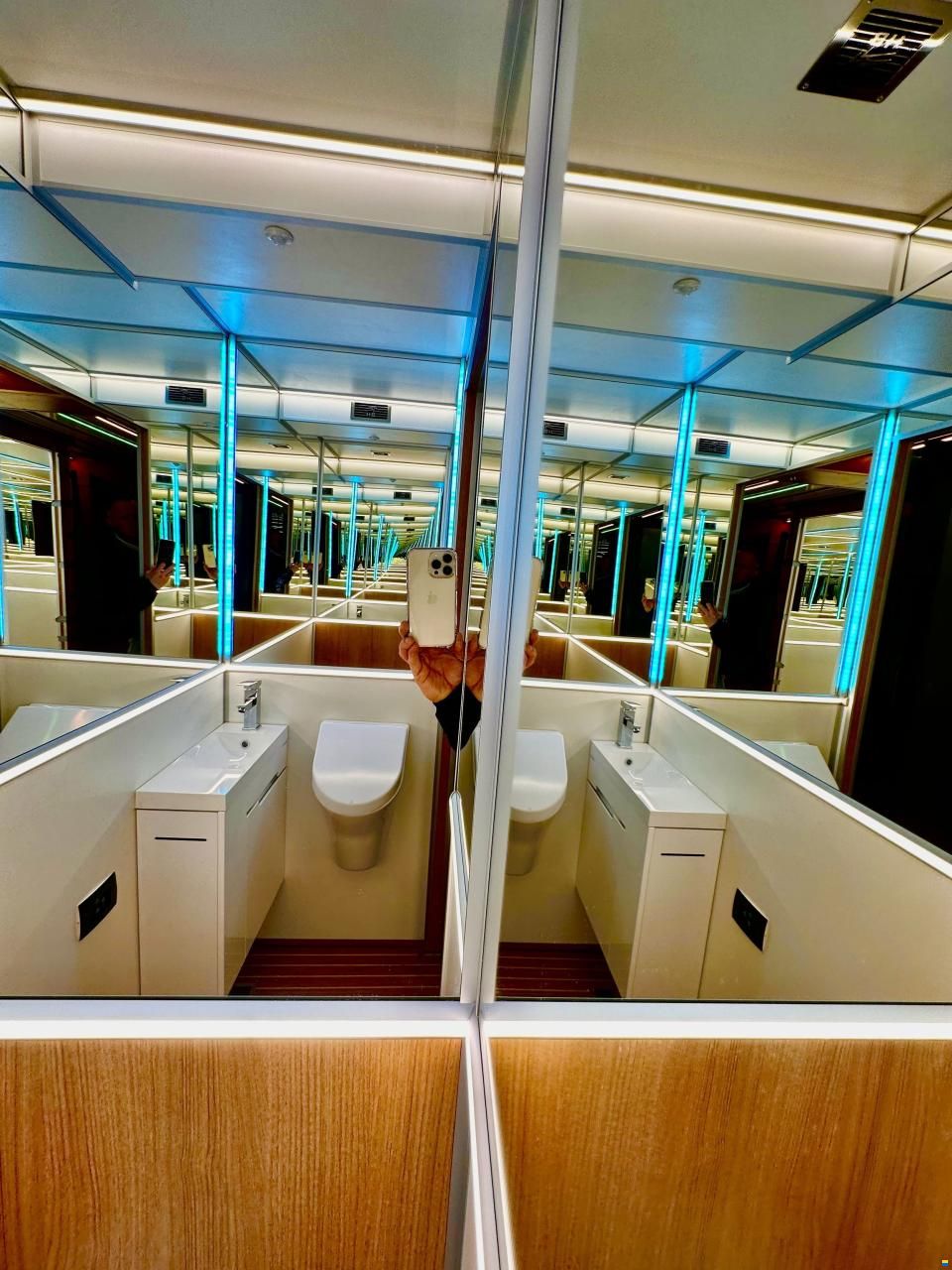

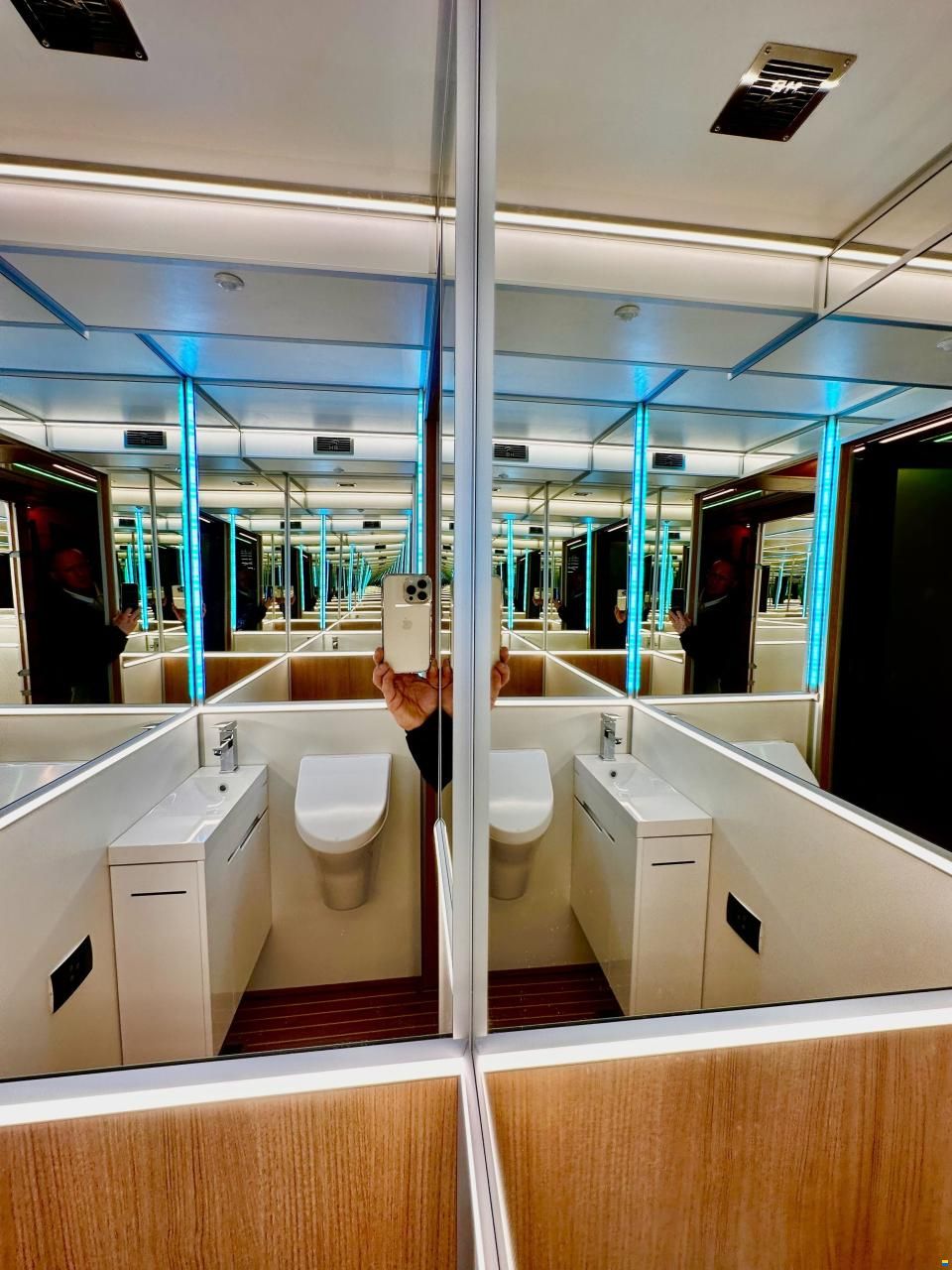

Two Toilets
Including one for people with disabilities:
mirrors on the walls
granite countertop
sink, faucet
cabinet
Marine Toilet with macerator Marine Toilet Silent Premium 12V
A92-07-04-014
LED lighting white (cold color)
handgrips for the disabled

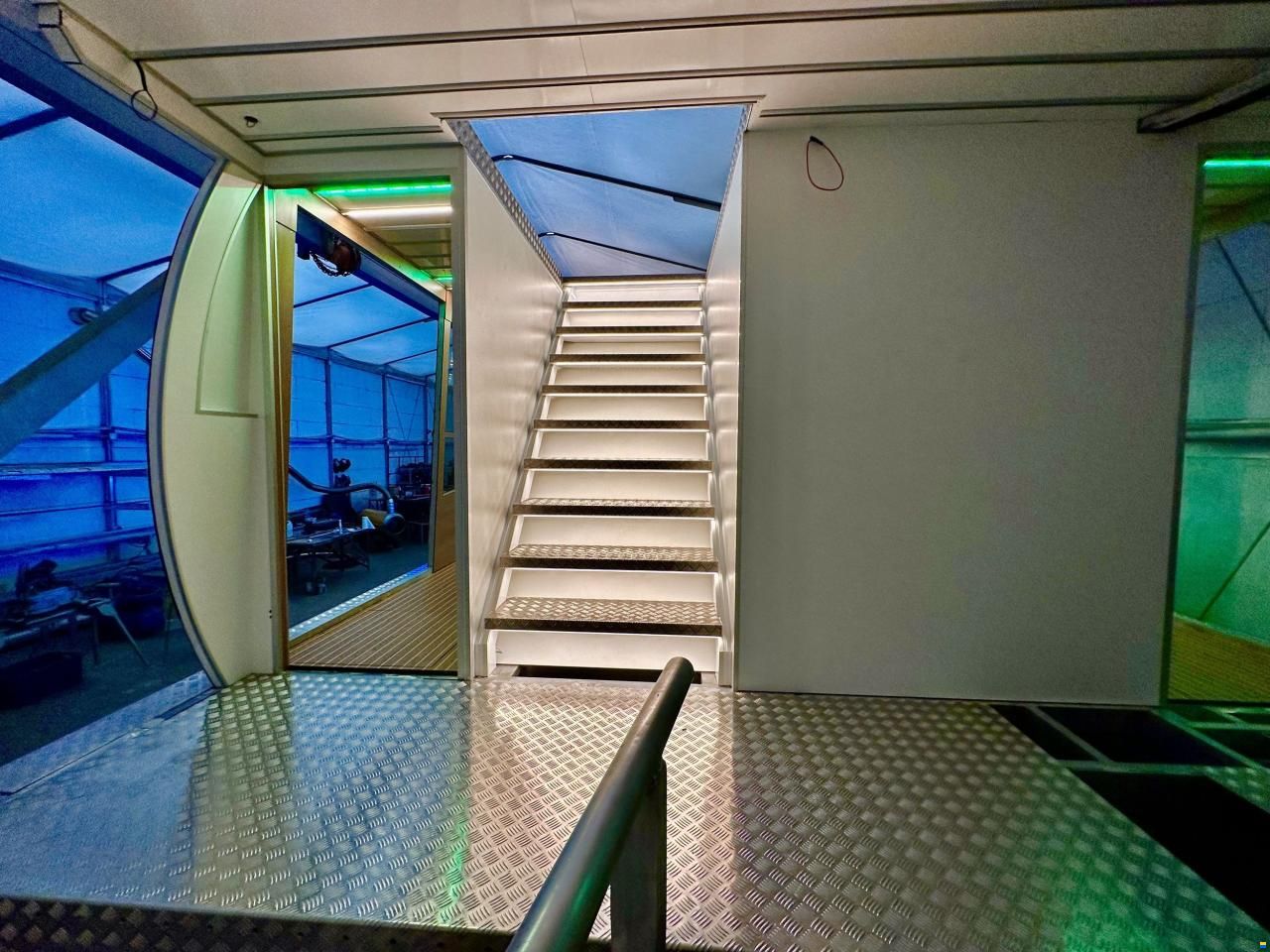

Sun Deck:

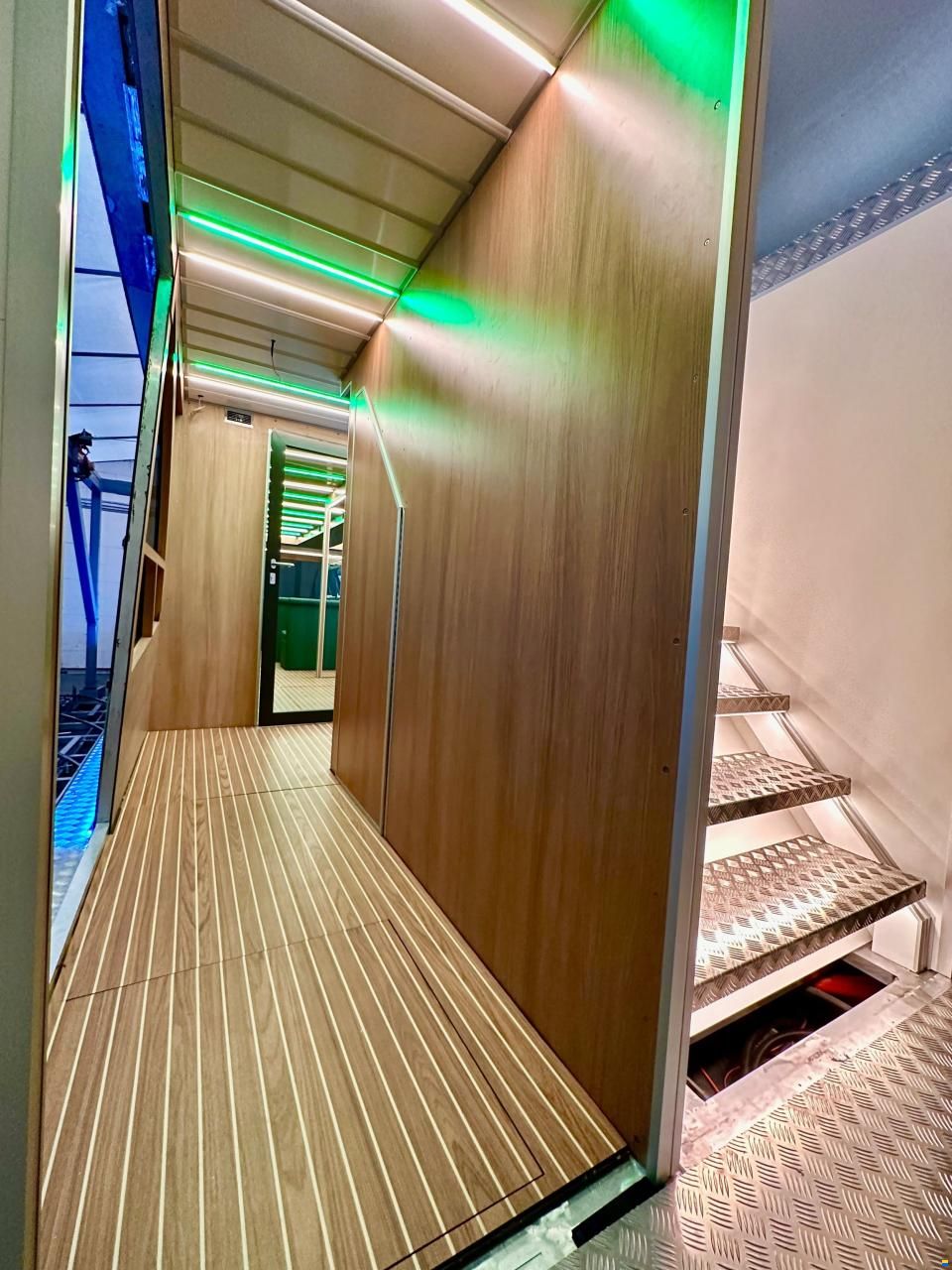

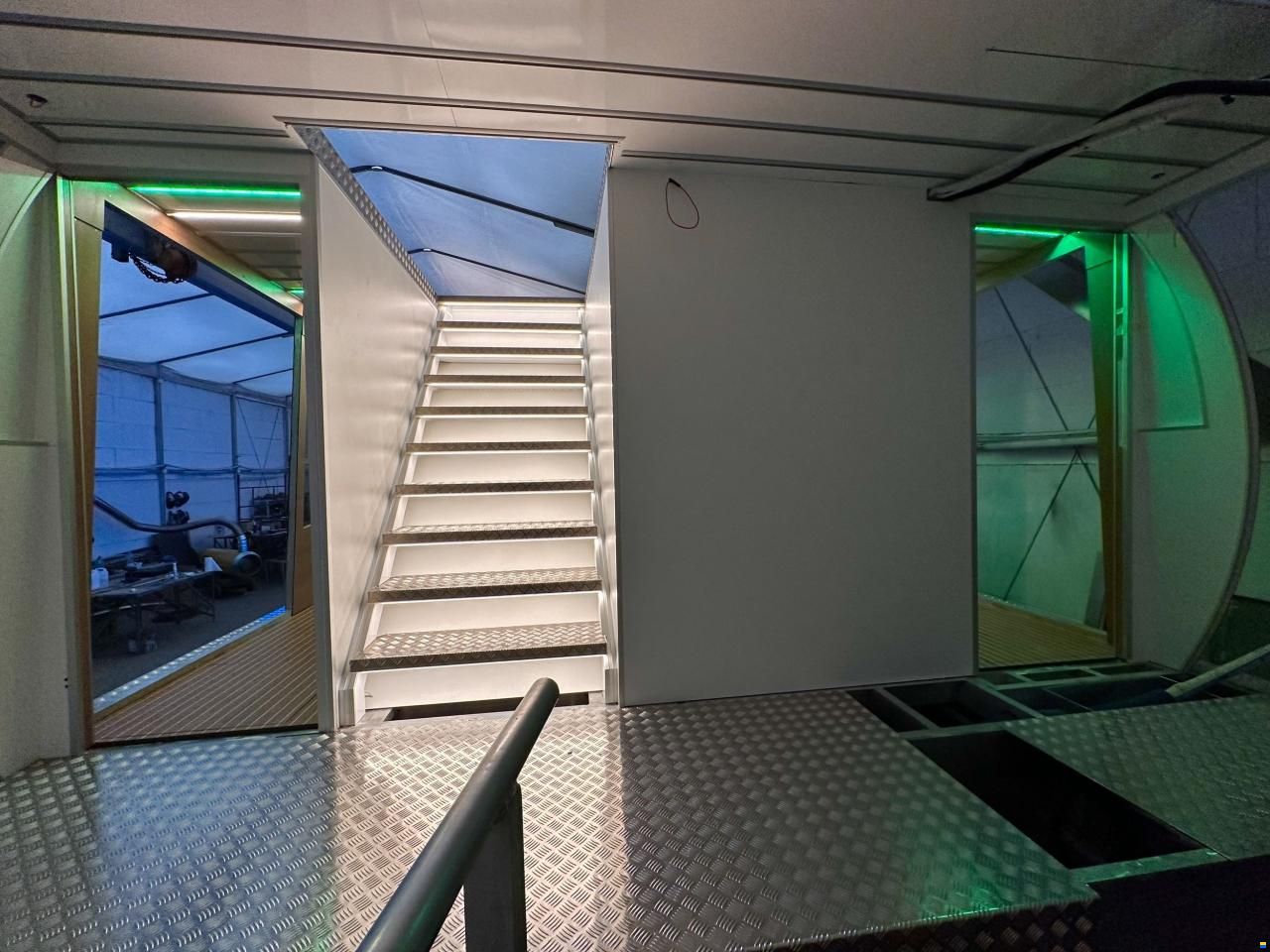

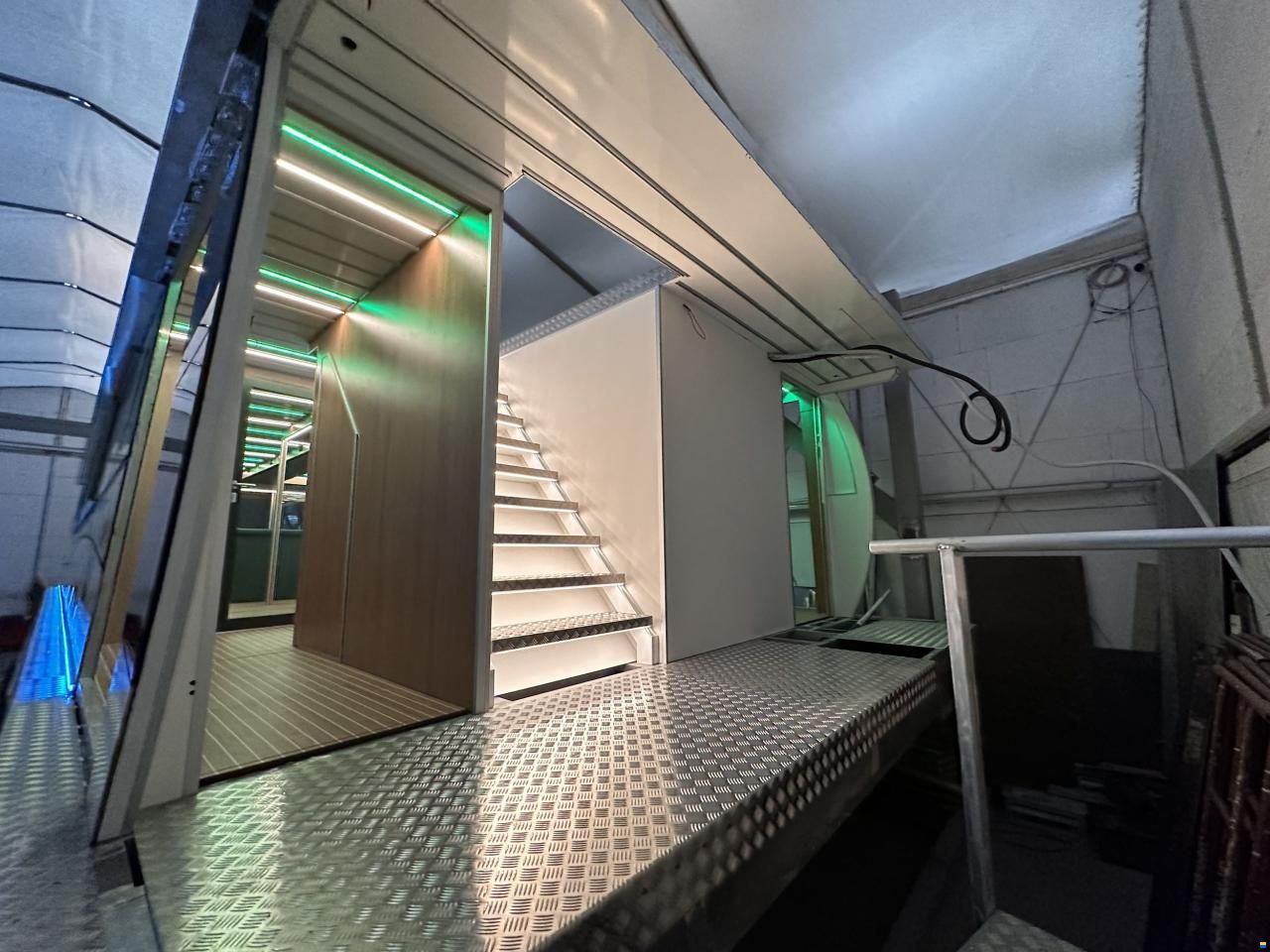

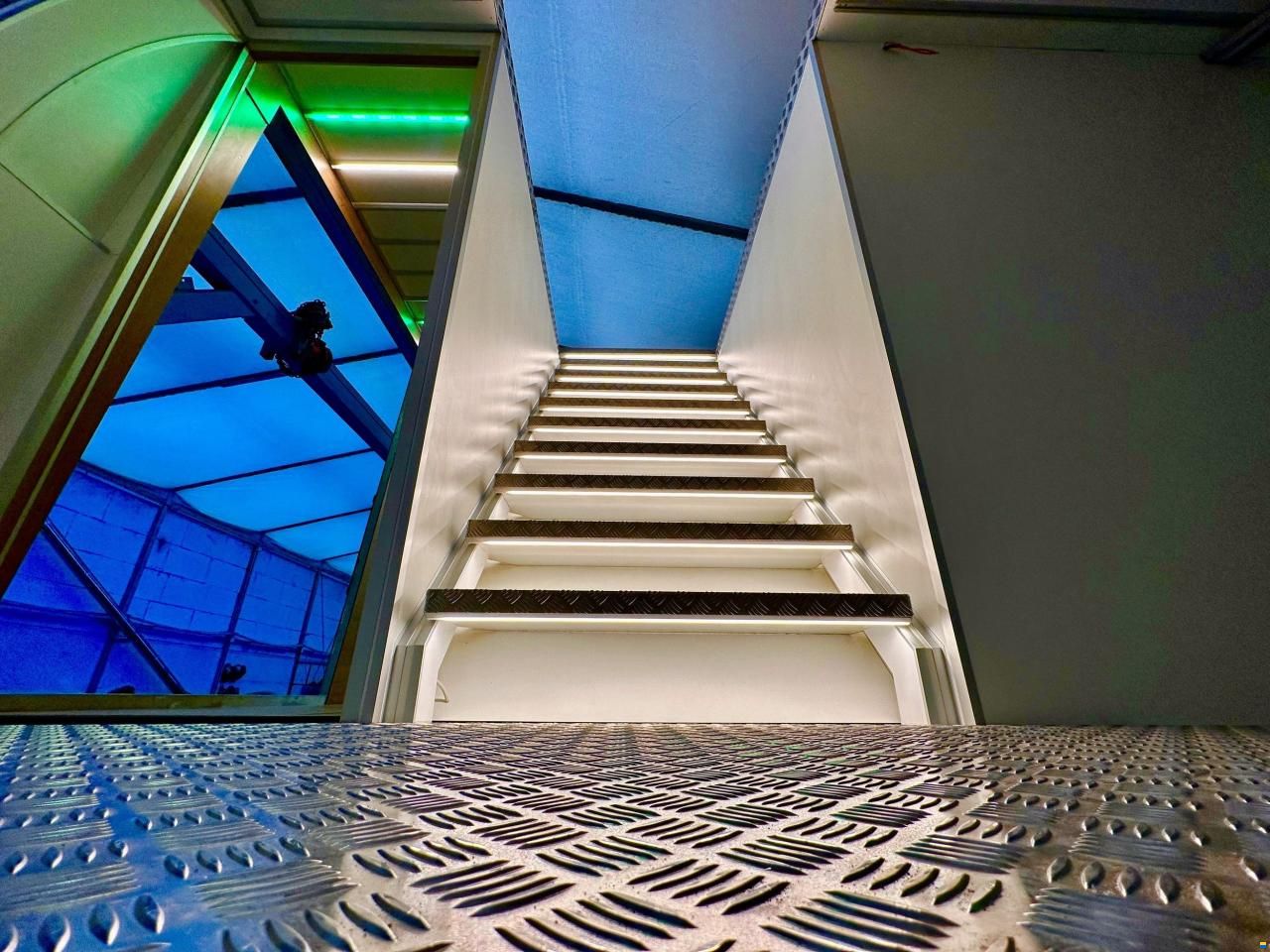

staircase
stainless steel stair railing
stainless steel balustrade of the sun deck
RGB LED lighting of the sun deck
230 V outlet
additional external speaker
(Focal 100 OD6 Outdoor Water and UV resistant loudspeaker)
solar panels
III. Utilities
Clean water installation:
water tank 200 l
clean water land connection
clean water taps in the kitchen
Albin Flush Pump 12V 20 L double pump system
electric boiler electric boiler ariston velis wifi 50 therma
Fecal installation:
fecal tank 300 l
Albin Macerarator Pump 43L 12V
Fuel Installation:
fuel tank 400 l
fuel pump
fuel filters
additional 100l fuel tank
Electrical installations:
12 V domestic power supply system
12 V lighting system
music installation with amplifier and 8 speakers
(SONY MARINE XS-MP 1621 speakers located in the ceiling in the passenger
compartment)
amplifier power 1000 watts
monitoring of 8 IP cameras with internet access
installation of 230 V outlets with 12/230 V inverter
generator 5 KW
land connection with 20 m cable
solar charging system
projector with screen with installation
Ducted air conditioning with high air compression
Lighting:
Positional: red, green, white
LED halogen
LED RGB: ceiling living room + kitchenette, bedroom, hallway,
outdoor under roof, sun deck
LED exterior blue along the sides
LED white under stair treads
IV. Construction of the catamaran
Design:
unsinkable aluminum modular floats connected by the structure of the utility deck and the technical deck
exterior and interior walls made of bent and straight aluminum profiles
aluminum stair structure with stainless steel railing
roof/sun deck structure made of aluminum profiles and corrugated sheet metal
stainless steel railing of the sun deck
Deck construction:
HPL teak board
12 mm waterproof board
aluminum profiles of the passenger deck
aluminum profiles of the technical deck
4 mm aluminum sheet

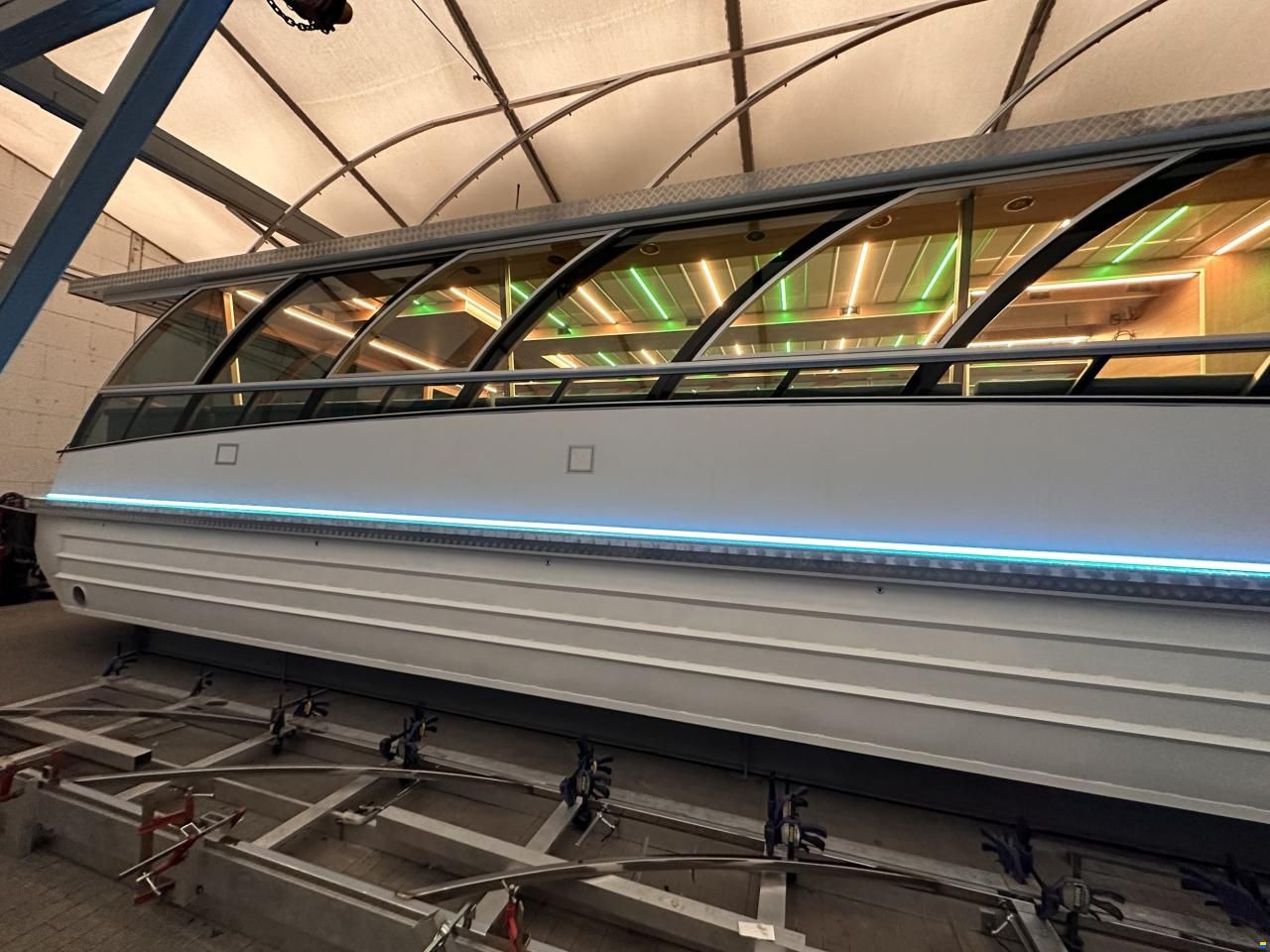

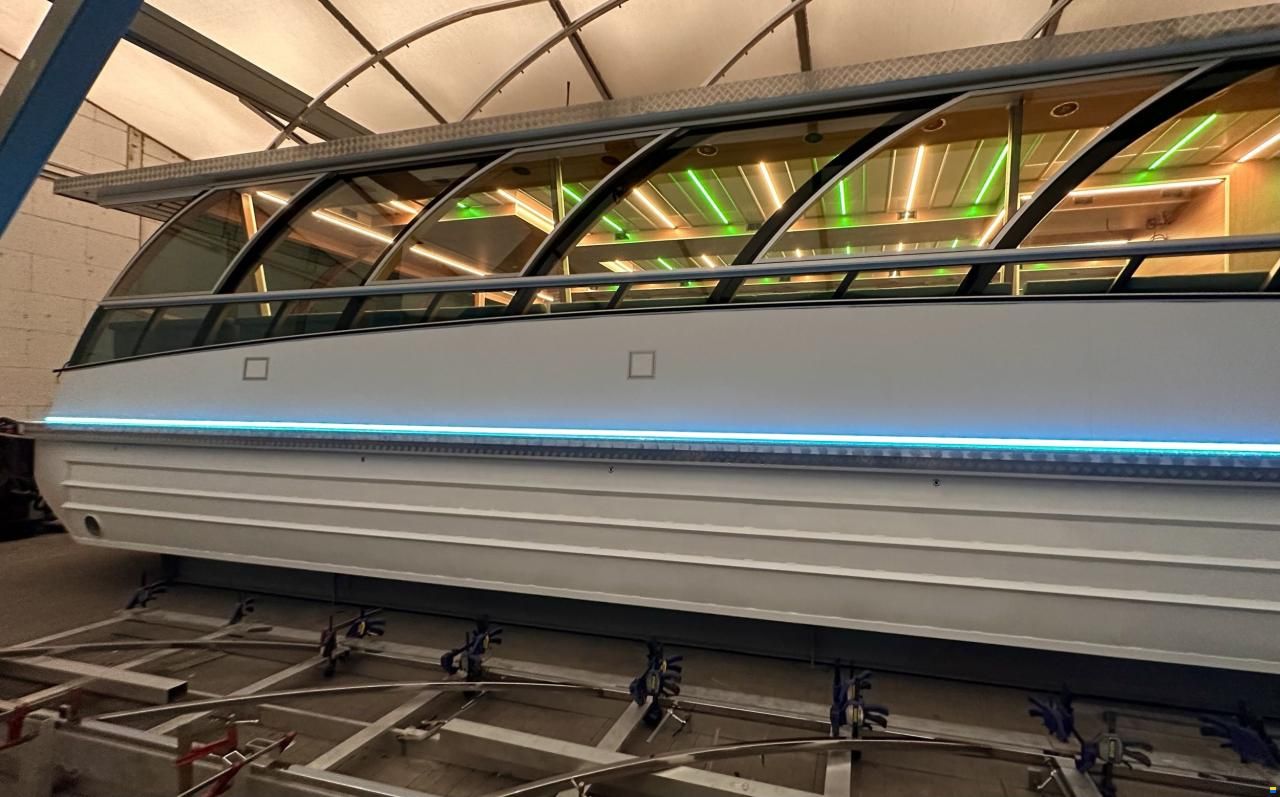

External wall construction:
Composite plate (0.5 mm aluminum - 3 mm LDPE core - 0.5 mm aluminum)
aluminum construction made of bent profiles.
HPL teak board
8 mm safety glass glazing
Interior wall construction:
construction made of aluminum profiles
5cm mineral wool filling
HPL teak board on both sides
Construction of the sun deck:
3 mm corrugated aluminum sheet
aluminum profiles
mineral wool 10 cm
1 mm powder coated aluminum sheet

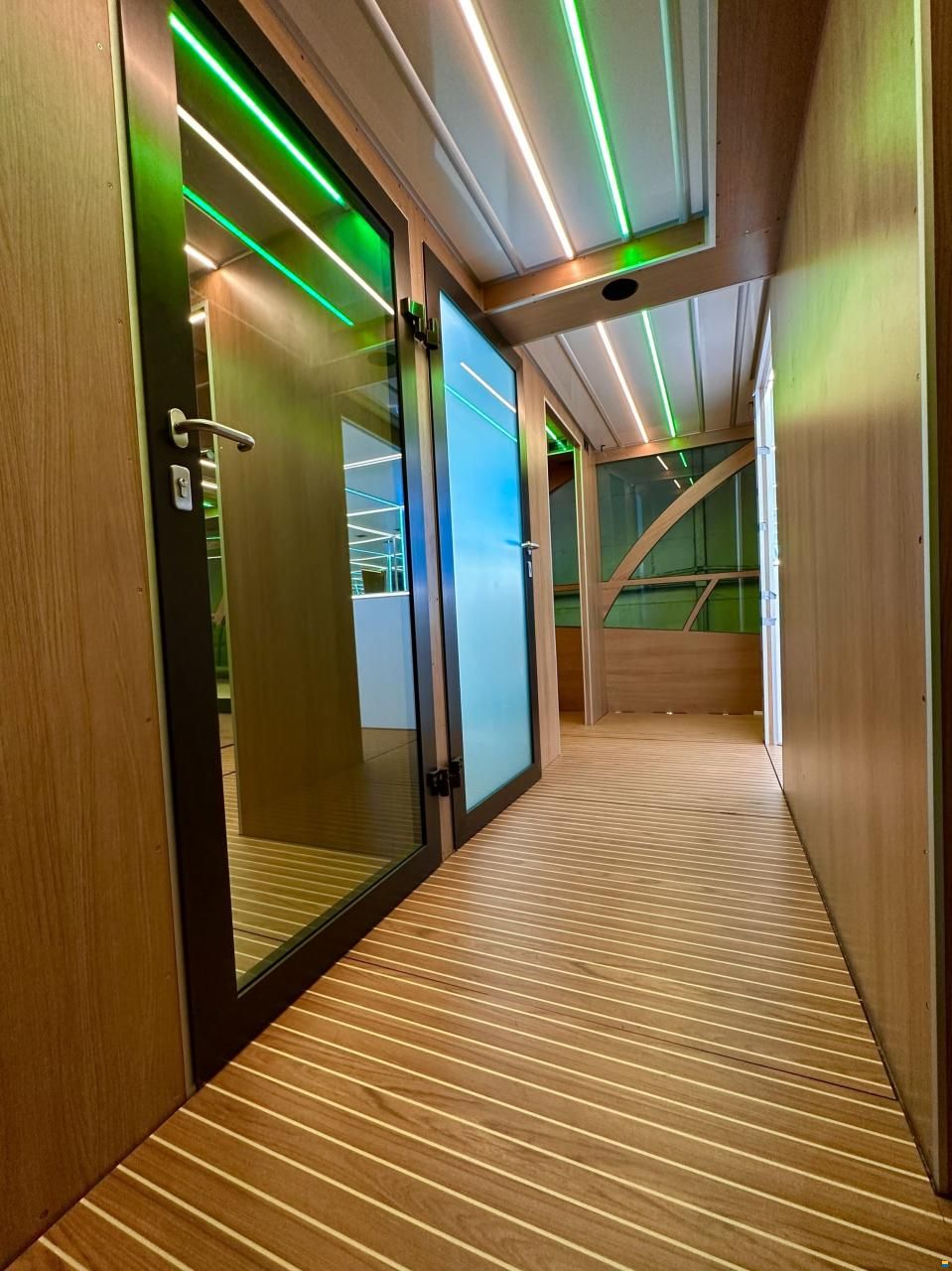

Window and door woodwork:
4 pcs. of aluminum sliding windows with 6 mm safety glass filling
3 pieces of sliding doors with filling 6 mm safe glass
3 pieces of interior doors with filling 6 mm safe glass
V. Additional equipment included in the price:
Vetus Bow Pro Thruster
Garmin or Raymarine Echo sounder navigation
Solar recharging 4 x 455 watts
Port charger 100 a
Two-tone horn
230 V outlet on the sundeck
7. Household batteries 4x200 Ah
8. Thruster battery 200Ah
9. 100Ah music battery
10. Sine plus 12/230V 2000/4000W inverter
11. 9 kW Webasto diesel type heating with regulation
12. 1000 W music amplifier with 8 speakers with
Subwoofer
13. Illuminated bar
14. Monitoring of 8 IP cameras with Internet access
15. Indicators of fuel, clean water, fecal levels
16. Trap with barriers in accordance with requirements security for the boarding and leaving of people on board
17. Ducted air conditioning with high compression
18. Purchase of an additional thruster
19. Light and information belt with controller
20. Additional refrigerator, size to be determined
21. UKF radio with installation and antenna
VI. Fire Prevention Installation.
Installation performed according to PE 2016 ESTRIN standard
VII. Drive:
Drive for choice:
Propulsion: Diesel FTP 2 x 125 KW Euro V standard + transmission + shaft line + screws + steering fin
Or
Electric
VIII. Valuation
2 Above-standard equipment:
RGB LED light and information display
VETUS Bow Pro Thruster
Refrigerated display case
UKF radio with antenna:
Stationary:
1 Horizon GX 20400 price x 2 pcs
2 Manual: 4.2.1 Horizoen HX 300
The Furuno M1815 radar
