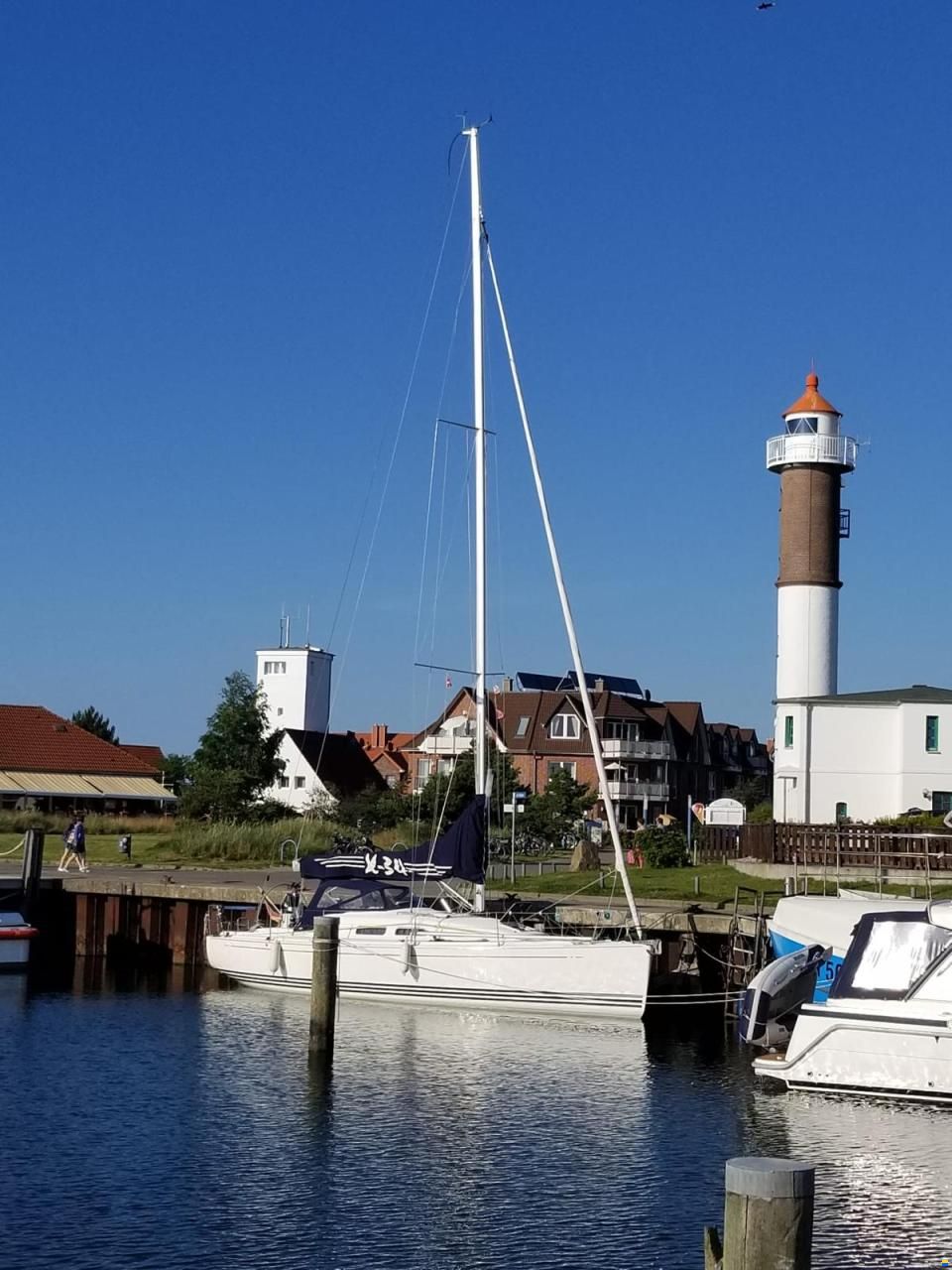

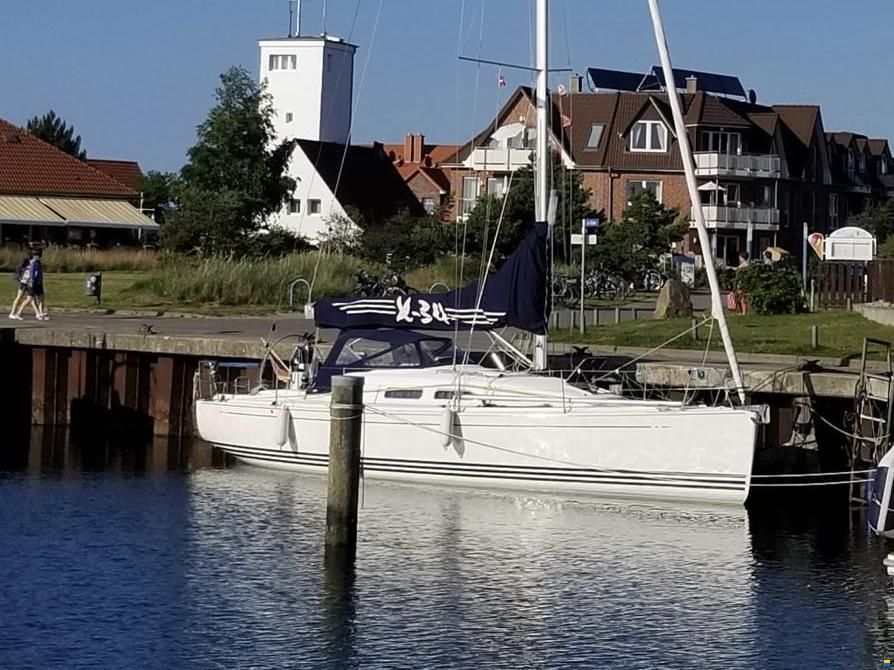

2010 X-Yachts X-34, 129 000 EUR

X-34, built in 2010, in good condition, exclusively for sale from her first owner!

This X-34 remains in her first ownership and has been carefully maintained and professionally serviced throughout her life. She presents in very good condition and is currently lying fully commissioned in the marina, ready for immediate handover.

The yacht features two cabins and one head. Her mahogany interior combined with teak-style cabin soles creates a classic and timeless atmosphere. The spacious cockpit and well-thought-out deck layout make the X-34 equally suitable for comfortable cruising and spirited sailing.

Highlights:
First owner, ready to sail and immediately available, teak deck in cockpit, electric Harken halyard winch, UK Sails X-Drive furling genoa from 2023, complete Raymarine navigation package with autopilot, Bose cockpit speakers and an extensive sail inventory including a gennaker.

1. General Overview:
Manufacturer: X-Yachts
Model: X-34
Hull Number: 109
Year Built: 2010

2. Exterior Details of the Yacht
Hull, Keel, Exterior and General Information:
• Hull colour: White RAL9010, waterlines: Blue RAL 5011, antifouling: White
• Stainless steel rubbing strake on both sides of the hull
• Bathing platform, teak deck with black caulking
• All seacocks recessed flush with the hull
• Upper and lower rudder bearings with needle bearings (lower bearing additionally self-aligning)
• Hot water system

Keel & Construction:
The bottom structure consists of a solid, hot-dip galvanized steel frame securely bonded to the hull by heavy laminate. This structure absorbs the loads from the keel, rig and mast. The keel itself consists of a combination of iron and lead, providing a low centre of gravity with less overall weight. In addition, the keel is fully protected by a GRP coating.

Deck:
• White anti-slip surface on side decks
• Teak on cockpit sole and seats
• Aft cockpit bench

Cockpit:
• Teak cockpit with black caulking
• Instrument pod on the steering pedestal and above the companionway garage
• Cockpit speakers

Rudder & Steering System:
• 150 cm stainless steel steering wheel with leather cover
• Jefa steering system with needle bearings

Mast, Running Rigging and Equipment:
• Two-spreader tapered aluminium mast by John Mast with continuous rod rigging
• Aluminium boom with two reefing lines (single-line reefing system) and outhaul
• Lazy jacks mounted on mast and boom
• Below-deck headsail furling system mounted in the anchor locker
• Spinnaker pole

Sail Handling:
• X-Yachts mainsheet system with under-deck control lines led aft to cockpit winches
• Large self-tailing genoa and halyard winches
• Halyards, sheets and control lines led to the cockpit for trimming
• Electric Harken 40 STE halyard winch, port side
• Harken 40 ST halyard winch, starboard side
• 2 x Harken 46 ST genoa winches
• 2 x Harken 40 ST mainsheet winches
• Gennaker equipment with inhauler for genoa

Sails:
Mainsail
• NORTH SAILS, SoftNorLam, full battens, two reefs (2010)
Genoas
• Furling genoa, 104%, 28 sqm, UK Sails, X-Drive Endure Roller Genoa III AP with vertical battens and UV protection (2023)
• Furling genoa, NORTH SAILS, SoftNorLam (2010)
• Furling jib, 80%, NORTH SAILS, SoftNorLam (2010)

Gennaker
• NORTH SAILS, white with blue star (2010)

Covers:
• Dark blue sprayhood
• Dark blue boom cover
• Headsail cover
• Steering wheel cover

3. Layout & Interior of the Yacht
Interior:
• Two cabins, one head, L-shaped galley and spacious saloon
• Mahogany interior throughout
• Upper locker in saloon (port side)
• Upper locker in saloon (starboard side)
• Teak-style cabin sole with stripes

Aft Cabin:
The aft cabin features a large double berth and a wardrobe with shelves and hanging rail. The hull sides are lined with white fabric.

Owner’s Cabin:
The owner’s cabin has a large double berth. Integrated into the modern design are two large wardrobes with shelves and hanging rails. Additional storage space is provided beneath the berths for bedding and other equipment. The hull sides are lined with white fabric.

Galley:
The L-shaped galley is located on the port side. A rectangular stainless-steel sink with mixer tap is integrated into the worktop. The specially shaped worktop is made of white vinylester gelcoat. A top-loading 115-litre refrigerator with heavy insulation and cooling unit is fitted. The gimballed gas stove has two burners and an oven. The 3 kg gas bottle is stored in the port cockpit locker.
Shelves, lockers and drawers provide ample storage space for provisions, dishes, cutlery, glasses, etc.

Head:
The head compartment features a manual marine toilet with water flush and a white moulded unit with integrated wash basin and mixer tap for hot and cold water, also suitable for showering. The compartment is equipped with towel rails and toilet paper holder. Mirrors are mounted on the locker doors. The floor drains into the bilge. A separate electric shower sump pump is installed.
A self-draining holding tank with level indicator and deck suction fitting is also installed.

4. Systems Installed on Board
Engine:
• YANMAR 3YM20C – 20 hp diesel engine mounted on rubber mounts with saildrive. The engine is fitted with a freshwater cooling system.
• 80-litre diesel tank with gauge, deck filler, water separator with filter and shut-off valve.

Gas & Water:
A pressurized hot and cold water system with a 200-litre freshwater tank and level indicator is installed. Mixer taps are fitted in the galley and head. The hot water tank (80°C) is heated either by the 230V immersion heater while connected to shore power or by the engine heat exchanger.

Electrical System:
12V DC system – X-Yachts main electrical panel with 21 automatic circuit breakers and three analogue gauges. One indicates the voltage of either the starter battery or service battery, while the other two display the fuel and water tank levels. A 12V outlet is located behind the electrical panel.

Batteries:
• 1 x 12V 115 Ah gel service battery
• 1 x 12V 55 Ah Spiral-Cell engine battery
The Mastervolt IVO Chargemaster 12/35 battery charger and immersion heater are connected to and controlled from the distribution panel.

230V AC Shore Power System:
The shore power installation consists of a 10-amp shore power inlet in the cockpit for the shore cable. The 10-amp breaker box is located in the aft cockpit locker. A 230V AC distribution panel with breakers and a 230V outlet is located at the navigation station.

Lighting
Below Deck:
Halogen lights are installed throughout the cabins for general illumination and reading. An additional light is mounted at the chart table.
• 9 lights integrated into the interior liner
• 6 reading lights in the aft cabin, saloon and forward cabin

On Deck:
LED navigation lights at the bow pulpit (port/starboard), stern light, steaming light, Windex light and compass light are installed.

Instruments:
• Raymarine ST60 Depth
• Raymarine ST60 Speed
• Raymarine ST60 Wind
• Raymarine Autopilot 6002 with SPX10
• Raymarine C90W 9” chartplotter at steering pedestal
• Raymarine RAY55E VHF radio

Entertainment:
• JVC radio with speakers in the saloon
• Bose Marine cockpit speakers

5. Yacht Accessories
• Fenders
• Mooring lines
• Flagstaff
• AWN life raft
