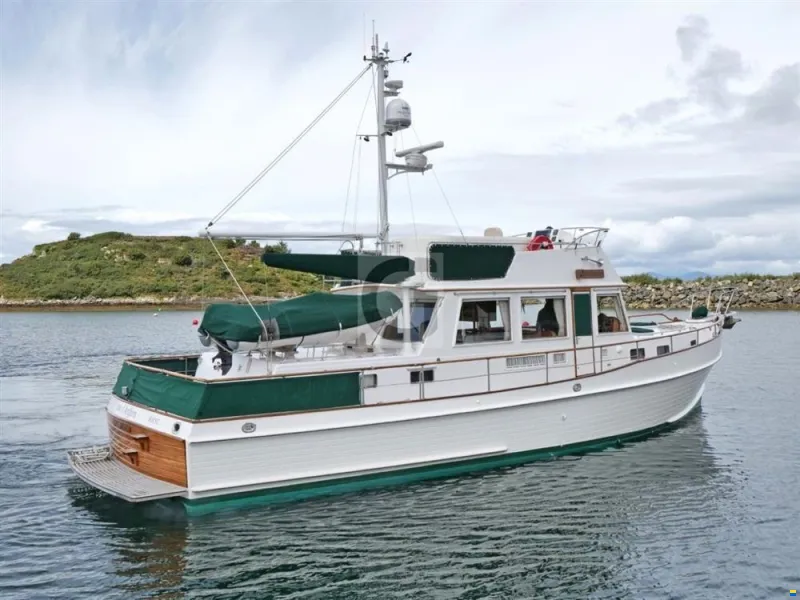

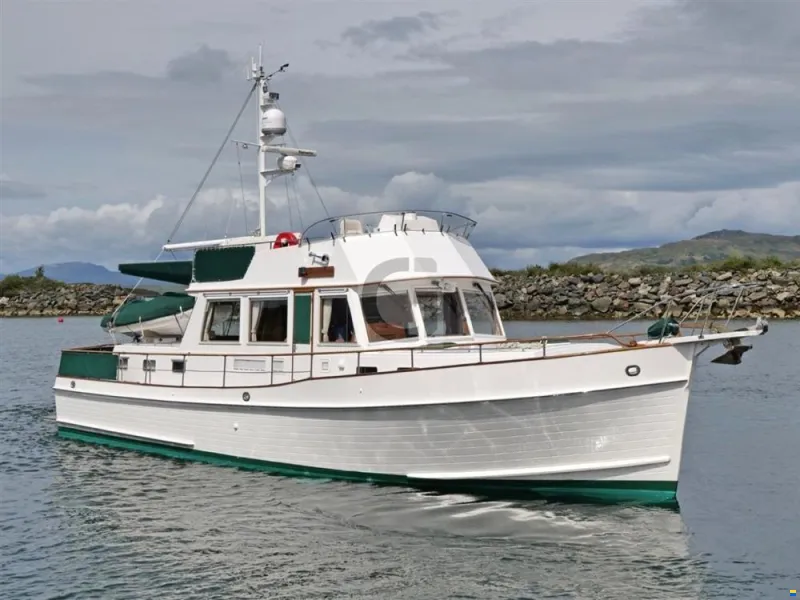

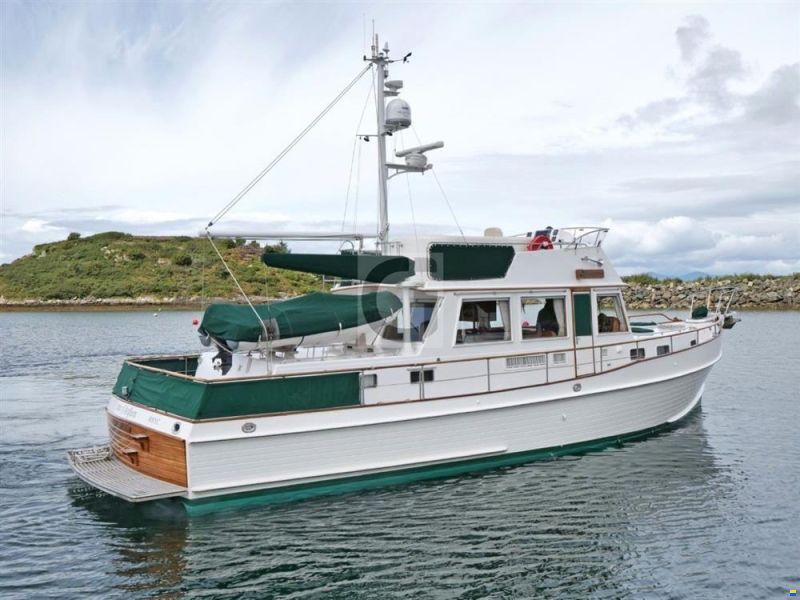

2004 Grand Banks 46 Classic, £ 299,950

Very nicely presented example of very popular Grand Banks 46 Classic semi-displacement trawler yacht with three cabin, twin heads interior layout and great cruising specification.

FURTHER BROKER'S COMMENTS:

First launched as a model in 1984 the Grand Banks 46 has proven to be an ideal long distance cruiser, available in the Classic or Europa styles. A true semi-displacement hull it strikes the perfect balance between the extremes of full planning and displacement hulls; comfortable cruising between 8-10kts and capable of nearing 20kts if pushed hard. Designed for longer distance cruising the Classic layout boasts two spacious double cabins with a third crew cabin and elevated saloon. With over 300 hulls leaving the factory the Grand Banks 46 has built a loyal following.

With just her second owners since she was built in 2004, ANNE OF ARDFERN has been based in Scotland since her arrival in the UK as a new boat. A familiar sight around the coast of Scotland she has cruised extensively from Dublin in the south North to the Orkneys and as far west as St. Kilda. Proving herself to be a reliable and highly capable cruiser. Built to the specifications of her first owner (a life long Grand Banks owner) her extensive inventory is packed with optional extras, highlights including:
Antifouling and varnish professionally re-applied November 2024
2x Caterpillar 3126B marine diesel engine, 450hp
Onan 9.5kw marine diesel generator
Spurs rope cutters
American Bow Thruster Company hydraulic bow thruster
Trac stabiliser system; stripped and serviced by TRAC engineers December 2024
Bennet Trim Tabs
2x Mastervolt battery chargers
Victron Energy Blue Power Phoenix Invertor
Jabsco 225SLRC searchlight
Raymarine G-series navigation system with plotter, radar and fishfinder functionality
Raymarine ST60 navigation instruments
Raymarine autopilot system
Raymarine Ray430 GMDSS VHF radio
SoniHull sonic antifouling system
Force 10 Galley Range, gas with burners, grill and oven
2x freezers
Broan trash compactor
Bosch washing machine
Bosch tumble dryer
Eberspacher hydronic heating system with dual heater unit 1x 5kw 1x 10kw
Tracvision 4 satellite TV system
SUR Marine 310 Luxury RIB tender with 20hp Yamaha outboard (2018)
Viking 6 person cannister raft. New in June 2023
Lofrans Tigress 12VDC, 1500w anchor windlass

Lying afloat on her berth in Craobh Marina the Grand Banks 46 ANNE OF ARDFERN has been ashore for a comprehensive annual maintenance program and is now ready for the 2025 season. Available for immediate viewing by prior appointment.


SPECIFICATION
CONSTRUCTION

RCD Status:
We understand the vessel is compliant with the EU's Recreational Craft Directive.

CONSTRUCTION

Hull Construction:
Heavy weight, hand consolidated, GRP moulding
GRP formed internal structural members, laminated to hull internatlly
Simulated planking finish moulded into topsides.
Moulded rub rail along the line of the deck edge, capped with a stainless steel capping rail.
Transom is finished with a varnished solid teak planking effect panel finished in varnish
Topsides finished in original white gelcoat
Underwater hull finish in Green International Paints Antifouling, applied November 2024
Transom finished in varnished solid teak veneer panel
Bathing platform mounted on transom

Deck & Superstructure Construction:
Heavy weight, hand consolidated, GRP moulding incorporating decks and superstructure.
Heavy weight, hand consolidated, GRP moulded flybridge
GRP mouldings finished in white gelcoat.
Laid teak decks to finish flybridge sole, foredeck, side decks and aft deck
Solid teak capping rail
External brightwork all professionally re-varnished November 2024
Stainless steel stanchions with tubular stainless steel guard rail running length of side deck.
Solid teak grabrail to top stanchions with gates port, starboard and aft
Stainless steel guard rail around access steps to flybridge
GRP moulded seating units on flybridge
Stainless steel guard rail around aft end of flybridge
Alloy mast and derrick boom
Perspex forward raked windscreen around flybridge

Keel & Rudder:
GRP moulded skeg keel as part of hull moulding
Twin bronze plate rudders

MACHINERY

Port Engine:
Caterpillar 3126B marine diesel engine
450HP @2900rpm
Inline 6 cylinder, turbo charged, electronic fuel injection.
ZF Marine 280 1-A hydraulic marine gearbox
Aquadrive engine mounts and coupling
Racor duplex fuel filtration system.
Caterpillar Marine Digital Engine Management System Display
Exhaust temperature alarm system
Dual station single lever Kobelt engine controls

Starboard Engine:
Caterpillar 3126B marine diesel engine
450HP @2900rpm
Inline 6 cylinder, turbo charged, electronic fuel injection.
ZF Marine 280 1-A hydraulic marine gearbox
Aquadrive engine mounts and coupling
Racor duplex fuel filtration system.
Caterpillar Marine Digital Engine Management System Display
Exhaust temperature alarm system
Dual station single lever Kobelt engine controls

Maintenance & Performance:
Engines last serviced - Spring 2023 (less than 20 hrs use since)
Serviced by Finnings Caterpillar since new
Engine oil coolers stripped and cleaned with new seals November 2024
Custom-made stainless steel injection elbows fitted on both engines December 2024
Main engine exhausts replaced December 2024
Cruising speed 8kts
Diesel tanks drained and cleaned 2023
Extensive selection of engine, generator and general spares aboard along with tool kit

Generator
Onan 9.5kw marine diesel generator
1500RPM, 50Hz
Dedicated battery for starting
Dedicated Racor fuel filter
Vernay gas/water separator, silent running exhaust system
New exhaust and cooling water pipes fitted December 2024

Propulsion & Steering:
Stainless steel prop shafts with Tides Marine Sure Seal shaft seal
Spurs rope cutters
4 Blade bronze foil series high speed prop
Dual station hydraulic steering system
New drag link end fittings installed December 2024
Rudder Angle Gauge - VDO Gauge and Sender System

Bow Thruster:
American Bow Thruster Company hydraulic bow thruster
Dual 4 blade bronze props
Dual joystick control stations.
Hydraulic cooling pump and coolers stripped and serviced November 2024

Stabiliser System:
Trac stabiliser system
Factory installed
Hydraulic motor driven 6 sqft stabiliser fins.
Trac engineers attended vessel, stripped and serviced stabiliser system with new seals fitted November 2024

Autopilot:
Raymarine ST6001 control heads at both helm stations
Raymarine SmartPilot course computer
Raymarine hydraulic drive system, connected direct to quadrant.

Trim Tabs:
Bennet Trim Tabs
Dual control station
Tab position indicator displays at both stations

ELECTRICAL SYSTEMS

Voltage systems:
24VDC onboard power system - Engine systems only
12VDC onboard power system
230VAC shore power system

Shore Power:
Factory installed, hardwired system
Extension lead to connect to shore supply
Connection sockets at forward and aft ends of boat
Zinc Saver II Galvanic Isolator
RCD protected system with polarity indicator
3 Pin UK sockets, battery charger, water heater, washing machine

Battery Banks:
Engine Battery
Domestic Battery
Generator Battery
Electronics Battery

Alternator:
Independent Alternators on each engine
Adverc Smart Alternator controller

Battery Charger:
Battery Charger 1 - Mastervolt Mass 12/80, 230VAC-12VDC, 80amp
Battery Charger 2 - Mastervolt Mass 12/30, 230VAC-12VDC, 30amp

Invertor:
Victron Energy Blue Power Phoenix Invertor
12VDC - 230VAC, 350w
Not currently connected

Battery Monitoring:
Mastervolt Power Control System Panel - Battery status indicator and remote control of battery charger

Search Light:
Jabsco 225SLRC
Mounted on mast with remote control in wheelhouse

Windscreen Wipers:
Wipers for 3 forward facing windscreens
Pantograph arm wipers with variable speed
Freshwater screen wash system for all screens fitted with wipers

General:
Sonic Antifouling - SoniHull sonic antifouling system, transducers forward and aft
CCTV - Engine space CCTV camera, displaying on Raymarine G-series system
12VDC horn
12VDC auxiliary power socket in lazarette locker
12VDC charging sockets in port cabin

PLUMBING

Fresh Water:
Pressurised hot and cold water system
Mixer tap in galley
Mixer tap in forward and aft heads
Dedicated shower fittings in forward and aft heads
Hot and cold water deck shower
Hot water from engine fed calorifier with 240V immersion heater.
Pressure pump stripped and serviced, painted and re-fitted November 2025

Black Water:
Single holding tank
Plumbed for use from both heads.
Macerator pump to discharge overboard
Deck suction outlet from tank

Bilge Pumps:
Manual bilge pump - - Whale Gusher 10 MK3
Electric Bilge Pump - 3 off Rule Mate 2000GPH units in each bilge compartment
with manual and auto switching.
Indicator lights to show when electric pumps are in operation

Deck Wash:
Salt water system
Outlet on foredeck

TANKAGE

Fuel:
Extended capacity fuel tanks over standard specifications
Two tanks of approximately 1350ltr capacity
Total approximate capacity 2700ltr

Fresh Water:
Stainless steel Fresh water tank.
Approximate total capacity 1045ltr

Calorifier:
Seaward insulated tank
Heated by engine cooling water and 230VAC immersion heater
Approximate capacity 75ltr

Black Water:
Single holding tank.
Approximate capacity 300ltrs

Tank Monitoring:
Computank display for fuel and water tanks

NAVIGATION & COMMUNICATION EQUIPMENT

Flybridge:
Depth - Raymarine ST60
Speed/Log - Raymarine ST60
Wind - Raymarine ST60
Plotter/Radar - Raymarine G-Series system display with control pad
Radar Scanner - Raymarine 4kw Open Array HD radar scanner, mounted on mast

Wheelhouse:
Depth - Raymarine ST60
Speed/Log - Raymarine ST60
Wind - Raymarine ST60
Plotter/Radar - Raymarine G-Series system with control pad

Communications Equipment:
VHF - Raymarine Ray430 GMDSS VHF radio system with handsets at both helm
Stations.
Handheld VHF - Cobra Marine HH350 Floating
Loud Hailer - Raymarine system with control handsets at both helm stations
Navtex - ICS Nav6

DOMESTIC EQUIPMENT

Galley:
Cooker - Force 10 Galley Range, gas with burners, grill and oven
Fridge - Built in front opening Waeco Coolmatic fridge
Freezer 1 - Built in front opening Waeco, located within port cabin
Freezer 2 - Top loading freezer beneath port cabin bunk
Microwave - Panasonic Dimension 4 Turbo Bake
Domestic sized double stainless steel sink
Hot and cold water mixer tap
Seawater pump at galley sink
Rubbish compactor - Broan front loading system
Galley extractor fan

Heads:
Electric marine toilets - Tecma 'silence plus' electric heads units x2
Dedicated shower fittings x2
Wash hand basin x 2
Mixer tap x2

Heating:
Eberspacher Hydronic system with Dual burner units
Eberspacher 5kw diesel fired hydronic heater
Eberspacher 10kw diesel fired hydronic heater
Radiators fitted in all cabins and saloon
Towel rails fitted in both heads

Laundry:
Washing Machine - Bosch Maxx 1200 (230VAC)
Dryer - Bosch Clasixx condensing dryer (230VAC)

Entertainment:
Satellite TV System - Tracvision 4 System. Two decoder boxes fitted for use with Sky cards.
Television in the aft face of the overhead galley unit
Television mounted on the bulkhead in State room aft cabin.
Stereo System - Sony head unit, FM/AM radio with cd, external multi disc changer. System fitted with Sony marine speakers.

Lighting:
Overhead lighting throughout interior
Reading lights in saloon
Reading lights in way of bunks in cabins
Engine space lighting, 12VDC and 230VAC
On deck courtesy lighting

ACCOMMODATION

Summary of Accommodation:
Twin cabin forward
Single cabin port forward.
Forward heads
Galley

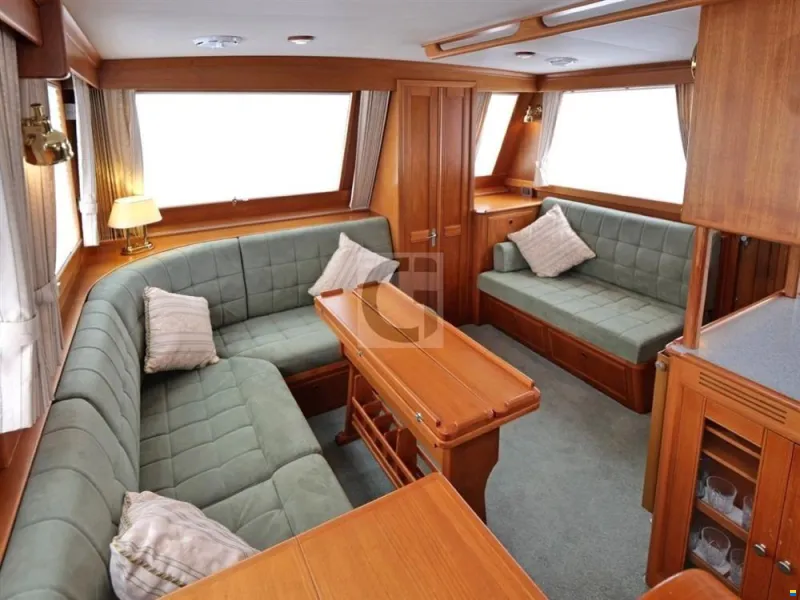

Deck Saloon
Master double cabin aft with en-suite heads

Accommodation Finish:
Joinery work of teak veneered plywood with solid teak trims and fittings
All joinery work finished in a satin varnish.
Teak strip planking to finish hull sides where visible
Teak parquet style flooring throughout
Corrian worktop surface in galley
Corrian countertop surfaces in heads
Cloth headlining with varnished teak trims
Curtains or blinds fitted for all portlights and windows
Blinds and insect screens fitted to all deck hatches

Description of Accommodation from Forward:

Forward Cabin:
Twin V-berth forward
Access to chain locker via hatch forward of berth
Storage drawers below both berths at aft end
Radiator concealed behind louver doors at aft end of bunk centrally
Large space aft of bunks with full standing room
Hanging locker outboard to starboard side aft
Counter tops above both lockers
Drying hanging locker with in-built radiator outboard to port aft
Full length mirror mounted on aft bulkhead to port
Large storage locker beneath cabin sole

Forward Passageway:
Providing access from wheelhouse forward.
4 steps down from saloon level
Access to forward cabin, port cabin and forward heads

Forward Heads:
Accessed from starboard side of forward passageway
Forward facing, electric flush marine toilet located inboard, to aft end of compartment
Heated towel fitted inboard of toilet
Counter top outboard of toilet with corrian worktop and inset wash hand basin forward
Vanity lockers below counter top and outboard
Dedicated shower stall space forward with folding plastic screen and teak grating seat outboard

Port Cabin:
Accessed to port side of forward passageway
Utility/skippers cabin with folding single thwartships berth to port
Berth folds up to provide worktop surface with Freezer 2 built-in beneath outboard end
Selection of lockers beneath berth
Countertop forward outboard with drawer and locker beneath
Storage unit forward with freezer 1 built in outboard and washing machine and tumble dryer built-in inboard

Galley:
U shaped galley to port of helm station
Countertop space forward, running to windscreen with folding worktop extension aft.
Force 10 Galley Range, gas with 4 burners, grill and oven located forward outboard
Domestic size stainless steel sink aft of cooker
Worktop in-fill sections to cover both cooker and sink
Worktop wrapping around and inboard aft
Front loading fridge built in beneath worktop aft
Selection of storage lockers beneath worktop
Overhead fold down lockers above worktop with crockery storage units.
Microwave built into aft inboard section of overhead storage unit
Built in rubbish compactor beneath worktop aft, in way of port doorway

Internal Helm Station:
Located opposite galley to starboard.
Starboard door to access side decks immediately outboard
Large diameter teak wheel
Dedicated helms man seat with backrest
Engine displays immediate forward of wheel with controls outboard to starboard
Raymarine navigations instruments mounted within instrument cluster forward
Switch panel above helm station overhead
230VDC switch panel outboard of helm station to starboard
Main switch panel inboard of helm station

Saloon:
Spanning full width of wheelhouse aft end
Port door to access port side deck outboard forward to port.
L-shaped settee to starboard
Bench settee to port
Storage lockers beneath settee bases, all accessible without lifting base cushions
Fixed saloon table with double folding leaves positioned inboard of starboard settee
Storage locker and counter top unit forward to starboard with lifting top providing access to bottle storage
Counter top and storage unit aft of port settee

Stateroom Aft Cabin:
Accessed from saloon via companionway steps.
Folding doors to isolate cabin from saloon
Full size double berth offset to starboard aft
Beside counters outboard of bunk to port and starboard with drawer storage beneath
Countertop running length of bunk forward to starboard with storage drawers beneath
Dressing table outboard to port with table top lifting to provide access to vanity locker
Storage drawers beneath countertop forward to port

Aft Heads:
Ensuite for aft cabin, located to port side of cabin
Forward facing, electric flush marine toilet located inboard at aft end of compartment
Corrian countertop spanning width of compartment forward with inset wash hand basin
Towel rail mounted above countertop outboard
Selection of storage lockers below countertop and outboard

Aft Shower Room:
Located to starboard side of aft cabin, forward.
Full standing room shower
Storage lockers outboard

DECK EQUIPMENT

Rig:
Alloy mast and boom derick
Spars finished in white paint
Stainless steel standing rigging to support

Deck Crane:
Marquip MARQ-8 single boom crane
Electro hydraulically operated with manual slew.

General:
Double bow roller on short bow sprit, anchor self-stowing in starboard roller
Anchor windlass mounted at aft section of bow sprit raised above deck level with foot buttons below.
Stainless steel 'Panama' style fairleads fitted through bulwark forward, midships and aft
Stainless steel mooring cleats mounted on bulwarks forward, midships and aft, 14 mooring cleats in total
Walk around decks running full length of boat with short section of foredeck and aft deck.
GRP moulded deck storage box with teak deck lid mounted at forward end of coachroof superstructure, stainless steel arms outboard to create fender storage loop to port and starboard sides of storage box.
Stainless steel grabrails running along outboard edges of coachroof superstructure forward and aft
GRP moulded deck storage boxes running along aft end of aft coachroof superstructure, 3 independently opening teak lids
RIB Tender stowing on deck chocks to port side of aft coachroof.
Marquip deck crane mounted at forward end of aft coachroof
Lazzarette locker beneath aft deck with two opening deck hatches providing access.
Teak grating floor to locker space which also provides access to steering gear
Teak grating to form transom mounted bathing platform
Fold down swimming ladder
Access to flying bridge via steps to port side of aft coachroof
Fender baskets mounted on guard rail on steps to flybridge and on starboard side of flybridge aft
Flybridge Helm Seat - Stidd Admiral seat.

Canvas Work:
Spray Dodgers - On flying bridge and around after end
Seating Covers - For all seating on flying bridge.
Table Cover
Flybridge Cover
RIB Cover
Deck Crane Cover
Windscreen cover
Windlass cover
Deck hatch covers x4
All canvas work aboard in manufactured in green Sunbrella fabric

Anchoring & Mooring:
Main Anchor - Spade with stainless steel chain rode.
Kedge Anchors - 1 off Bruce. 1 off Danforth
Anchor Windlass - Lofrans Tigress 12VDC, 1500w. With chain gypsy and warping drum. Foot button switch controls on foredeck
Warps - Selection
Fenders - Selection

Tender:
Tender - SUR Marine 310 Luxury RIB tender. Bench seat aft with steering console offset to starboard. (2018)
Outboard - Yamaha 6hp 4-stoke. Manual/electric start, power trim and tilt, 3 blade stainless steel prop (2018)
Deck Crane - Marquip deck crane for launching and recovery of RIB

SAFETY EQUIPMENT:

General note on safety equipment: Any safety equipment such as life rafts, Epirbs, fire extinguishers and flares etc. are usually personal to the current owner(s) and if being left on-board as part of the sale of a used vessel may require routine servicing, replacement, or changing to meet a new owners specific needs.

Navigation Lights:
Masthead anchor light
Steaming light
Navigation lights

Life saving:
Carbon Monoxide Detector - Sea-Fire Marine 60-541, units fitted in each cabin.
Engine Space Fire Extinguisher System
Liferaft - Viking 6 person cannister raft. New in June 2023
Radar Reflector - Sea-Me active radar reflector/detector


VIEWING ARRANGEMENTS
Lying, Argyll, Scotland

Available to view strictly by appointment

Office Hours Mon- Fri 0900 - 17.00
Saturday by prior appointment

For more information or to arrange a viewing please contact us.

Please Note: Due to the varying locations of our yachts, your travel time and the distances that may be involved, we recommend that you only make arrangements to view if you are actively considering purchase.

Lead Broker: Mark Cameron
Tel: Mobile: +44 (0)7988 763254
Email: ####@grabauinternational.com
